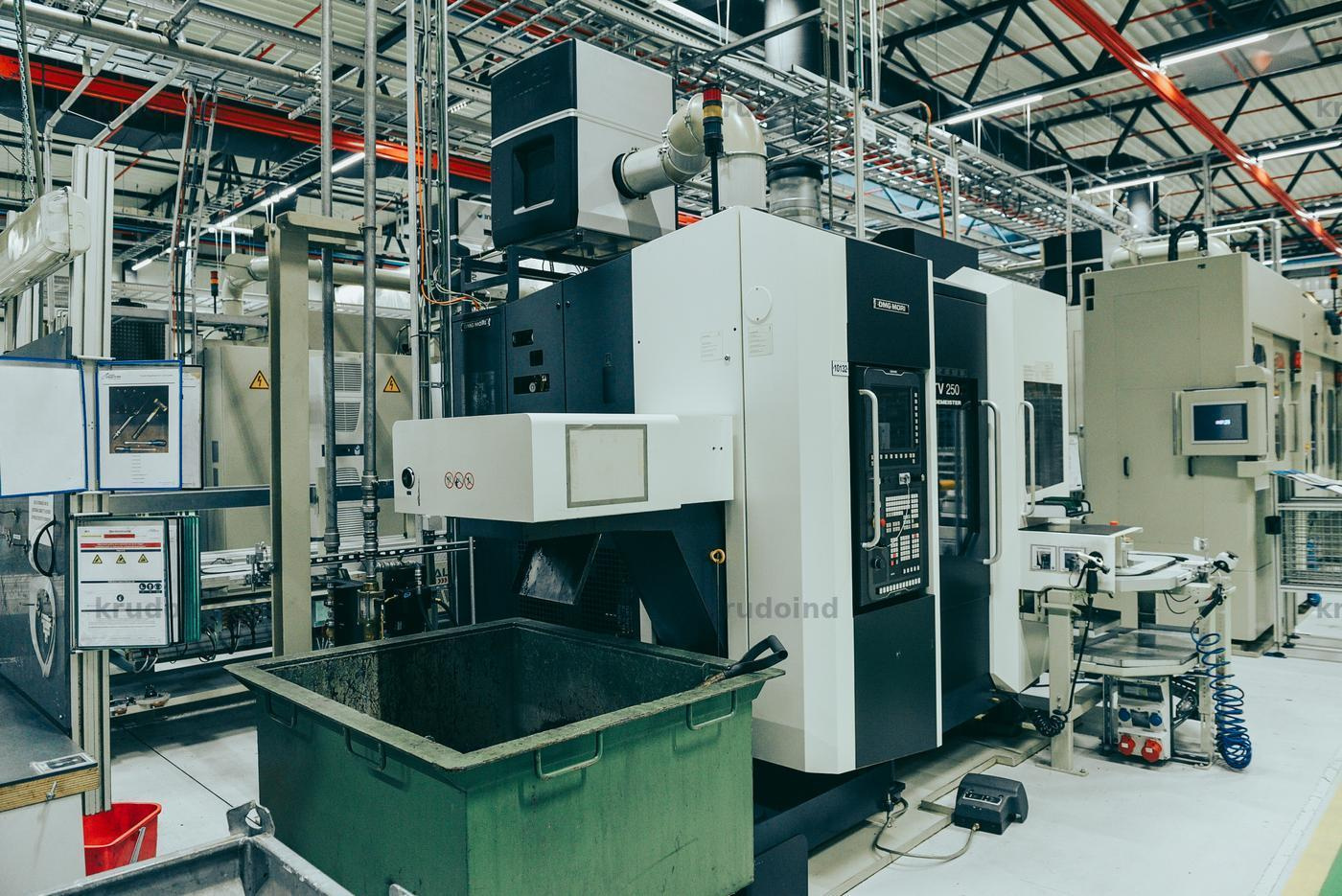

Vertical Turning Machine - DMG MORI CTV 250
CTV 250 CNC vertical turning centre right hand version with control SIEMENS SINUMERIK 840D SLIMline. Compact, fast, flexible and highly productive vertical lathe.
- All axes X, Z, C are arranged at the top
- Large Z-axis stroke - thus machining of short and long workpieces with little set-up, Diameter up to 220 mm
- Control panel integrated into the machine - little space requiredAC main drive 25/32 kW,
- (100%/40% ED), 5000 min־¹,
- 280/360 Nm (100%/40% ED)
- Solid clamping device
- 12 station turret, tool fitting Acc. to DIN 69880, shank Ø40 mm (1.57 in)
- Chip conveyor
- 4 colour signal LAMP
- C-Axis, driven tools on turret VDI 40
- Driven tools on every tool station
- In process measuring device for work pieces, make Renishaw, mounted at the loading-/unloading station, complete including probe, hydraulically operated chute and electrical connections, measuring accuracy 10 μm (0.00039 inch)
- Tool breakage monitoring system 4 11.300,00 45.200,00
- Make artis, Type CTM
- Connection for central coolant system with lifting pump 8bar//40l/min.
- Air sensoring for clampng and lubrication of clampng device.
- Inreface for post process measuring.
- Booster pump 8bar // 40l /min for central coolant connection with pump frame
- Air system control and clamping device lubrication consisting of:
- Air system control controllable with one push
- <3bar, Samsomatic
- 2-way rotary distributor for two media passages, switchable
- Oil lubrication, separate SKF oil reservoir
- Interface for post process measuring device according to GILDEMEISTER standard. Interface parallel / BCD code
- Euchner Key System EKS for slim-line control panels on CTV machines
- Protection level selection and key identification including key switch for set-up mode. EKS connection via Profibus.
- Electrical feed of the machine without N Generate 220V via additional transformer in the control cabinet EMC filter without N
- Flat travel: 700 mm
- Longitudinal travel: 300 mm
- Chuck diameter max. 250 mm
Feed and rapid trae:
- Rapid speed in X: 60 m/min
- Rapid passage in Z: 40 m/min
- Spindle head size: 170h 5 mm
- Spindle bore: 57 mm
- Spindle diameter in the front bearing: 120 mm
Main drive 1:
- Drive power: 25 kW
- Speed range from - to: 20- 5000 rpm
- Torque: 280 Nm
