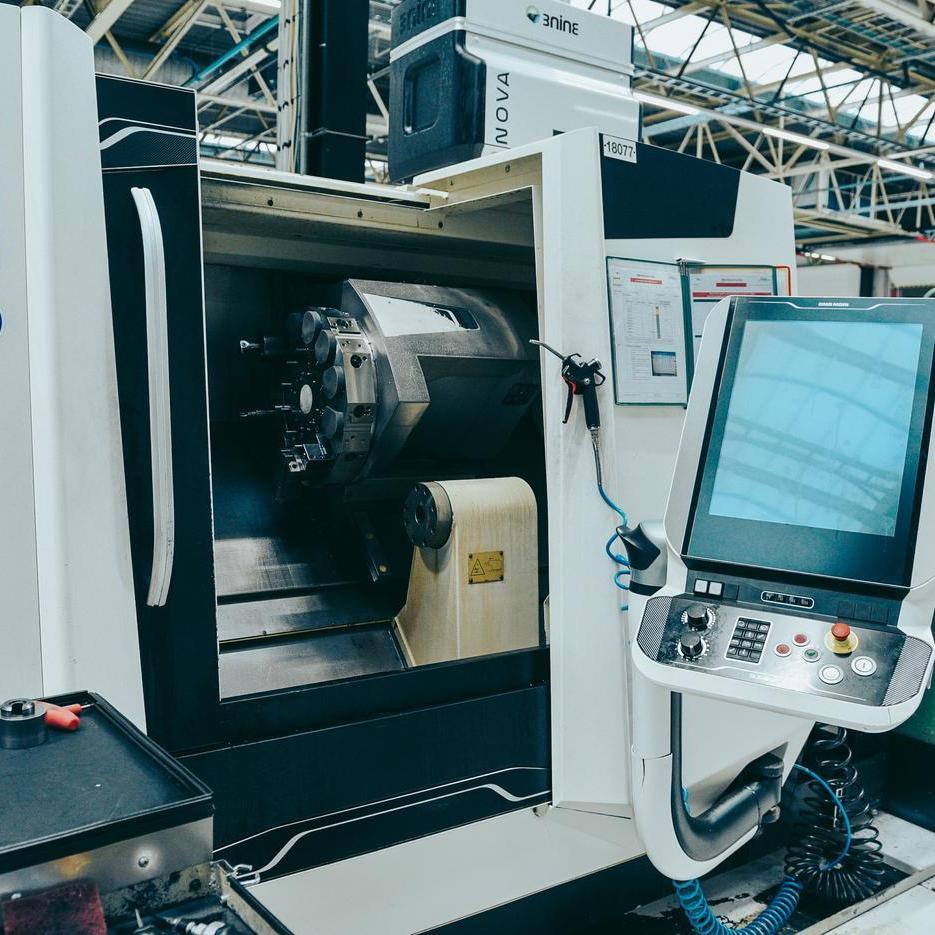

Machine Name:Universal Turning Machine
Manufacturer:DMG MORI
Model:CLX 450
Year of Manufacture:2017
Machine Id:212

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of these particular machines.

The presented specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! Buyers are invited to inspect the offered Machinery & Equipment at current location prior to purchase.


Universal Turning Machine
Universal Turning Machine
Universal Turning Machine
Universal Turning Machine
Universal Turning Machine


Working area
Swing over bed: 650 mm
Swing over cross slides: ø 465 mm
Max. turning diameter: ø 400 / ø 315* mm
Cross travel (X): 267.5 mm
Longitudinal travel (Z): 600 mm
Rapid traverse (X / Z): 30 / 30 m/min
Main Spindle
Spindle nose: A2-8
Bar capacity: Ø 80 mm
Spindle diameter in the front bearing: 130 mm
Chuck: 210** / 250** / 315**
Drive power (40/100% ED): 25.5 / 17 kW
Maximum torque (40/100% ED): 426 / 283 Nm
Maximum speed: 4000 rpm
Positioning accuracy
Acc. to ISO 230-2 in X- / Z-axes (indirect measurement system): 5 / 10 μm
Acc. to ISO 230-2 for C-axis: 20 arcsec
Number of tool stations: 12 x VDI 40/6 x BT
Of which driven tool stations: 12**
Tool station diameter: 40 mm
Max. power: 5.44 kW
Max. torque (40 % DC): 20 Nm
Max. speed: 4,000 rpm
Tailstock travel: 500 mm
Life center interface: 5 MK
Max. tailstock force: 8 kN
Ball screw X-/Z-axis (D x P): 40 x 10 mm
Machine weight 5,050 Kg
