Projects > (11) Electric Motor Production Lines > (01) Stator Line #1 > (01.13) Skew & Welding Machine

Machine Name:(01.13) Skew & Welding Machine
Manufacturer:GROB-WERKE
Model:GM5053
Year of Manufacture:2019
Location:Germany
Machine Id:577
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.

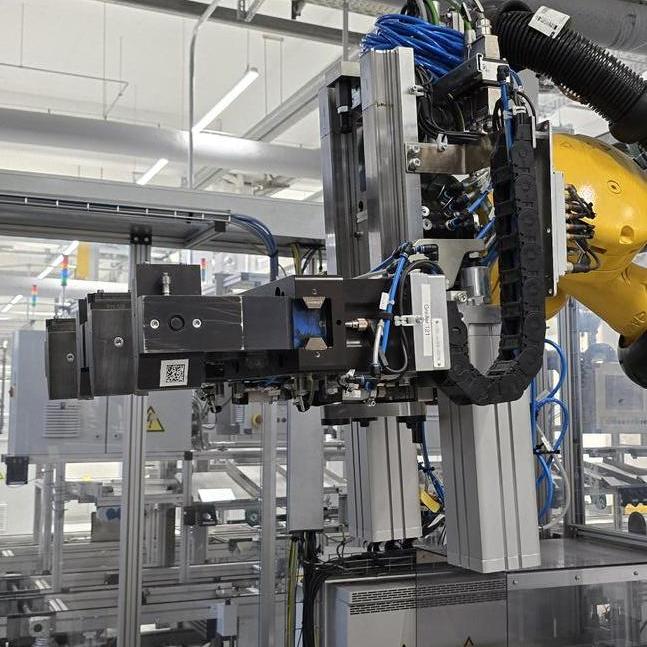

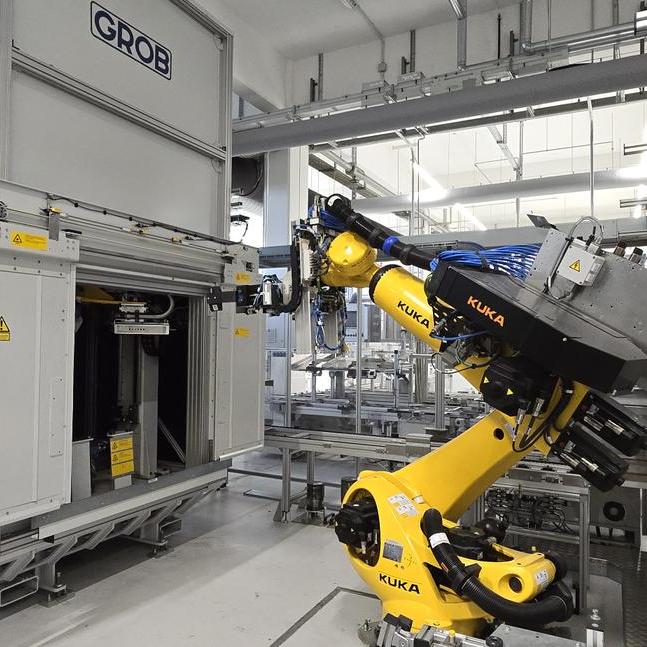

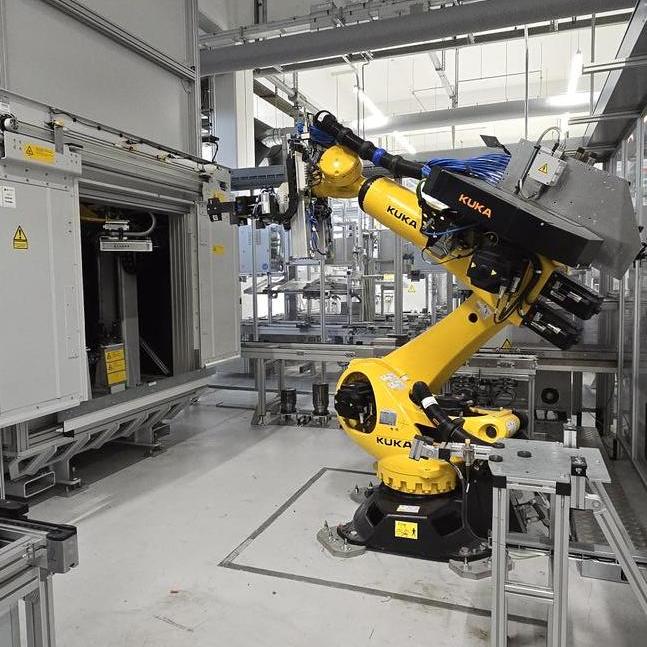

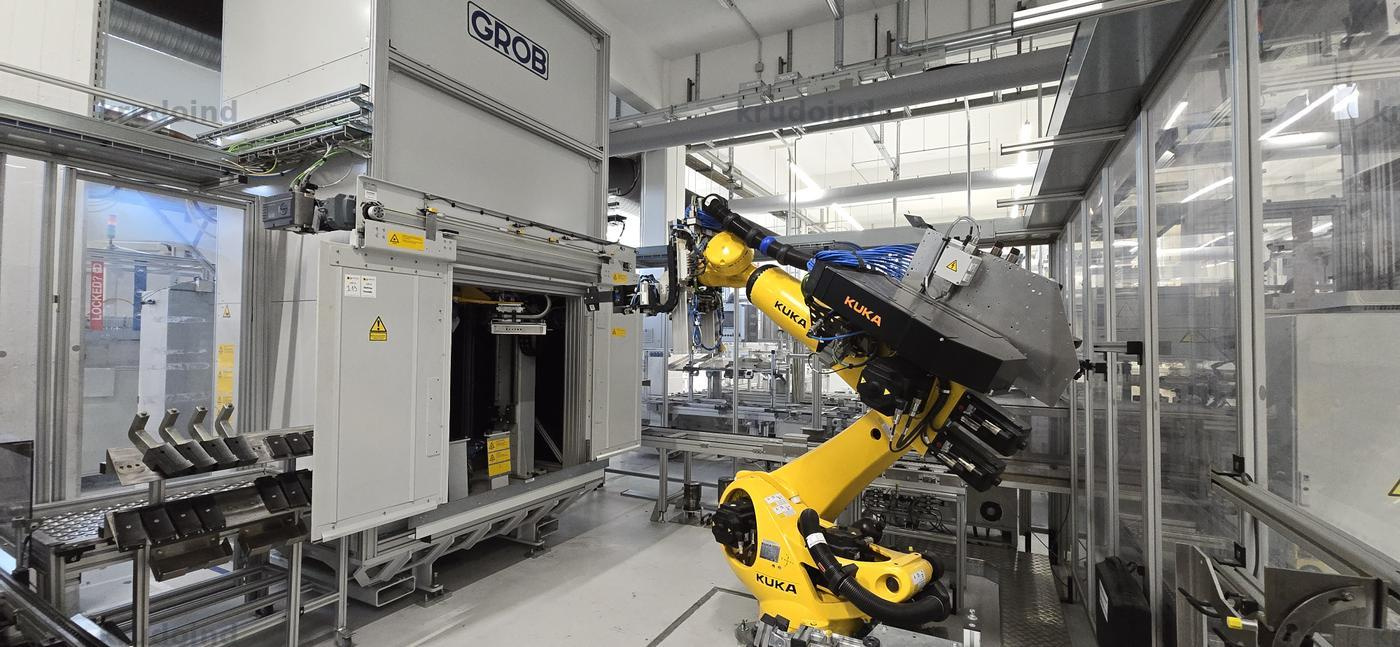

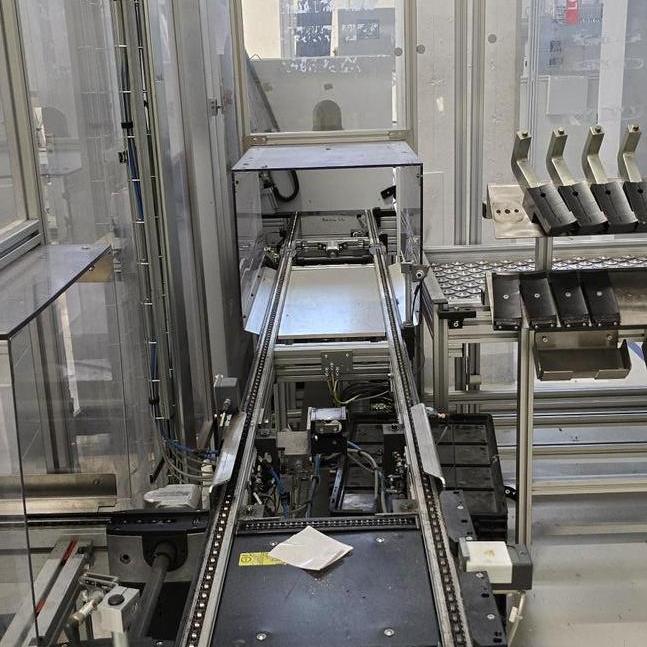

(01.13) Skew & Welding Machine
(01.13) Skew & Welding Machine
1
(01.13) Skew & Welding Machine
(01.13) Skew & Welding Machine

Description:

Technical Specifications:

  • Project Number: GM5053/01-1010
  • Power Supply: 400V AC
  • Net Shape: TN-S
  • Frequency: 50 Hz
  • Rated Current: 53.1 A
  • Back-up Fuse: 63 A
  • Short Circuit Configuration of Equipment: 50 kA
  • Connected Load: 36.6 kVA

Parts/Toolings included:

  • Kistler Axis
  • KUKA Robot, Model: KR240 R2700 Prime (YoM 2018)
  • Trumpflaser, Model: TruDisk 4002
  • TBHsuction, Model: FP213 (YoM: 2019)
