Main Category > (04.12) Magnet Assembly

Machine Name:(04.12) Magnet Assembly
Manufacturer:Procad
Model:EC013090
Year of Manufacture:2019
Location:Germany
Machine Id:605
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.

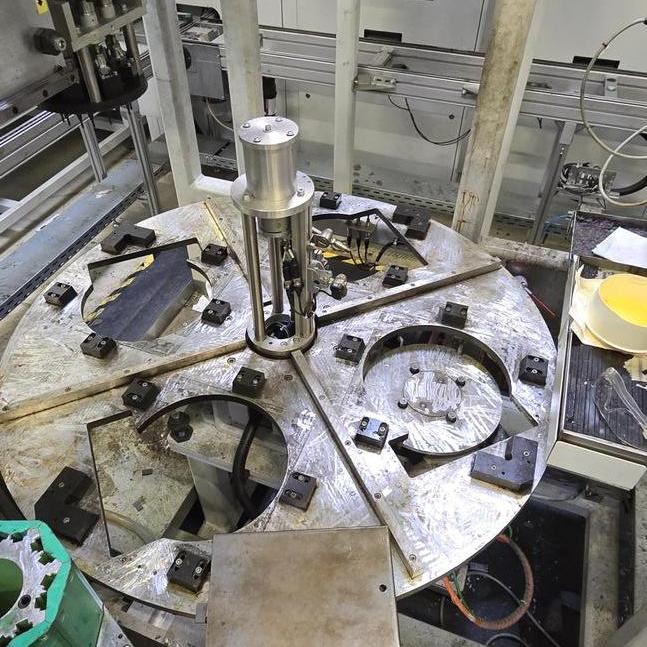

(04.12) Magnet Assembly
(04.12) Magnet Assembly
(04.12) Magnet Assembly
(04.12) Magnet Assembly
(04.12) Magnet Assembly

Description:

Parts/Tooling included:

  • Magnetic Feed
    • Type: EMSE 55.1/550
    • YoM: 2018
    • Machine No.: 816774
    • U: 230 V
    • f: 50 Hz
    • I: 4.52 A
    • fmech.: 3000 1/min
    • IP54

Click here to view 360 Tour
