Main Category > (06.06) Cooling Tunnel

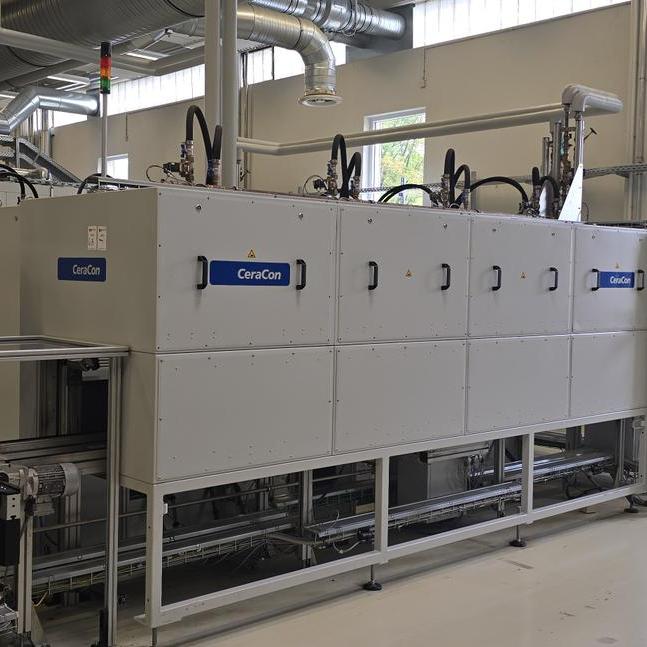

Machine Name:(06.06) Cooling Tunnel
Manufacturer:CeraCon
Model:K.05874.110
Year of Manufacture:2018
Location:Germany
Machine Id:625
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(06.06) Cooling Tunnel
(06.06) Cooling Tunnel
(06.06) Cooling Tunnel
(06.06) Cooling Tunnel
2

Description:

Technical Specifications:

  • Current: 3PH~
  • Supply Voltage: 400 V
  • Frequency: 50 Hz
  • Rated Current: 36.2 A
  • Control Voltage with/without Transformer: 24V
  • Current Rating of Fuse: 50A
  • Station No.: K.05874.110

Parts/Tooling included:

  • Cooling Water System, Model: TPW80-00-ELD, YoM: 2018

Click here to view 360 Tour

Request an Inspection
Get a Quote
