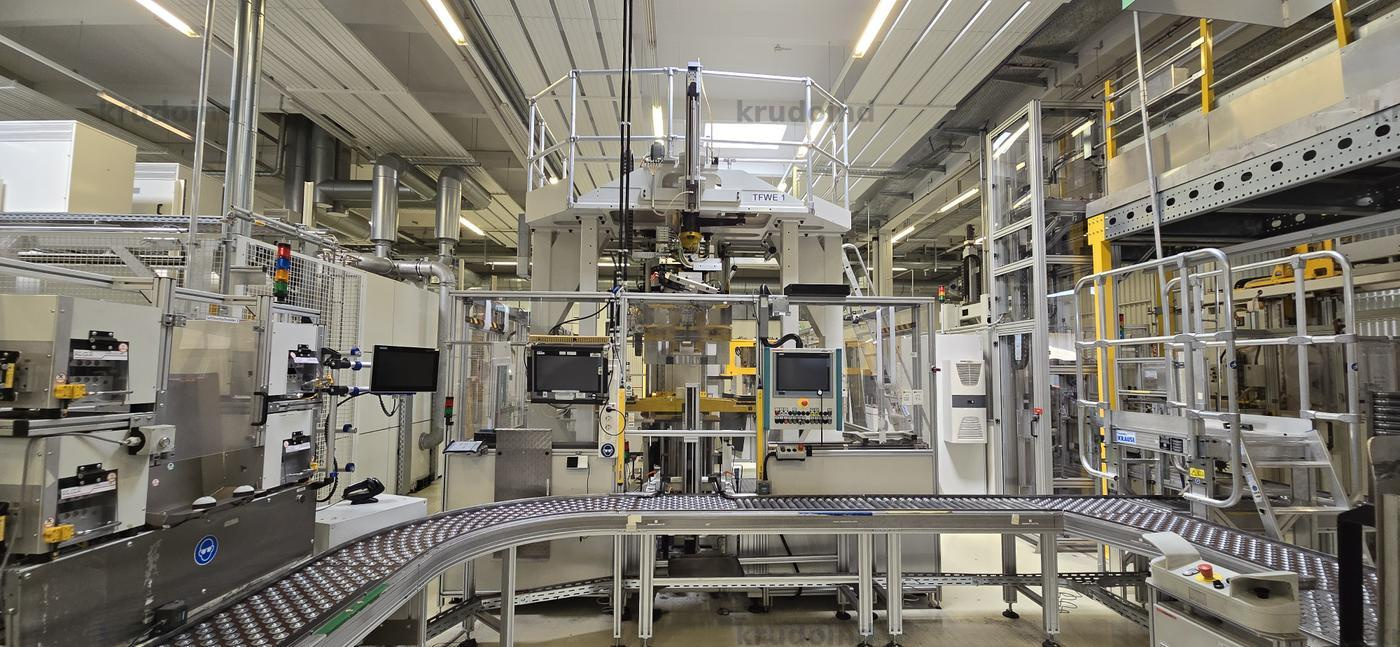

Machine Name:(07.04) Winding - Inserting Machine
Manufacturer:Schaeffler ELMOTEC STATOMAT
Model:TFWE/1/250-A
Year of Manufacture:2019
Location:Germany
Machine Id:630
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(07.04) Winding - Inserting Machine
(07.04) Winding - Inserting Machine
1
1
1

Description:

Technical Specifications:

  • Serial No.: 11 36 12 01 26
  • Total Weight: 8500 kg
  • Admiss. Operating Speed: On Tool
  • Admiss. Operating Pressure: 6.0 bar
  • Voltage: 400 V
  • Electricity Supply: 22 kVA
  • Frequency: 50 Hz

Parts/Tooling included:

  • 2x Linear Axes

Click here to view 360 Tour

Request an Inspection
Get a Quote

Promote your used machinery online, find buyers with us.

Sell Your Machine

Related to: (07.04) Winding - Inserting Machine
