Machine Name:(11.12) Preparation of Outer Housing
Manufacturer:Thyssenkrupp System Engineering
Model:EC021010
Year of Manufacture:2019
Location:Germany
Machine Id:670
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.

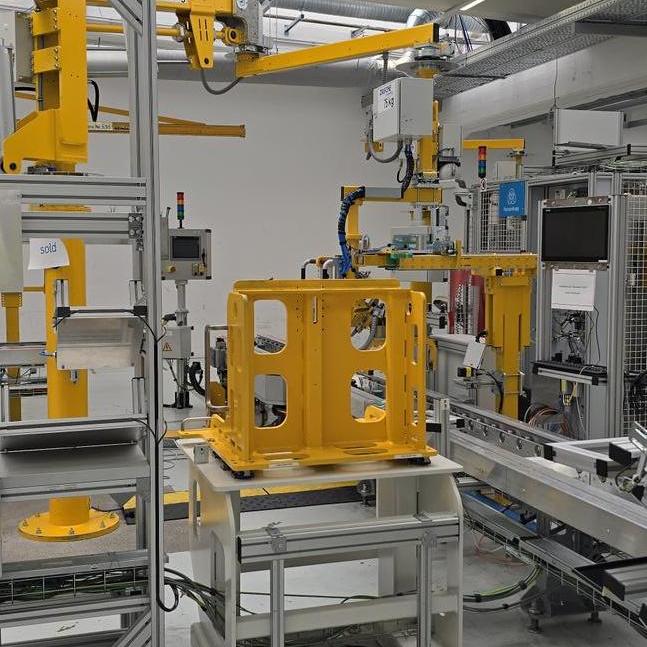

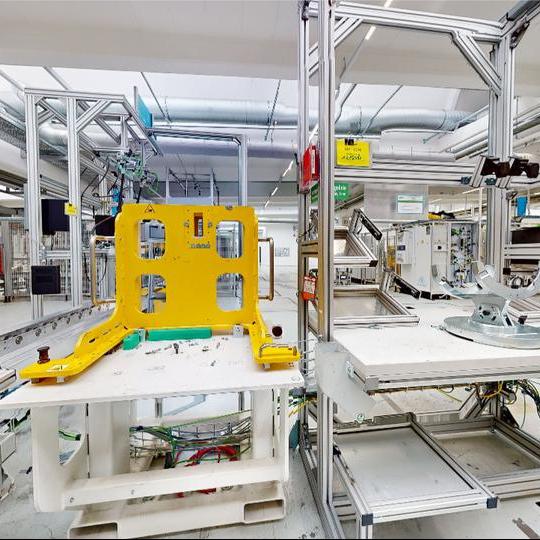

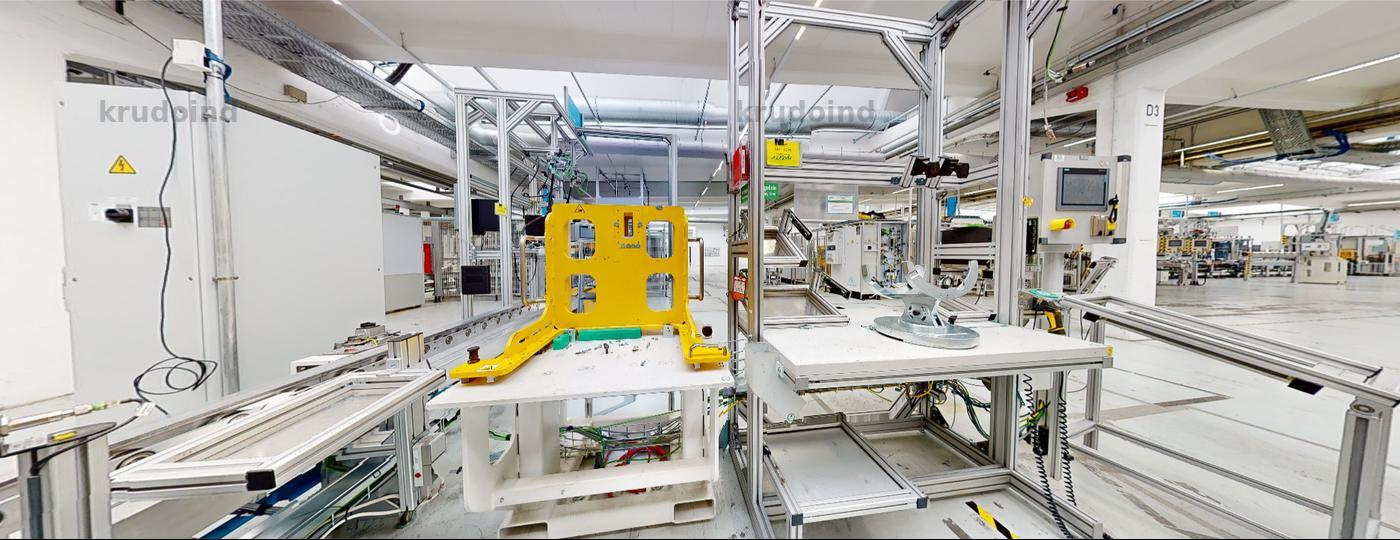

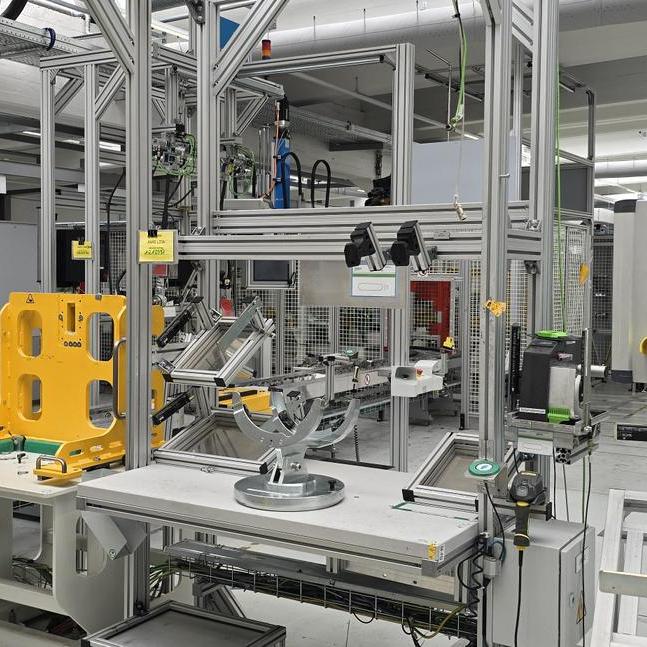

(11.12) Preparation of Outer Housing
(11.12) Preparation of Outer Housing
(11.12) Preparation of Outer Housing
(11.12) Preparation of Outer Housing
(11.12) Preparation of Outer Housing

Description:

Parts/Tooling included:

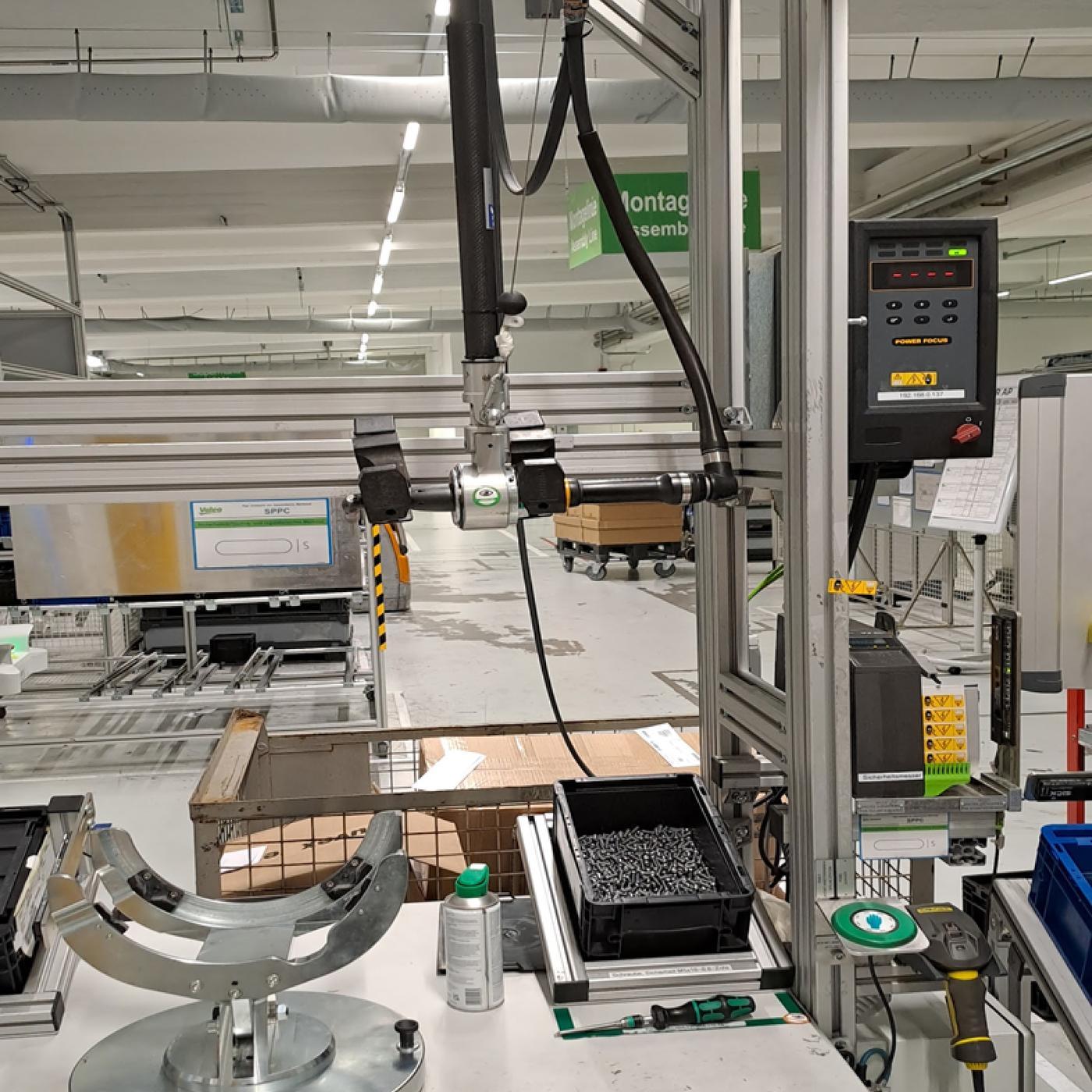

  • Screwing station for resolver stator
  • Automatic screwing stations Atlas Copco
  • Pressing equipment for orientation pin
  • Label printer

Click here to view 360 Tour
