Machine Name:(10.07) Assembly of Cover Terminal Box
Manufacturer:Thyssenkrupp System Engineering
Model:EC011060
Year of Manufacture:2018
Location:Germany
Machine Id:660
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.

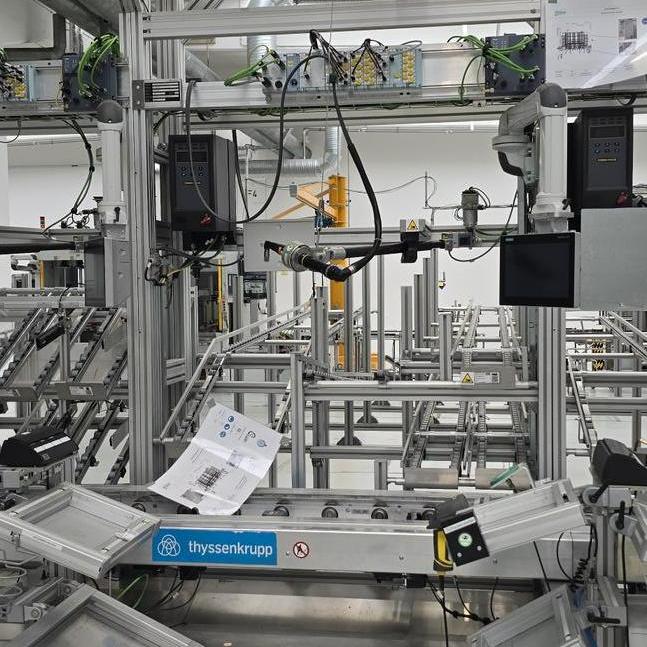

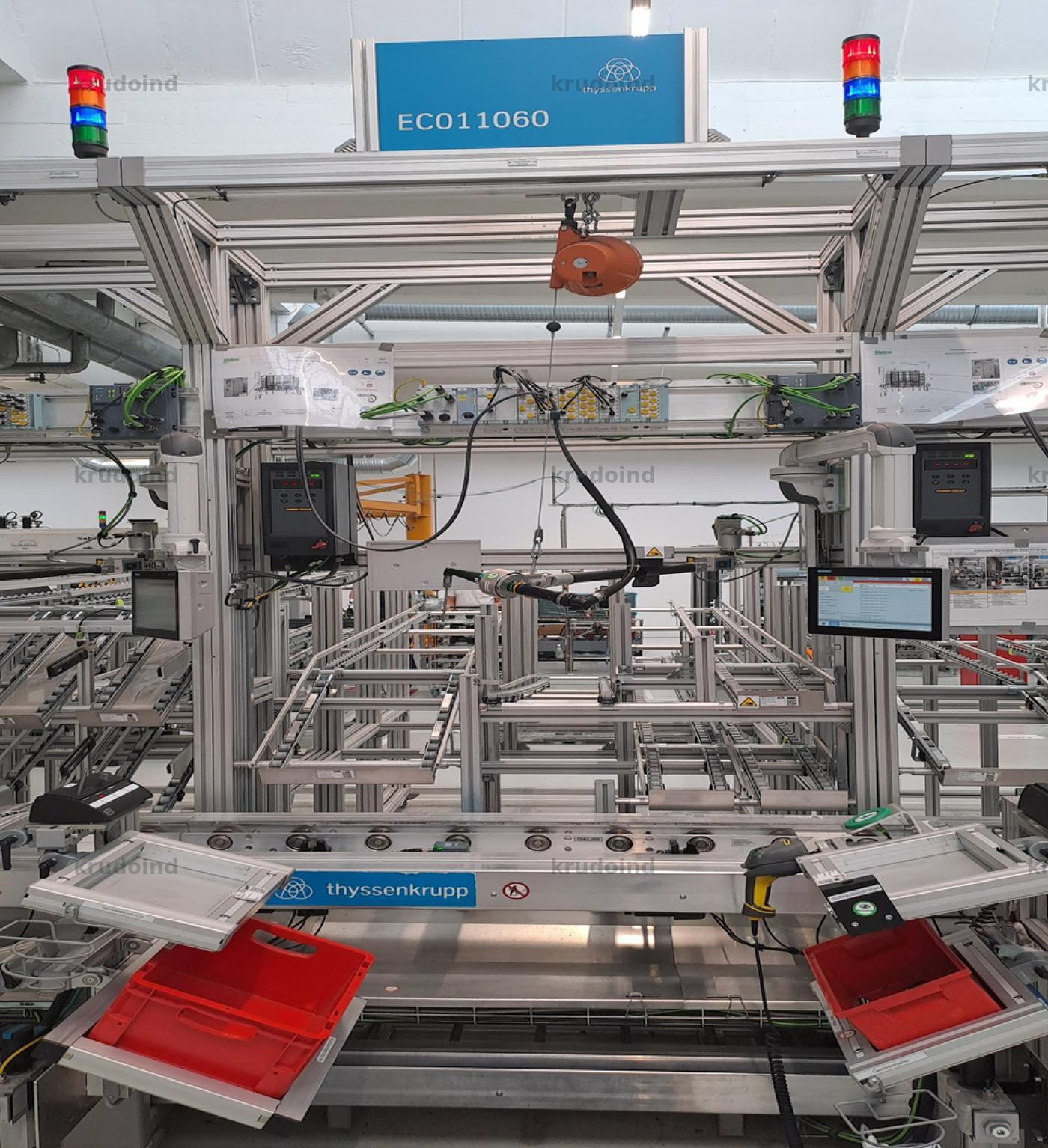

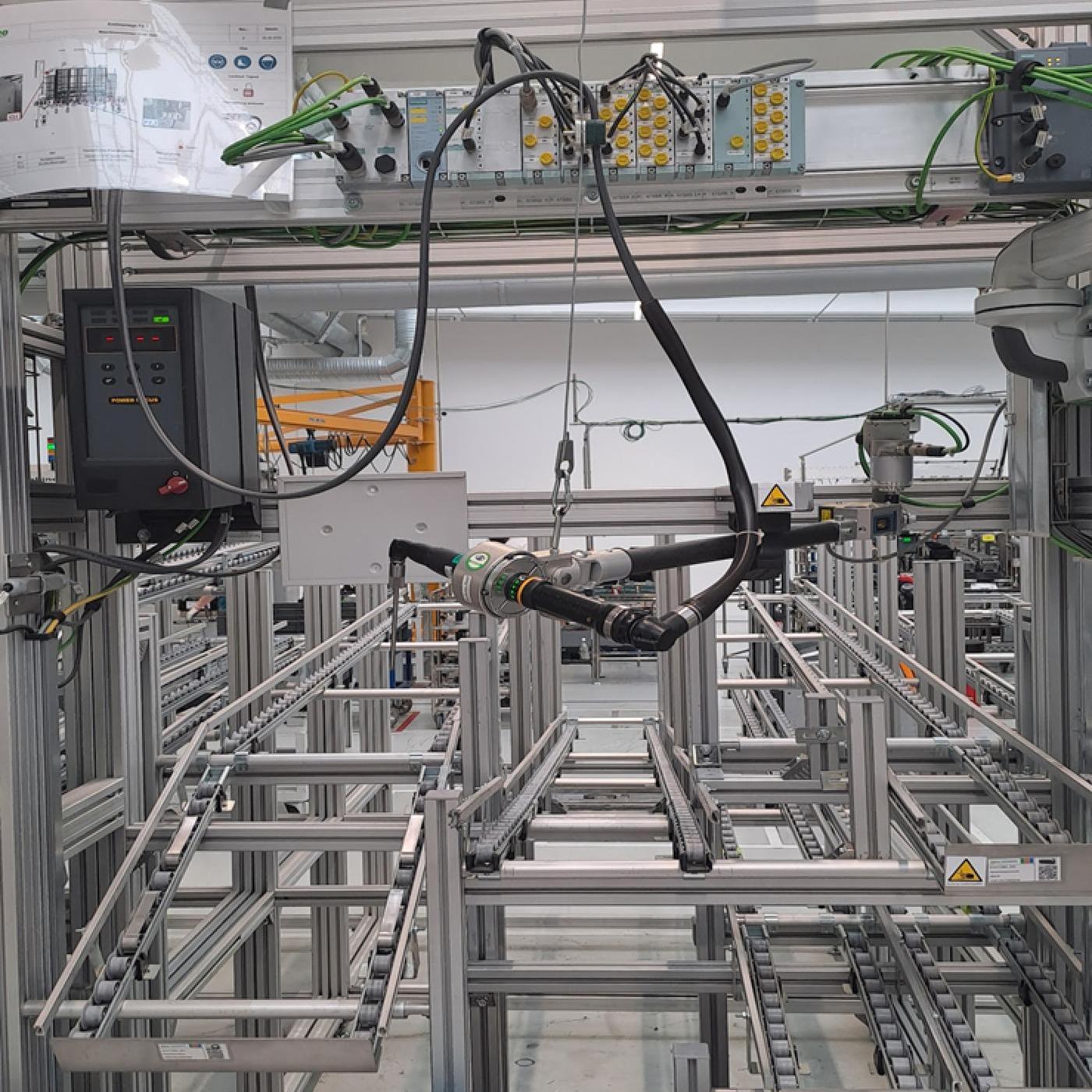

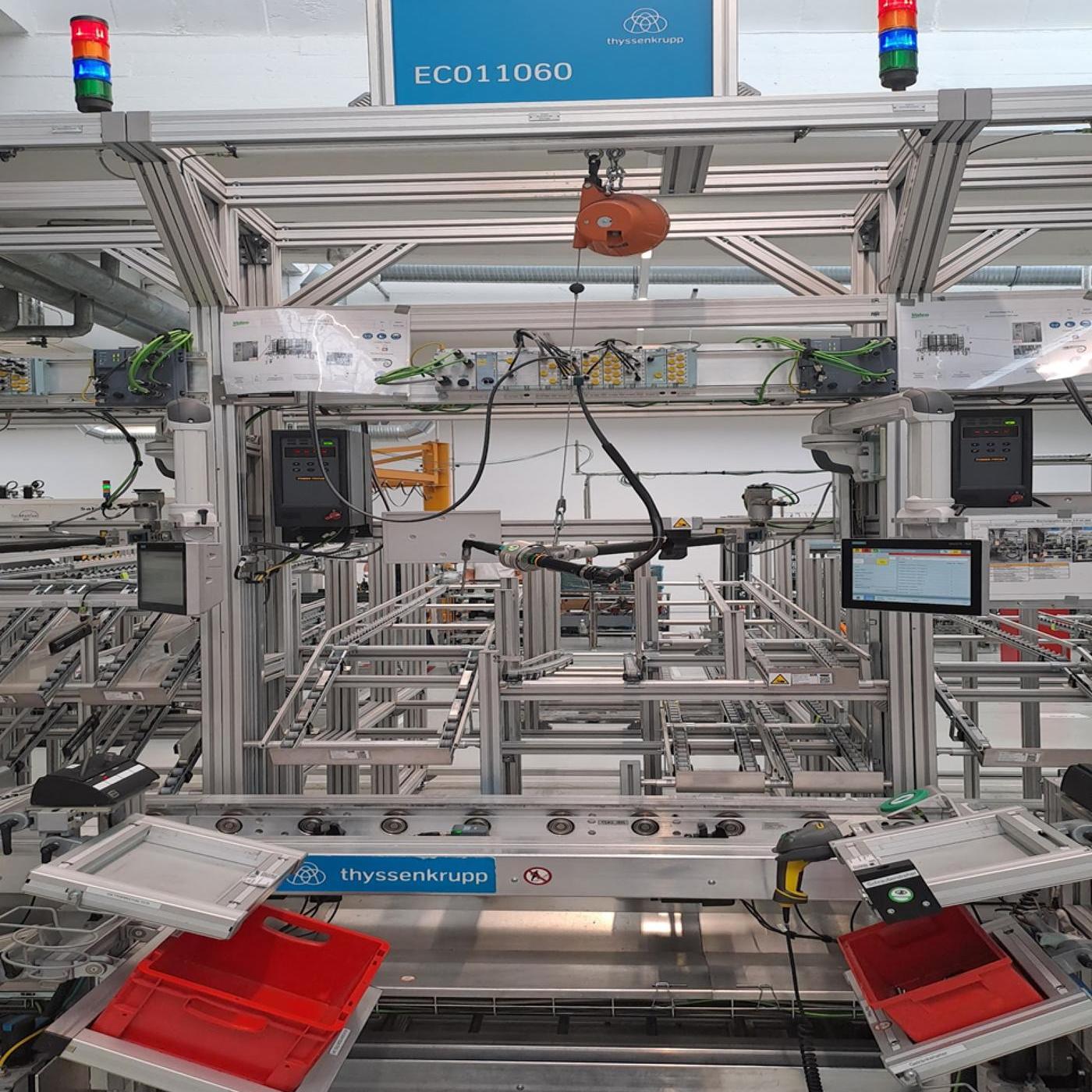

(10.07) Assembly of Cover Terminal Box
(10.07) Assembly of Cover Terminal Box
(10.07) Assembly of Cover Terminal Box
(10.07) Assembly of Cover Terminal Box

Description:

Parts/Tooling included:

  • Atlas Copco - Screwdriver ETV STR31-10-10 (2-12Nm)
  • Atlas Copco - Screwdriver station PF4000-C-PN-HW
  • Atlas Copco - Carbo arm
  • Atlas Copco - überwachte Bithalterung
