Machine Name:(10.05) Handling
Manufacturer:Thyssenkrupp System Engineering
Model:K.05868.300
Year of Manufacture:2018
Location:Germany
Machine Id:652
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(10.05) Handling
(10.05) Handling
(10.05) Handling
(10.05) Handling
(10.05) Handling

Description:

Technical Specifications:

  • Current: 3PH~
  • Supply Voltage: 400 V
  • Frequency: 50 Hz
  • Rated Current: 21.5 A
  • Control Voltage with/without Transformer: 24V
  • Current Rating of Fuse: 32 A
  • Customer Design: EC011010
  • Station No.: K.05868.360

Parts/Tooling included:

  • 2x Conveyor Lifting station

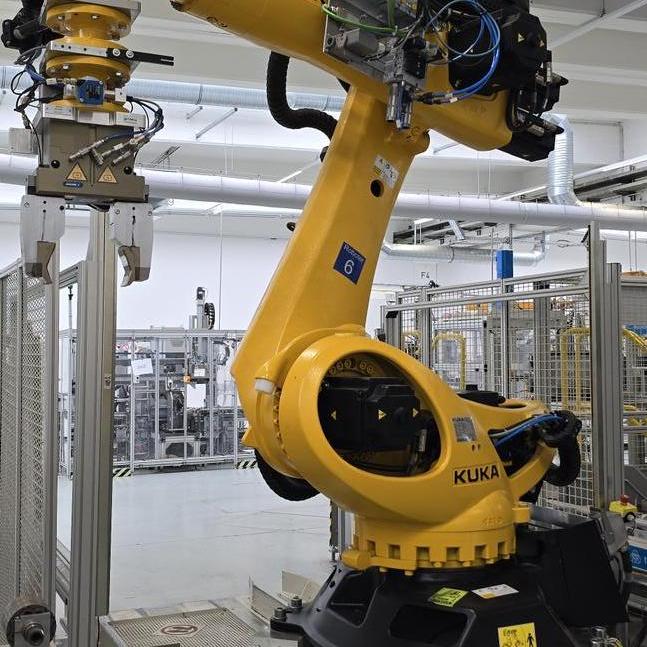

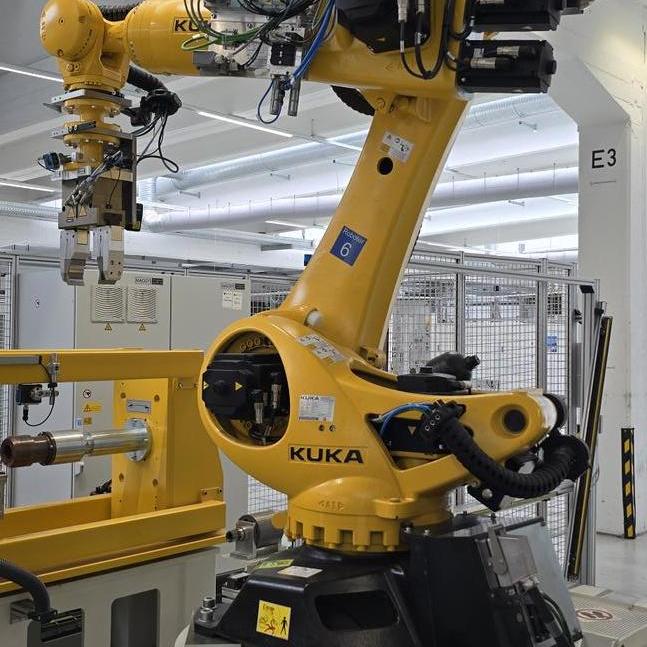

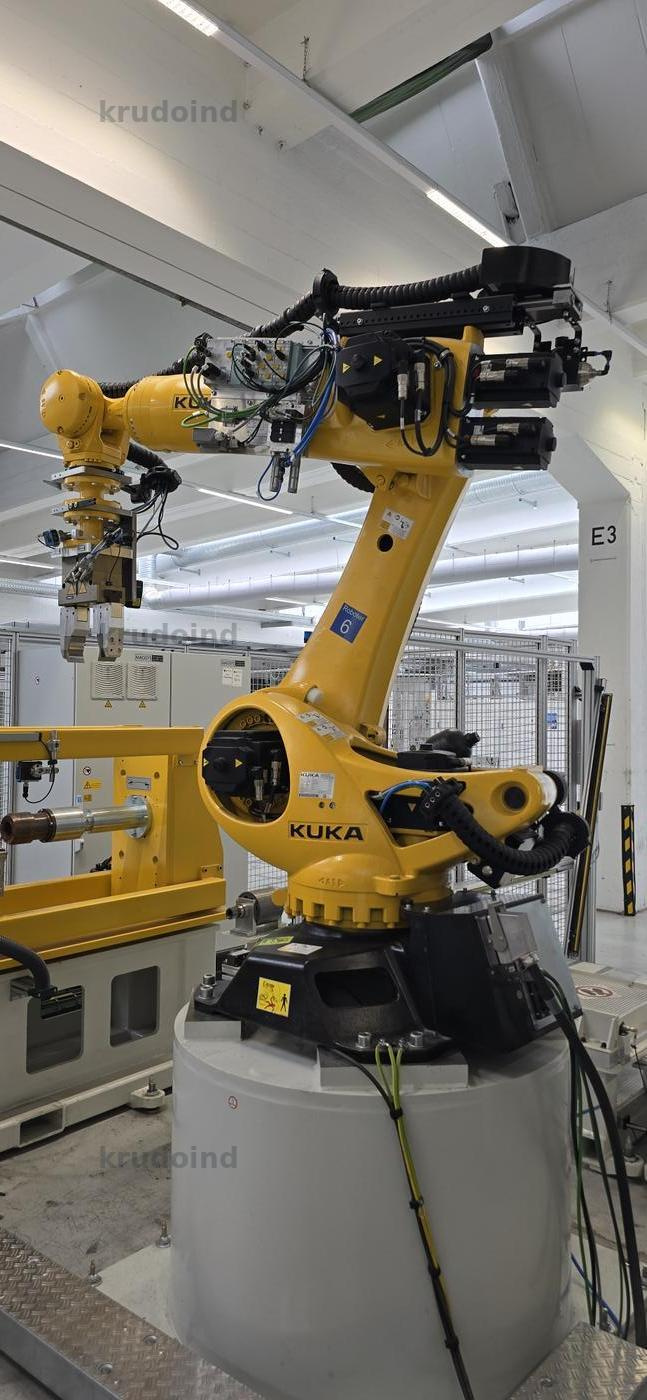

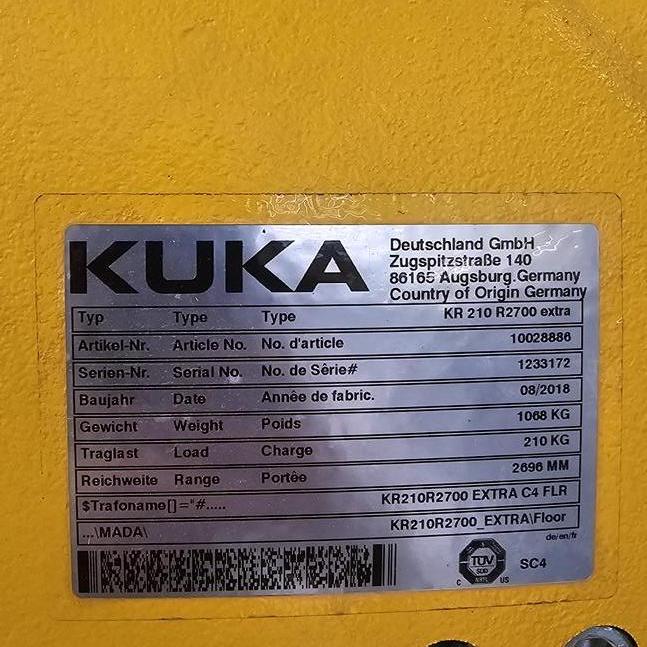

  • KR210 R2700 extra
