Machine Name:(04.06) Shaft Shrinking
Manufacturer:eldec Induction
Model:MFG 75x2
Year of Manufacture:2018
Location:Germany
Machine Id:599
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.

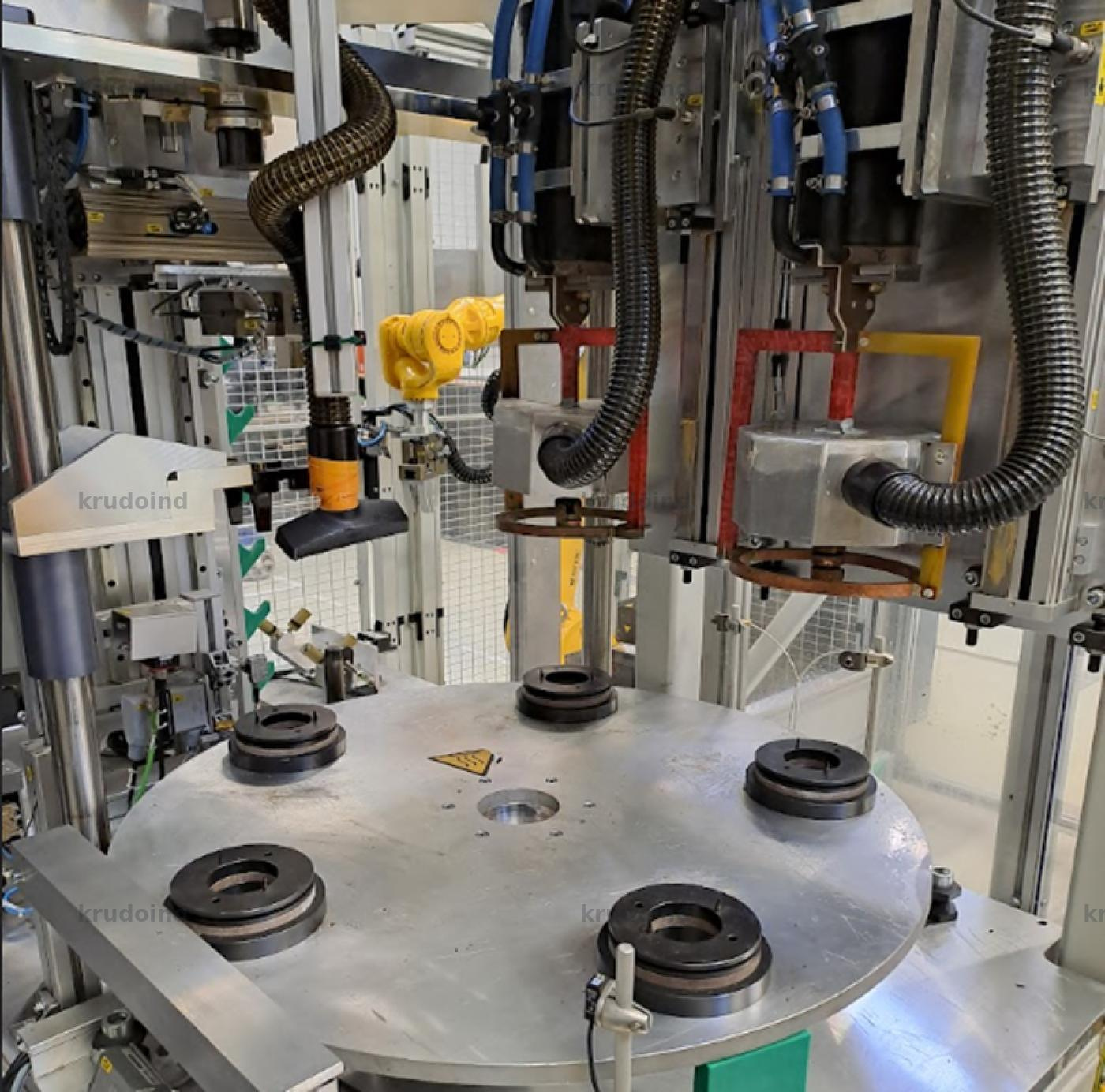

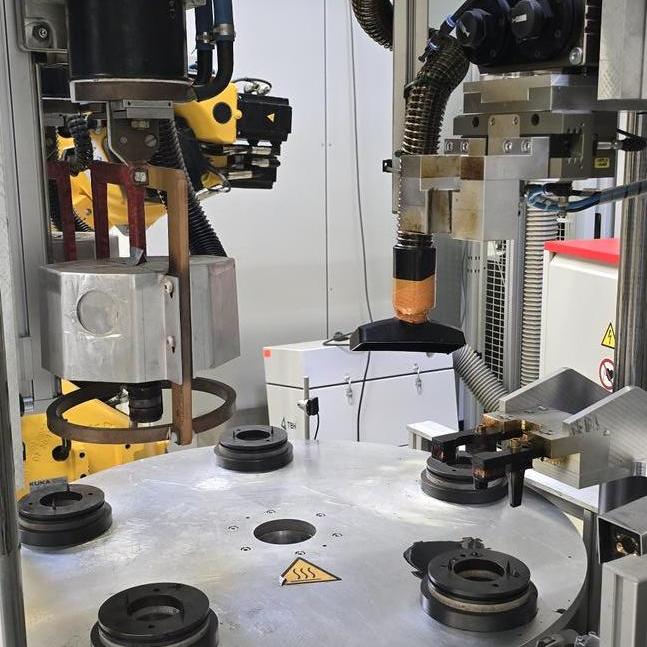

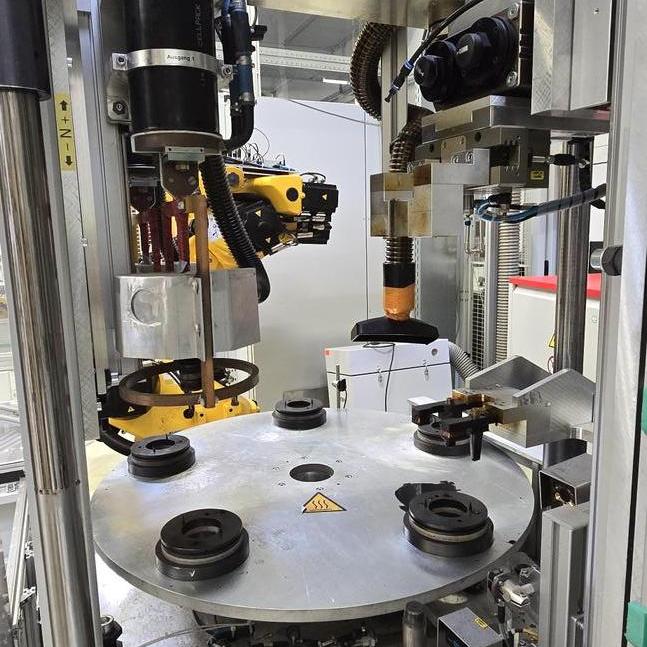

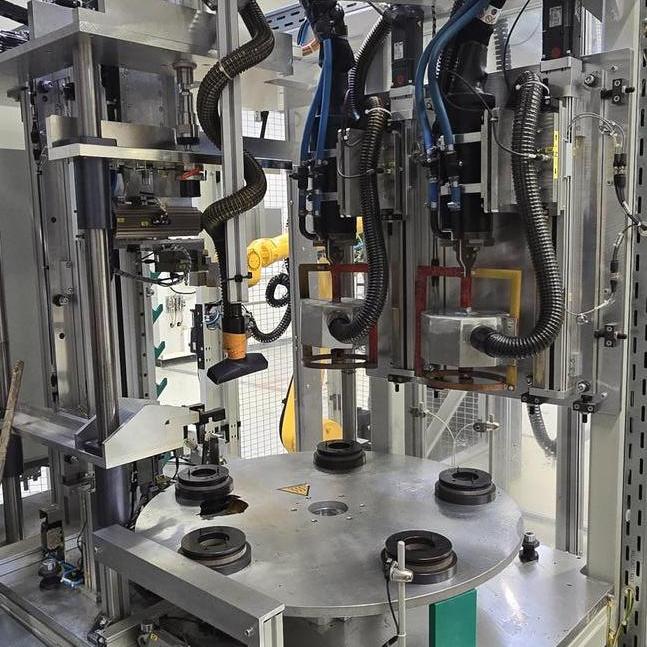

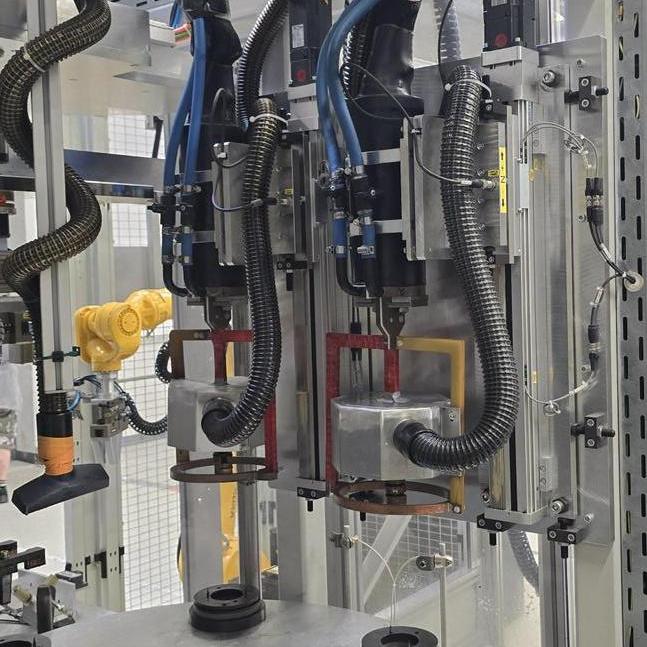

(04.06) Shaft Shrinking
1
1
1
1

Description:

Technical Specifications:

  • Ref.: Induction Generator
  • Voltage: 3PH/PE, 400V, 50 Hz
  • Pauf: 173 kVA
  • S.No.: 111466
  • Fab: 10 - 25
  • Si. 315 A

Click here to view 360 Tour
