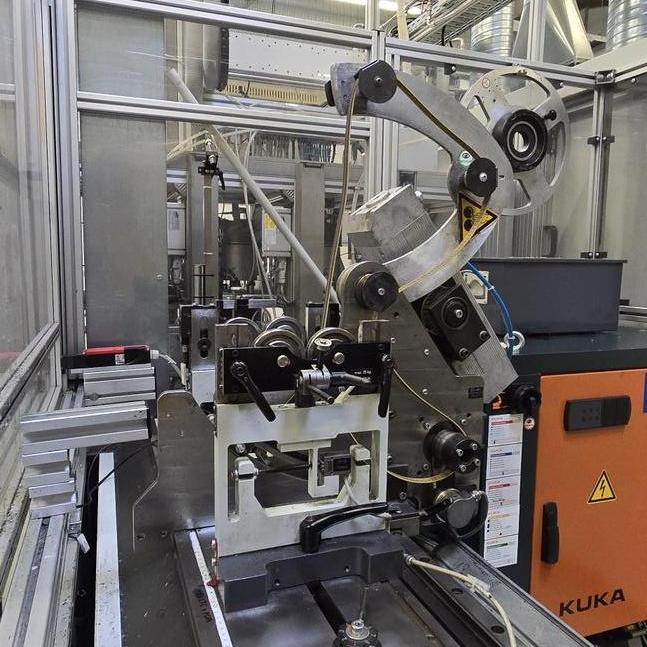

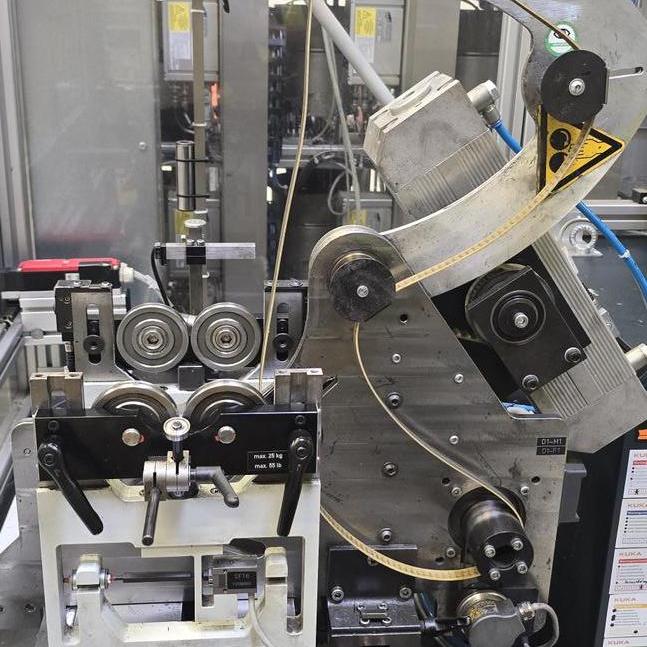

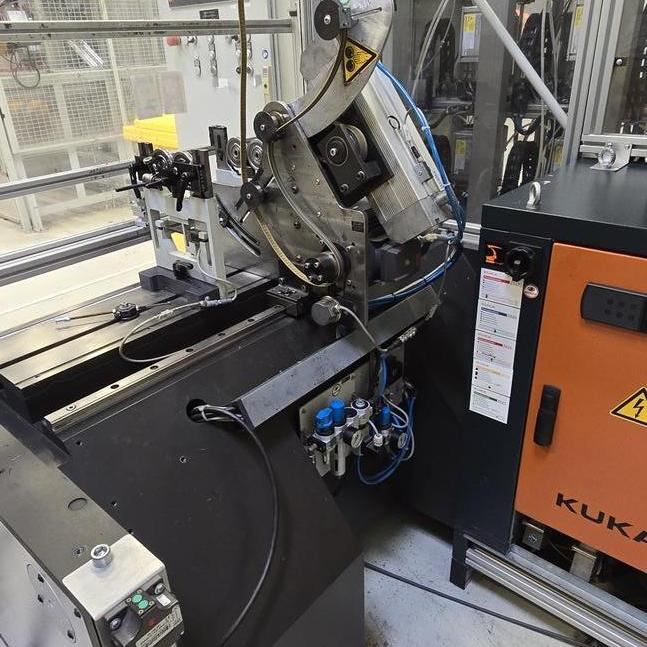

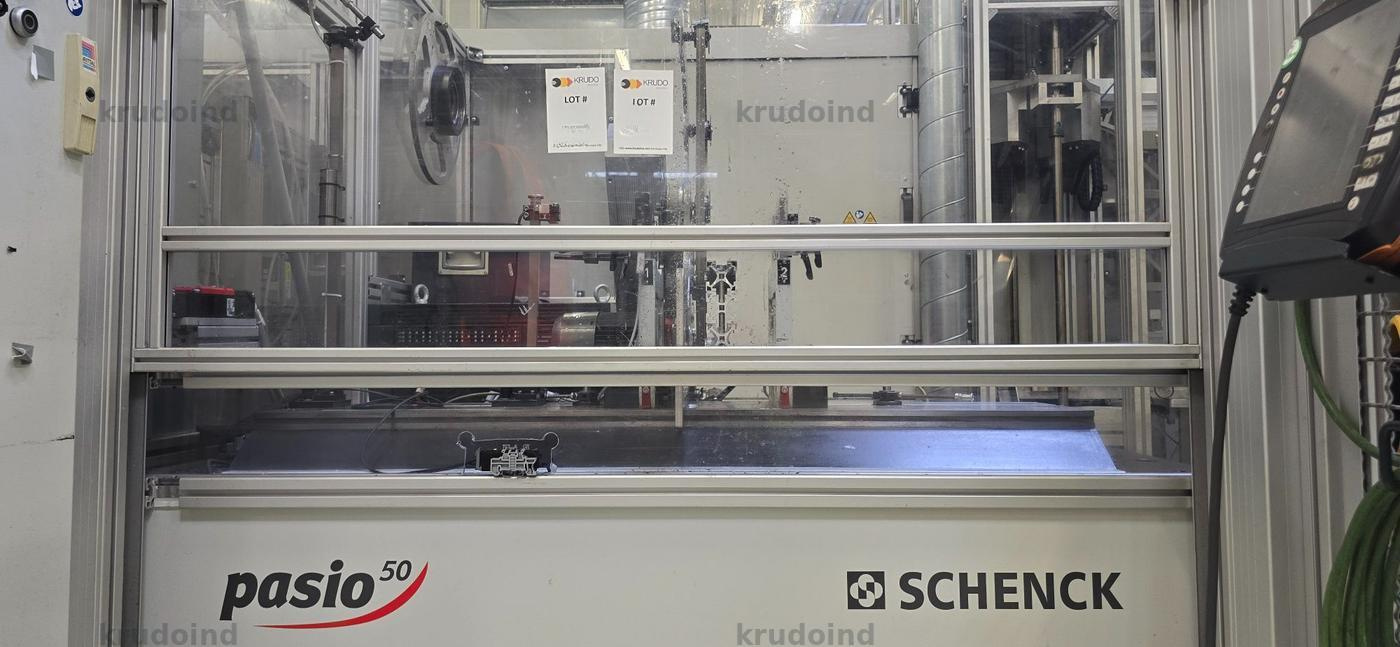

Machine Name:(03.03) Inbalance check
Manufacturer:Carl Schenck AG / SCHENCK RoTec GmbH
Model:Pasio 50
Year of Manufacture:2014
Location:Germany
Machine Id:587
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(03.03) Inbalance check
(03.03) Inbalance check
(03.03) Inbalance check
(03.03) Inbalance check
(03.03) Inbalance check

Description:

Technical Specifications:

  • Manufacturing No.: RMHD 0434
  • Supply Voltage: 400V, +/-10%, 3AC
  • Nominal Frequency: 50/60 Hz
  • Full Load Current: 10 A
  • Short-Circuit Breaking Capacity: 50 kA
  • On-Site Security: max. 16 A(T)
  • Wiring Diagram: R033205201
  • CAB 920
