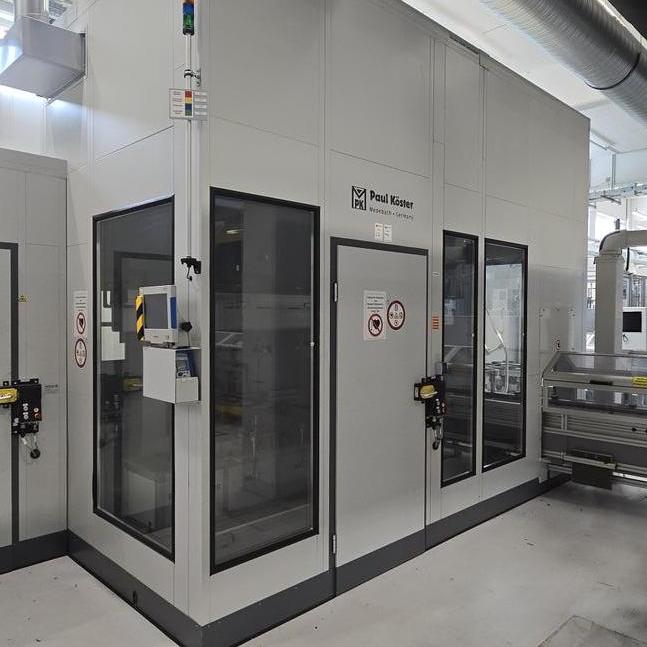

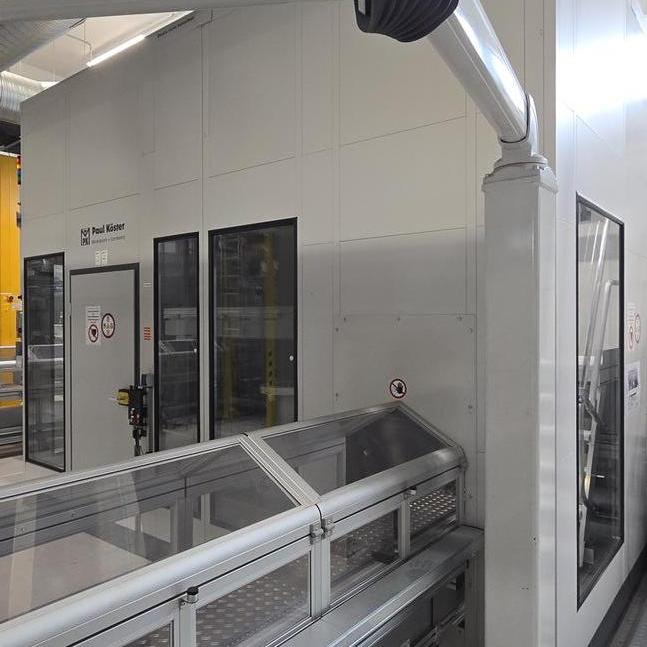

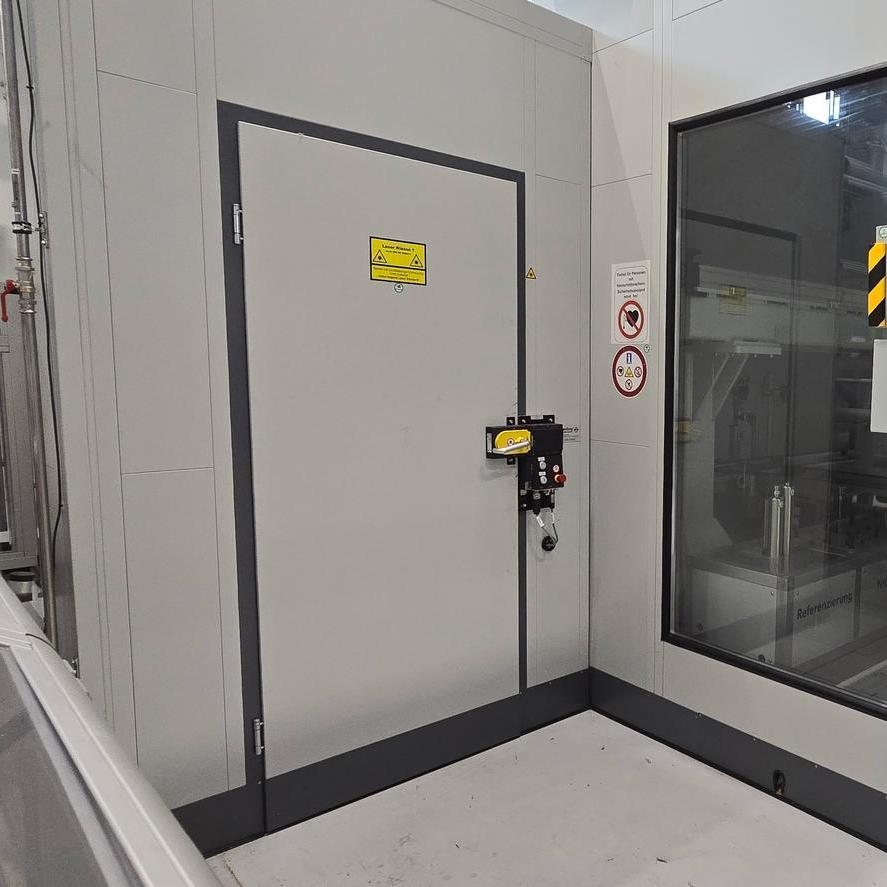

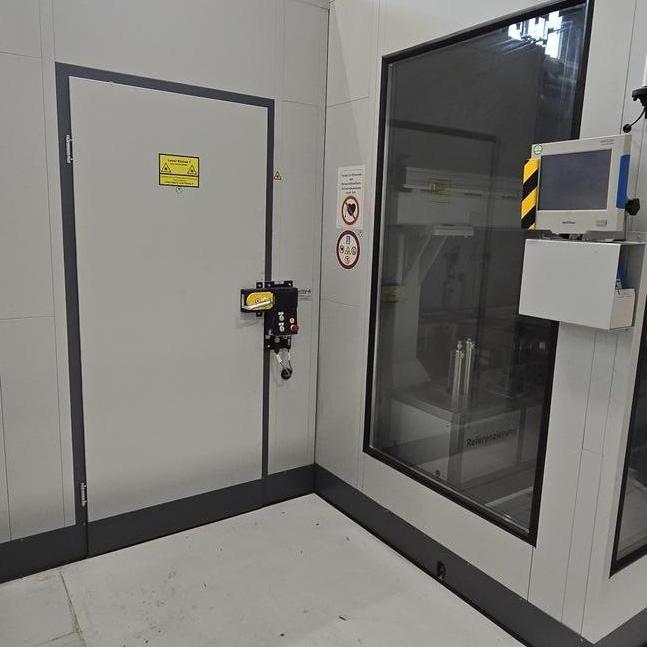

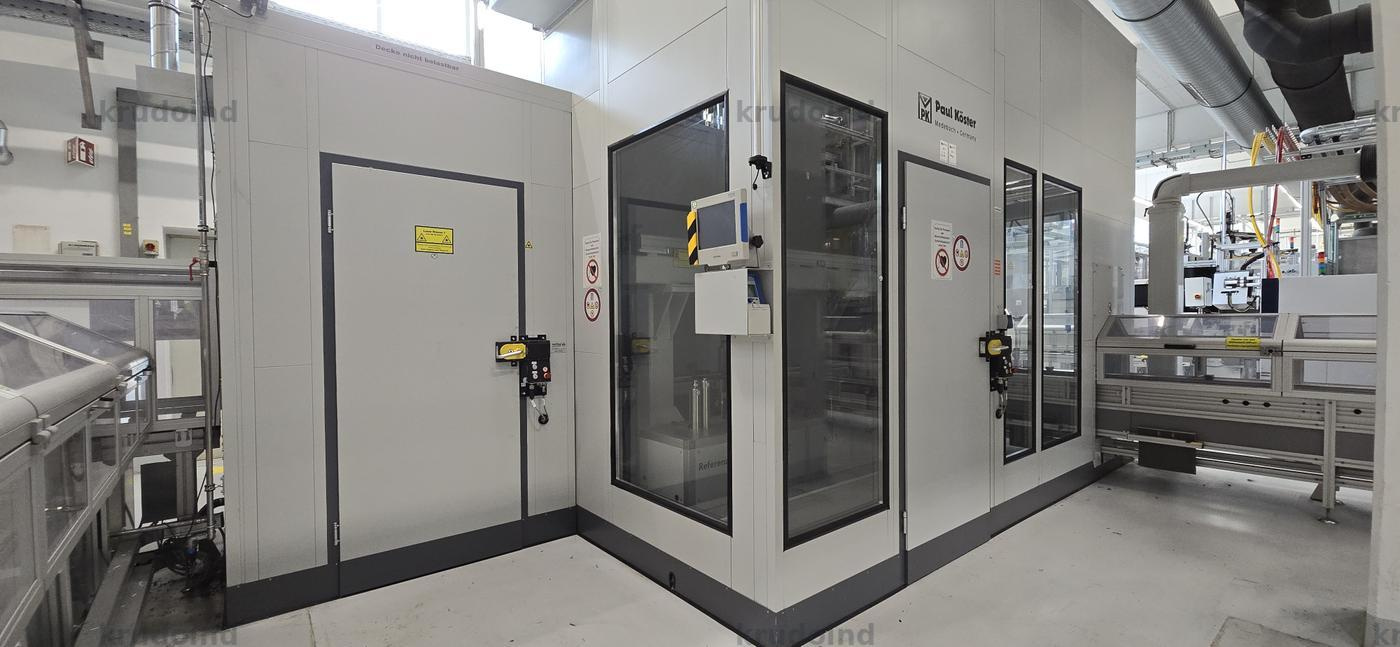

Machine Name:(02.01) Shrinking of Stator into Housing
Manufacturer:Paul Köster
Model:Shrink-Fit System Stator/Housing
Year of Manufacture:2019
Location:Germany
Machine Id:579
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(02.01) Shrinking of Stator into Housing
1
2
1
(02.01) Shrinking of Stator into Housing

Description:

Technical Specifications:

  • A.Nr: 4182567
  • E.Nr: 4182567
  • Connection Voltage: 400 V
    • Frequency: 50 Hz
    • IA max: 60 A
  • Control Voltage: 24 V
    • Frequency: - Hz
    • IA max: 80 A
  • Performance: 40 kVA

Parts/Toolings included:

  • Altratec: 20x housing WPC
  • eldec: induction generator MFG75
  • Kistler: axis
  • Fuchs Umwelttechnik: suction
