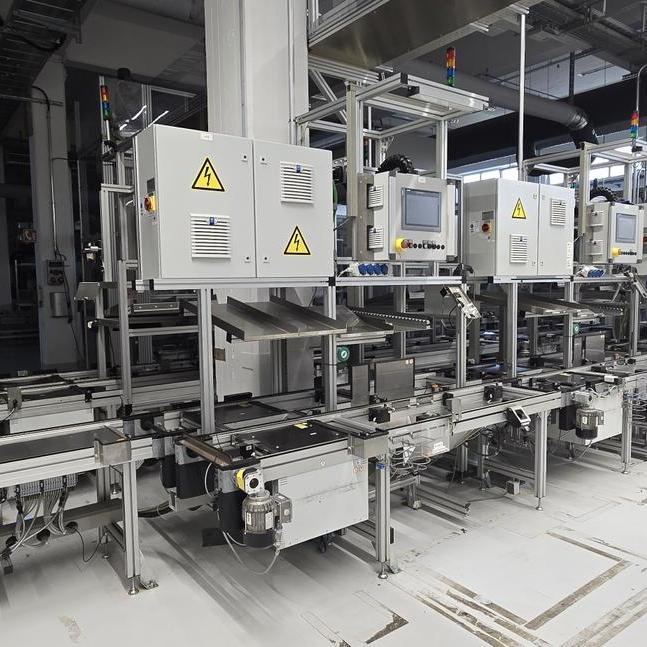

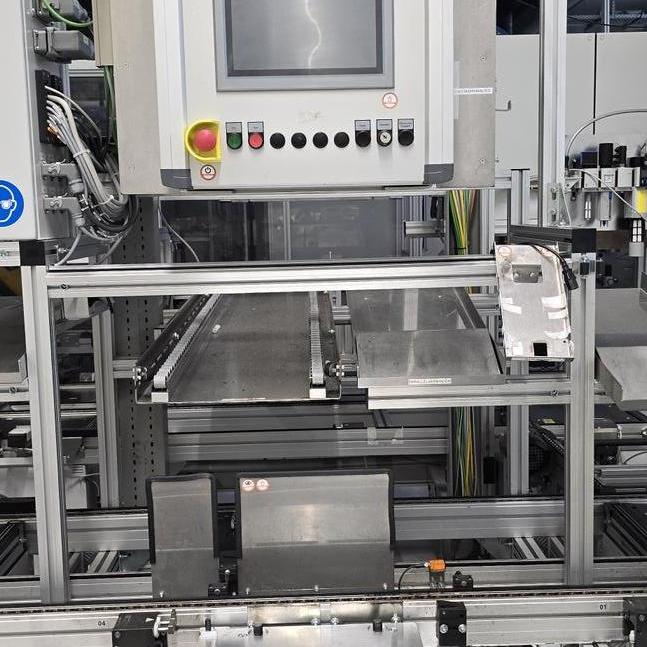

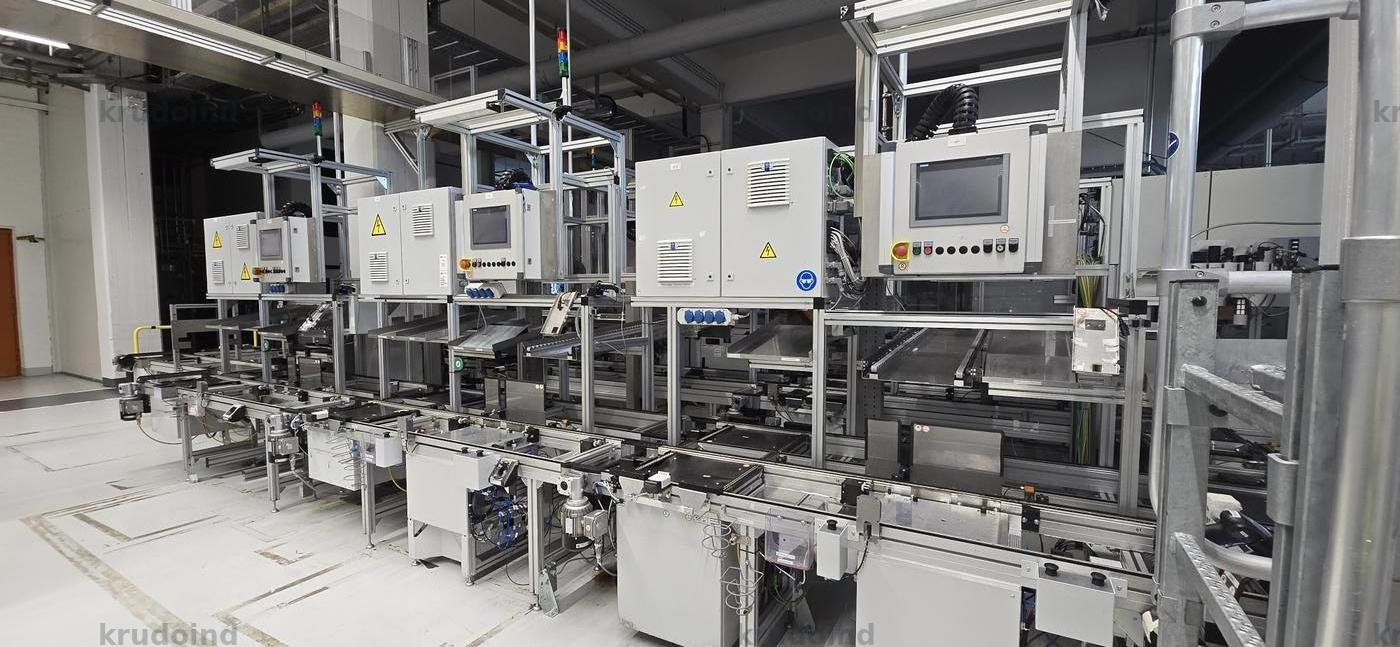

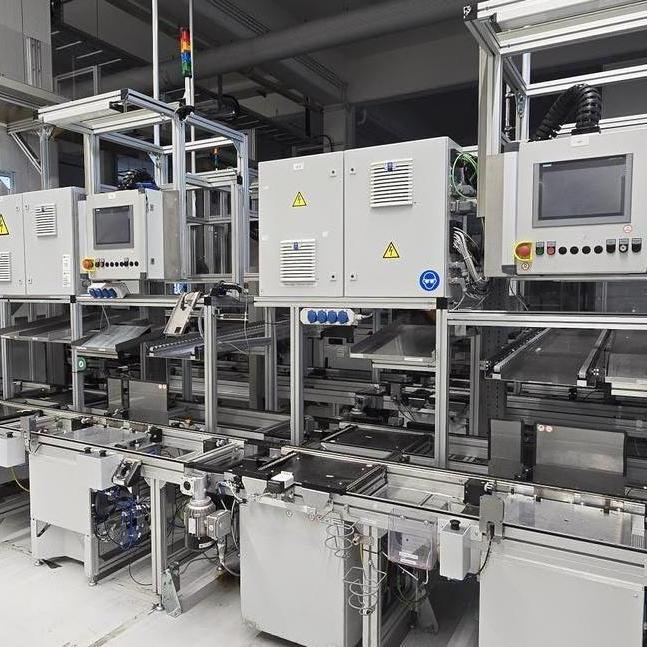

Machine Name:(01.12) Preparation Crimping
Manufacturer:PIA Automation
Model:ST70
Year of Manufacture:2019
Location:Germany
Machine Id:576
Disclaimer:

The presented specifications have been prepared to the best of our knowledge, and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery and Equipment at the current location prior to purchase.
(01.12) Preparation Crimping
1
(01.12) Preparation Crimping
(01.12) Preparation Crimping
1

Description:

Technical Specifications:

  • Machine No.: 2800/0618/30000684
  • Electric Power Supply: 3L/N/PE/ - 400VAC - 50Hz
  • Power Supply Prefuse: 16A
  • Rated Short Current: <10kA
