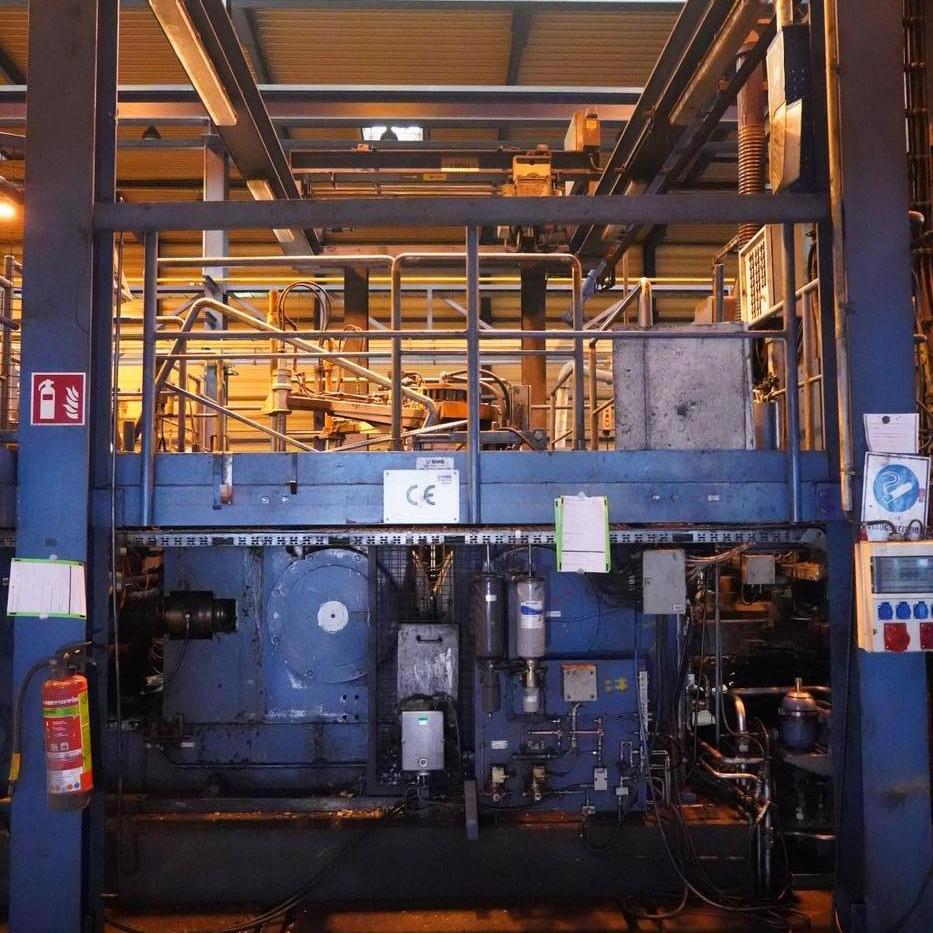

Machine Name:Double Wedge Cross Rolling Machine
Manufacturer:SMS EUMUCO
Model:QW850
Year of Manufacture:2002
Location:Germany
Machine Id:370
Disclaimer:

The presented specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! Buyers are invited to inspect the offered Machinery & Equipment at current location prior to purchase.

Double Wedge Cross Rolling Machine
SOLD
Double Wedge Cross Rolling Machine
Double Wedge Cross Rolling Machine
Double Wedge Cross Rolling Machine
Double Wedge Cross Rolling Machine

Description:

Working parameters

Roller diameter (tool clamping surface): 850mm

               Roller width: 700mm

Adjustment distances

               Roll gap adjustment: ± 40 mm

Blank dimensions

               Diameter, max.: 80 mm

               Length, max.: 600 mm

Speed

               Roller speed, max.: 15 1/min

Achievement

               Roller drive: 160 kW

Cycle times

A cross roller, min.: 4 sec.

               Two cross rollers, min.: 2 sec.

Power supply

Current

Operating voltage, +5% /-10%: 400 V

Frequency: 50 Hz

Connected load: 280 kVA

Required pre-fuse: 630 A

Consumption

               Water

                              Oil cooling roller gearbox, approx. 0.9 m³/h

               The values for the cooling water quantity assumed a water inlet temperature into the coolers of: T ≤ 25°C

                              Roller cooling, depending on application: 0.4 m³/h

               Operating pressure: approx. 7 bar

               Compressed air

                              Operating pressure: 5 bar
