Machine Name:Hydraulic Double-Acting Hammer
Model:HO-U 315 So
Year of Manufacture:2002
Machine Id:277

The presented specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions!

Buyers are invited to inspect the offered Machinery & Equipment at current location prior to purchase.

Hydraulic Double-Acting Hammer
Hydraulic Double-Acting Hammer
Hydraulic Double-Acting Hammer
Hydraulic Double-Acting Hammer
Hydraulic Double-Acting Hammer

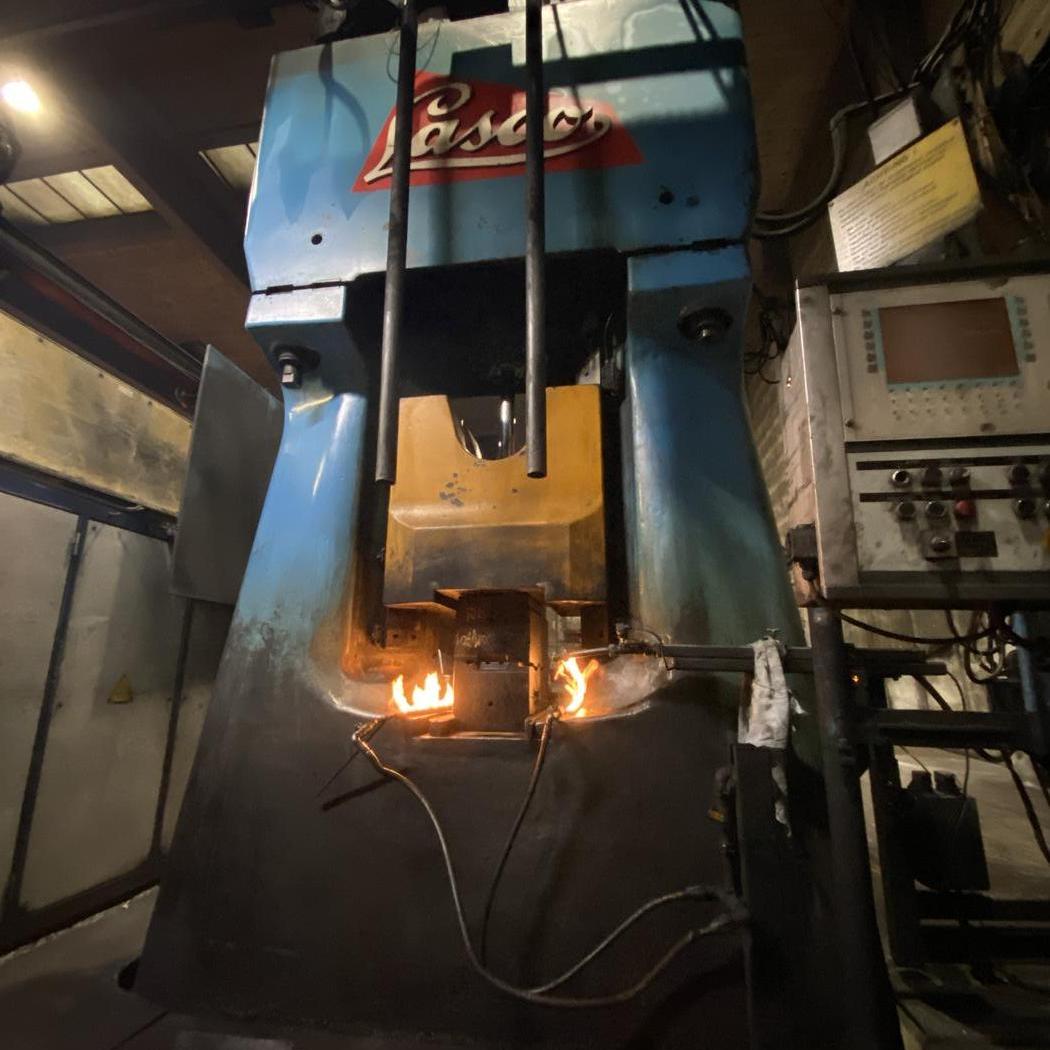

Hydraulic Double-Acting Hammer - LASCO HO-U 315 So

This leading edge hydraulic double-acting hammer from world-class supplier LASCO is an ideal forming machine for the forging industry.

  • Rated working capacity: approx. 40/50 kJ (interchangeable by SoftSwitch)
  • Impact frequency at nominal work capacity: approx. 90 1/min
  • Ultimate bear speed: at 40kJ= approx. 4.8 m/s and at 50kJ= approx. 5.3 m/s

Bear Stroke

  • max.: approx. 710 mm
  • min.: approx. 500 mm
  • Bear weight: about 3000 kg
  • Bear depth: approx. 700 mm

Height of both dies with swallows

  • max.: approx. 430 mm
  • min.: approx. 220 mm
  • Clear width between the guides: approx. 700mm
  • Frame foot dimensions (WxD): approx. 2800 mm x 1400 mm
  • Overall height: approx. 5100 mm
  • Frame weight: approx. 55000 kg
  • Total weight of the hammer: 75000 kg
  • Amount of oil in the head tank: approx. 1800 l
  • Accumulator pressure: approx. 130 bar
  • Drive power main engine: 2 x 45 kW
  • Drive power cooling filter circuit: 2.2 kW
  • Drive power fan for air cooler: 0.55 kW
  • Lubrication pump drive power: 0.18 kW
  • Operating voltage: 400 V³ 50 Hz
  • Control voltage: 230 V³ 50 Hz
  • Valve voltage: 24 V -
  • Degree of protection / type of protection: IP 55
  • Screen: Colour
  • Screen diagonal: 10.4"

Induction furnace

  • Screen diagonal: 10.4"
  • Operating voltage 600 volts three-phase current, 50 Hz
  • Peak current 1120 A
  • Power 1000 KW
  • Cooling circuit inductor with energy-saving cooler, closed circuit
  • Cooling circuit converter with chiller, closed circuit


The machine is *under power* and can be inspected at any time by prior appointment.
