Description:
Machine setup
Total length: approx. 9000 mm
Total width: approx. 5000 mm
Total height: approx. 51500 mm
Total weight: approx. 25.000 kg (empty)
A special foundation is not necessary, flat shed floor is sufficient. The set-up is done in a support frame integrated bottom bath (stainless steel plate). The installation is in multiple components delivered and assembled at the installation location by our specialist mechanics.
Connections to the Placement location
Reservoir outlet: DN 80
Main connection: 3 x 400 V, 50 Hz 300 Kw
Compressed air: R½”, 6 bar
Main water connection: DN 40
VE Water: DN 40
Instruction:
The additions referred to in 1.2 do not belong to the scope of delivery of CAE Beyss Gmbh.
The machine is cleaned, set up ready and ready for operation.
Technical data
Filling height: 1100 mm,
Processing height: approx. 1200 mm OKF
Clock time: variable 7.5-12 min
Transport system
The loading baskets are transported through 8 stations of the roller conveyor (yellow. drawing Axmann Conveyor technology). The loading is done with the help of a forklift in pos. 1.
The input and output in the treatment room is done in pos. 4
Hot vacuum drying is done in pos. 5
Unloading with the help of the forklift is done in pos. 8.
Technical data:
Lifting table: Type H-15-03
Büter Hebetechnik GmbH
Platform length: 1200 mm
Platform width: 900 mm
Surface tax : 1500 daN
Working height: 300 mm
Building height : 200 mm, retracted
Lifting time: 2 sec/2 sec. for 300 mm charge
Roller conveyor: Motor 1-6: Bevel gear drive motor R37 DT71 D4 -- 0.37 kW: 25 U/min; 1.24 A
Motor 7 + 8: Worm gear motor SA47 DT71 D4 -- 0.37 kW. 25 U/min; 1.24 A
Feed:
-For moving the loading boxes in and out, a retractable frame is used. Transport in the room or out of the room is done via the lifting table or with the power supply.
Motor 9: Bevel gear drive motor with brake KF47 DT80 K4BMG -- 0.55 kW; 13 U/min; 1.76 A; brake voltage 24 V/DC
Door drive
The door of the treatment room is closed with a pneumatic cylinder from the company Festo
and with 4 cylinders locked.
Technical data:
1x Linear dlinder
DGP-63-1480-PPV-A-B
Fa. Festo
4x double acting cylinders
DNG 160-25-PPV-A-S2
Fa. Festo
Cleaning programs
Flood cleaning with washing or rinsing medium
When draining, the treatment room fills up. The loading basket with the workpieces can be used during the treatment are shrunk or remain standing.
Flood-spray cleaning wash
In addition, a high-pressure pump by the company KSB sprayer tubes are loaded, which are equipped with 14 sprayers make LECHLER.
Technical data: 1x High pressure pump: MULTITEC MTC V 65/3
Transport rate: 100 m/h
Transport height: 130 m
1x three-phase motor: Type 250 M 2 AK, Make ABB -- 2900 U/min; 55 kW; 400/600 V; 50 Hz; IP 55, 250 M/F
14 x Full jet nozzles: Type 545.080.16.CG, Make LECHLERR ½”; Ø 7.5 mm
20x Flat jet nozzles: Type 632.804.16.CC, Make LECHLERRY; G ¼”, 4mm

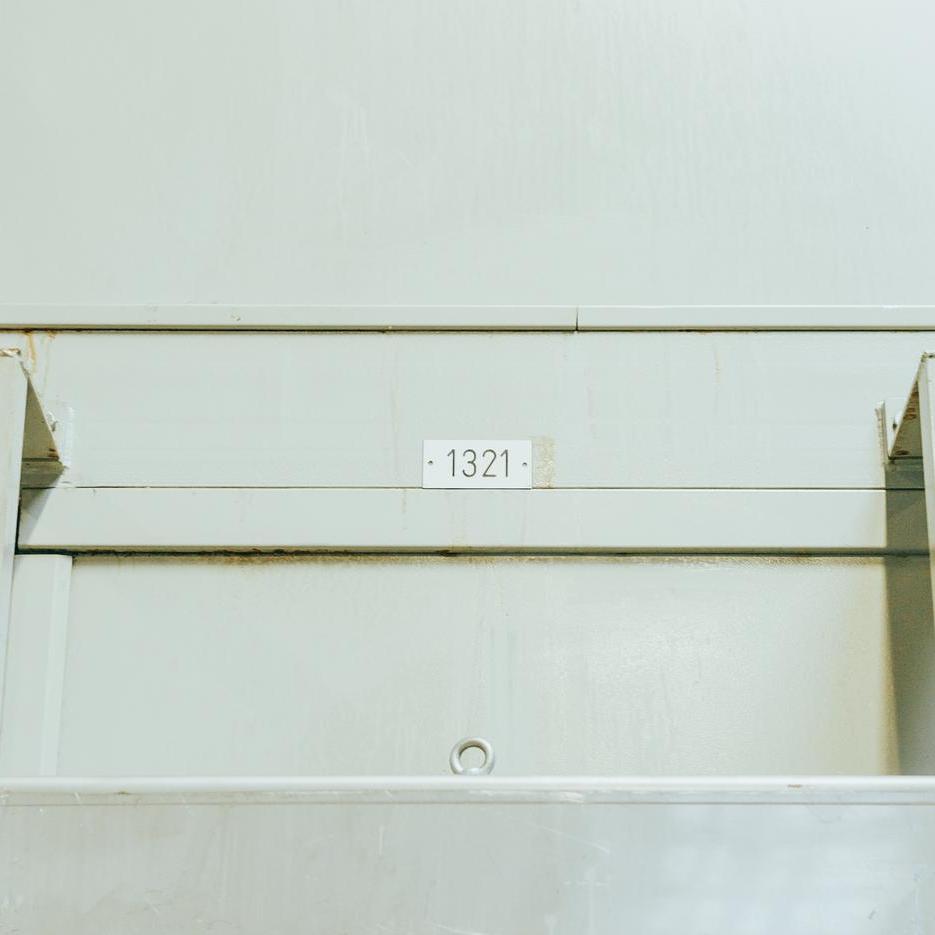

#1321
