Machine Name:External Cylindrical Grinding Machine
Manufacturer:EMAG
Model:HG 310
Year of Manufacture:2001
Location:Sint-Truiden - Belgium
Machine Id:203
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of these particular machines.

The presented specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! Buyers are invited to inspect the offered Machinery & Equipment at current location prior to purchase.

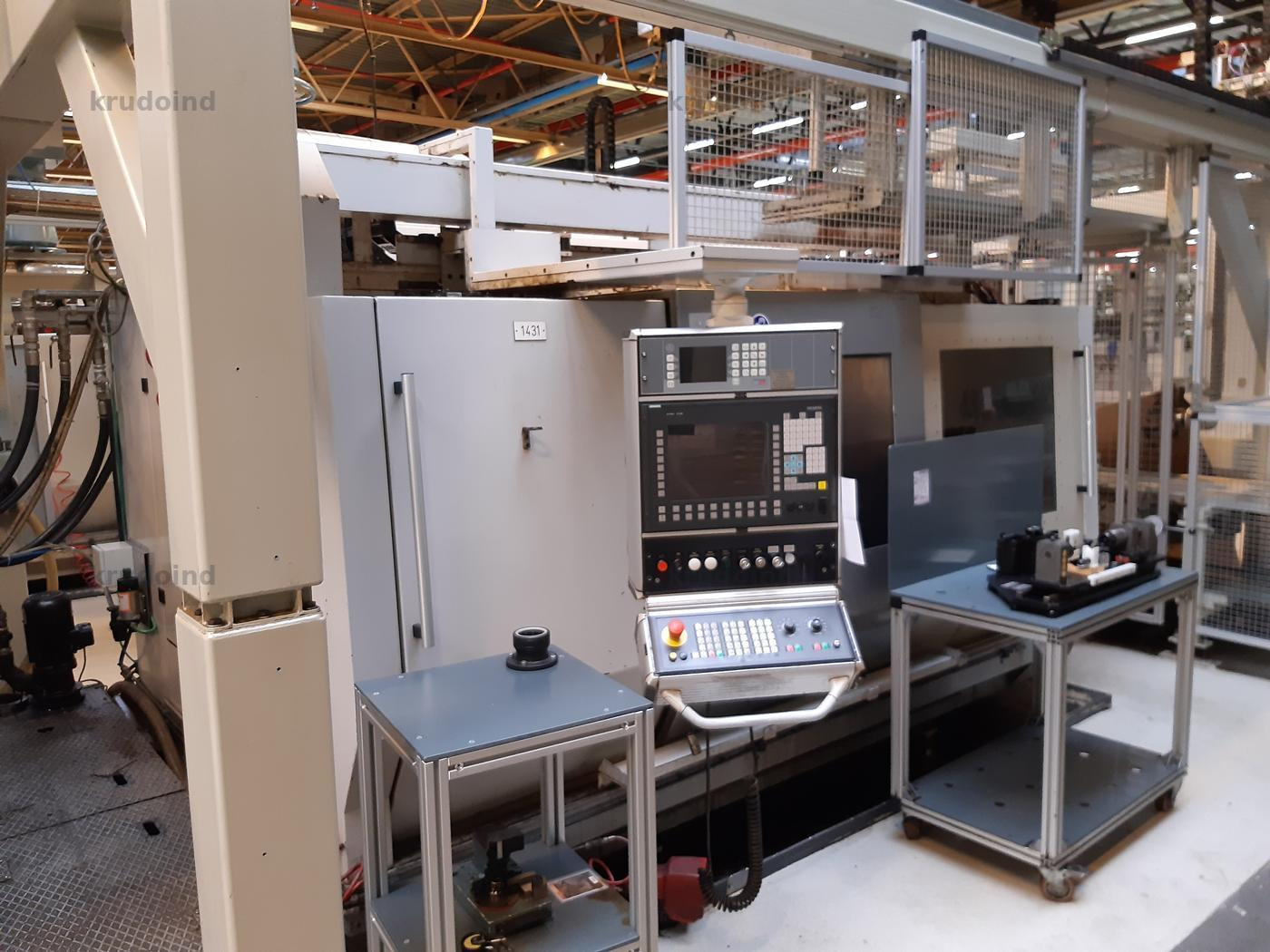

External Cylindrical Grinding - EMAG HG 310
External Cylindrical Grinding - EMAG HG 310
External Cylindrical Grinding - EMAG HG 310
External Cylindrical Grinding - EMAG HG 310
External Cylindrical Grinding - EMAG HG 310

Description:

External Cylindrical Grinding Machine - EMAG HG 310

Workspace:

  • Toolsupport, coordinate axis X:
  • Sledge driving range: 500 mm
  • Min. delivery amount: 0.001 mm
  • travel speed:  theo. 15 m/min
  • Tool slide, coordinate axis Z:
  • Sledge driving range: 1700  mm
  • Min. delivery amount: 0,001  mm
  • Travel speed:  theo. 15 m/min

External grinding:

  • Top height: 181 mm
  • Center width: 1000 mm
  • Grinding length: 1000 mm
  • Grinding diameter min./max.: 5 / 360 mm
  • Grinding length for penetration grinding: 250 mm
  • Workpiece weight: 250 kg

Grinding spindle:

  • Cone 1:10 Ø120
  • Tool holder: Ø304.8

Workpiece spindle:

  • Mk4
  • Ø 24 mm

Feed speed:

  • Grinding spindle min./max.: 0.01/15000 mm/min
  • Workpiece table min./max. .: 0.01/15000 mm/min

Spindle speeds:

  • Stepless from 1580 to 2040 rpm

Workpiece spindle speeds:

  • Stepless from 1 to 1000 rpm
  • Dimensions (L X W X H): 5600 mm x 3700 mm x 2500 mm
  • Minimum height requirement: 3500 mm

Weight: 10300 kg

Year of Manufacture: 2001

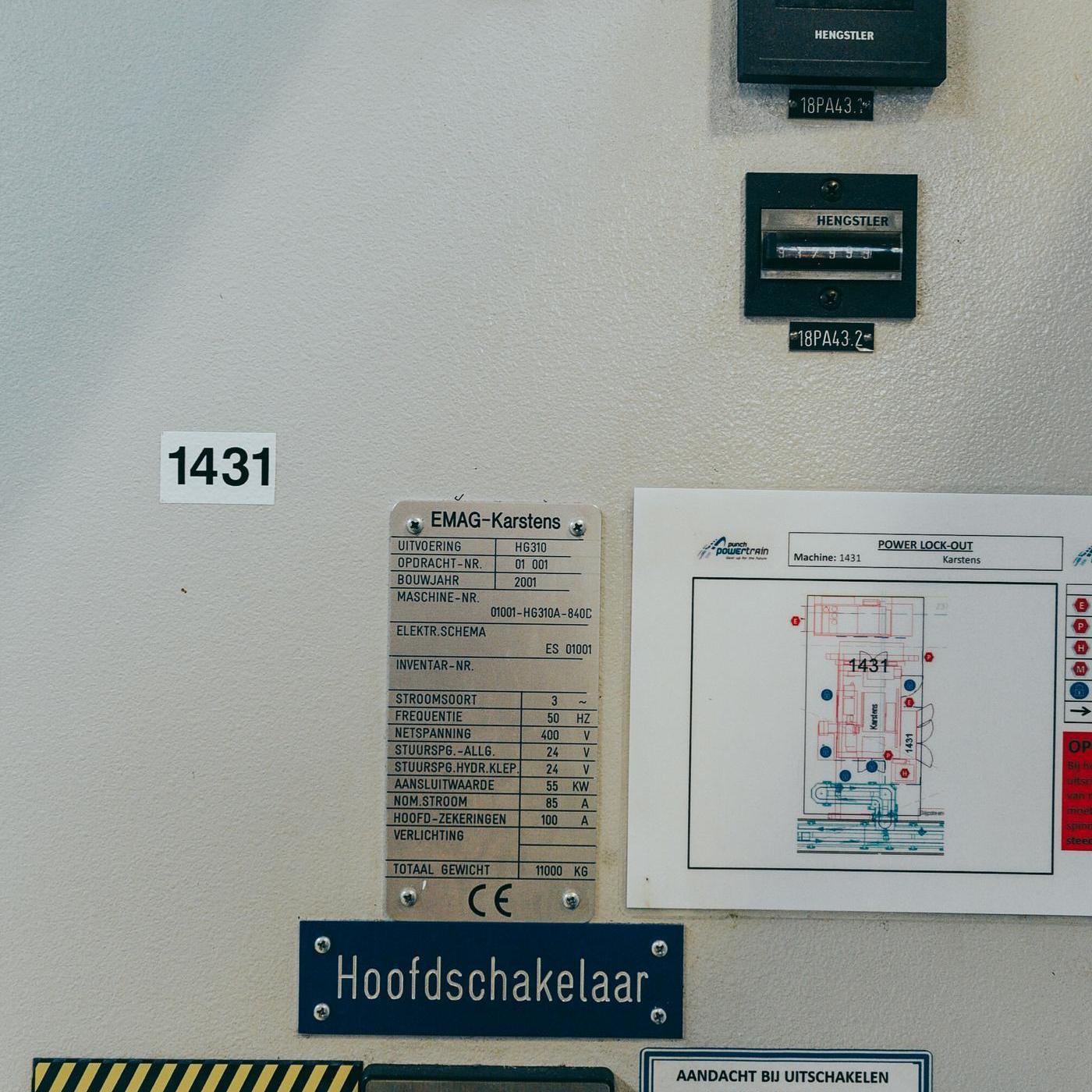

#1431
