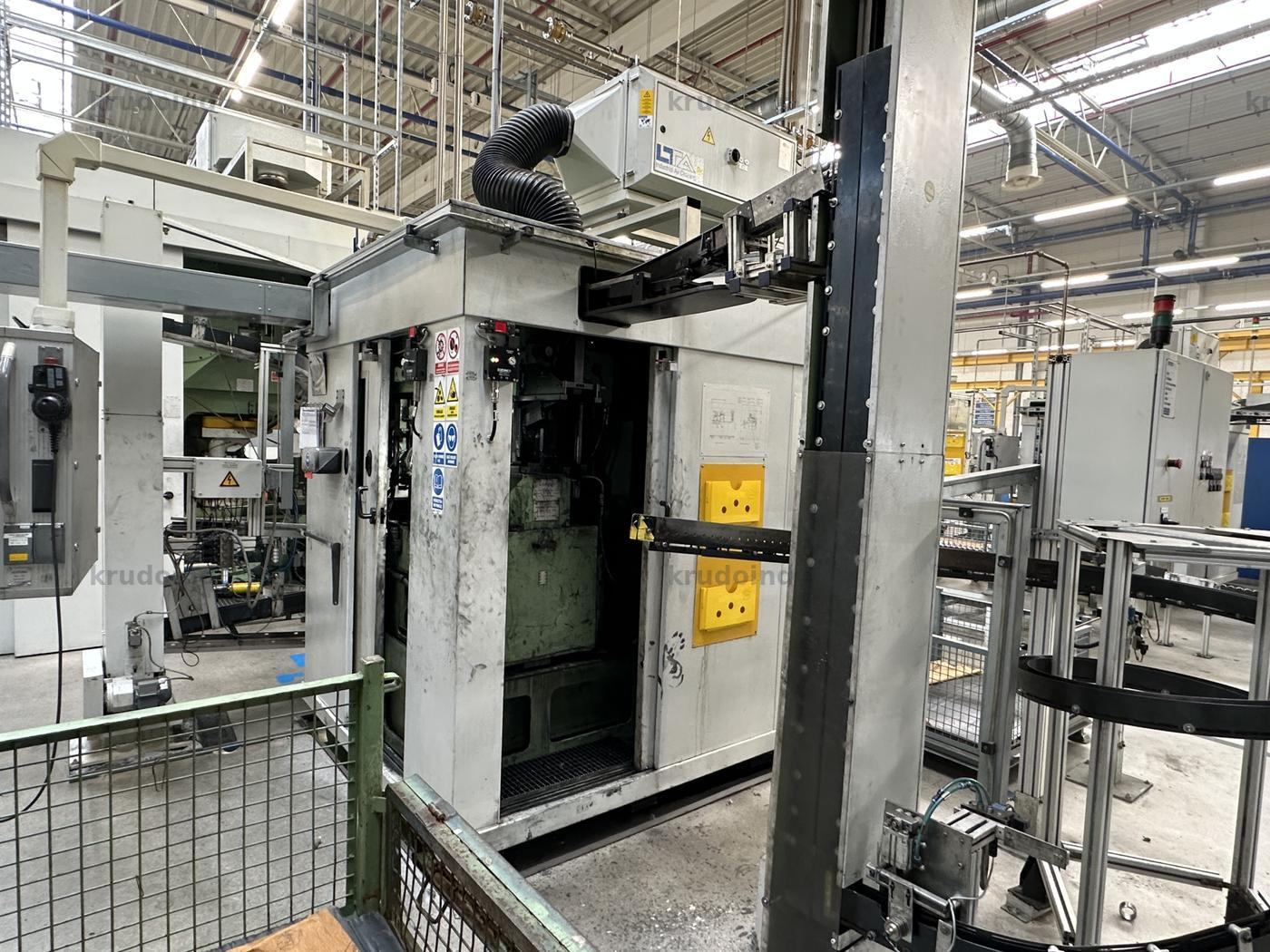

Description:

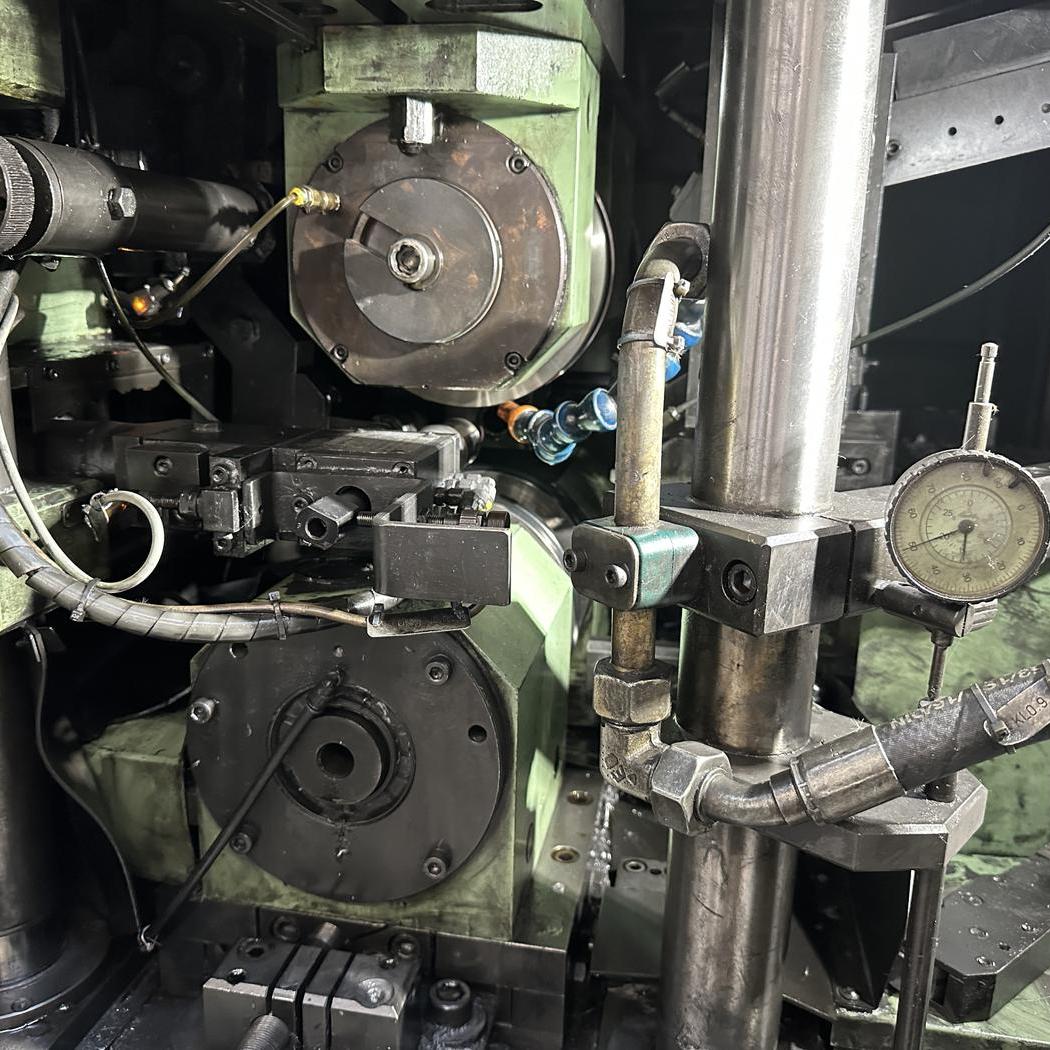

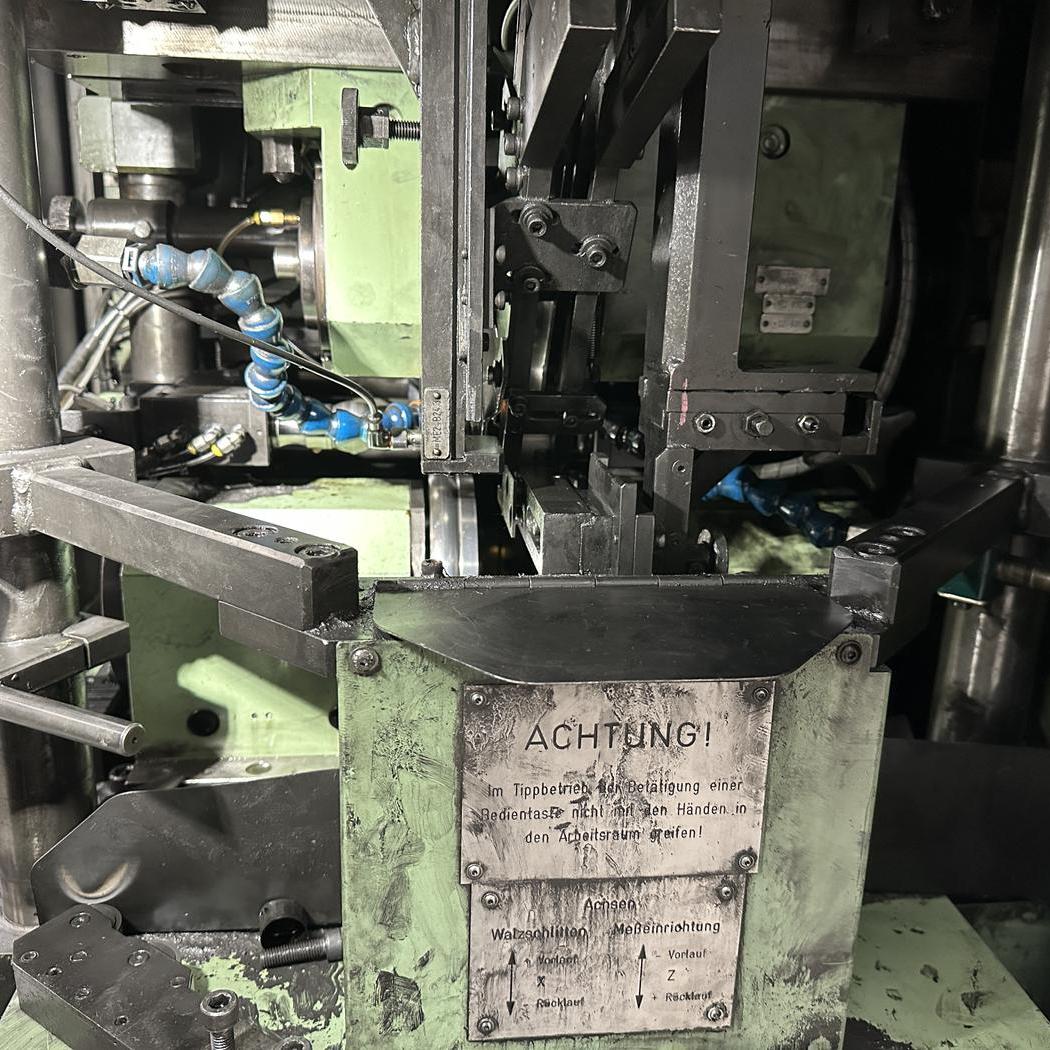

Rolling spindle clamping diameter 80 mm
Clamping length of the rolling spindle 85 mm
Roller diameter min, / max. 185/ 200 mm
Rotational speed - infinitely adjustable 120 – 600 rpm
Support Roller Diameter (Shape)
- Rounded
- Rounded-cylindrical -
195 mm
Axle spacing min. / max. (roller sleigh top)
- Roller - support roller 205 / 305 mm
Roller Sled Stroke 100 mm
Rolling force max. 200 KN
Cylindrical shank diameter min. /max. 22 / 55 mm
Round roller
- Width
- Diameter 63 mm
34 mm
Width of the measuring head min. / max. 18/28 mm
Workpiece dimension, finished part:
- Outer diameter, max.
- Width min. / max. 120 mm
9/43 mm
Inner diameter of hollow element min. 23 mm
Outer diameter of hollow element min. / max. 30 / 90 mm
Motor for:
- rolling spindle drive
- Weight Distribution Motor
- Hydraulic System
- Central lubrication system
- Main drive fan
- Process Cooling
29.6 kW
0.087 kW
3,0 kW
0,09 kW
0,49 kW
0,21 kW
- Rated Voltage
- Rated Current
- Connection value Kw
- Safeguard
- Power Cord 65 A
40 kW
125 A
5x70 mm²
Ambient Conditions
- Temperature range
- Relative humidity (non-roaring)
- Setting height
5 ... 40°C
< 85%
< 1000 m
Pneumatic connection
Compressed air class 4 DIN ISO 8573-1 de-oiled
Pressure Rating
Flow

5-6 bar
4,5 l/min
Space Requirement (Width x Depth x Height) 6511 mm x 8855 mm x 3425 mm
Weight
- Machine Weight
- Control Cabinet
- Hydraulics
- Scales
5100 kg
550 kg
500 kg
340 kg
Load on the Floor by the machine 11,5 kN/m²
Specific Surface Pressure 626 kN/m²

Control: SIEMENS Sinumeric 840D

#40307104
