Description:

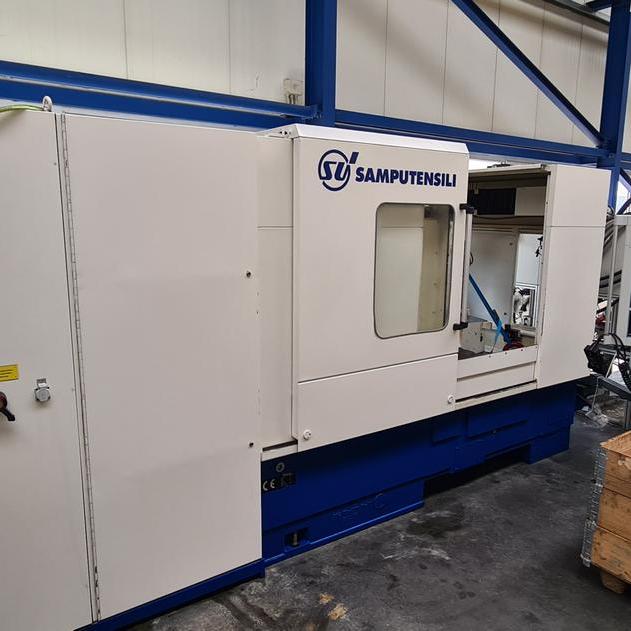

SAMPUTENSILI S500 B
Control: SINUMERIK 840D
YoM: 2004
Largest workpiece diameter
- with a ratio of the wheel pair 1:10 500 mm
- with a ratio of the wheel pair 1:1 405 mm
- in continuous partial proceedings 400 mm
- Largest outer forehead module 16 mm
- number of teeth range 5-200
Workspace dimensions
- Distance between machine tool spindle and machinecenter (axis X):
- Smallest value 70 mm
- Maximum 480 mm
- Travel distance 480 mm
- Distance between the swivel axis of the plantstand and the machine centre (axis Y):
- Smallest value 0 mm
- Maximum 530 mm
- Travel distance 530 mm
- Revolving diaper of the swivel drum (Axis A1) :
- Minimum value -170 Grad
- Maximum circulation angle +170 Grad
- Rotation angle 340 Grad
- Swivel angle of the workpiece stand (Axis C):
- Minimum value 0 Grad
- Maximum value 90 Grad
- Rotation angle 90 Grad
Connection socket Workpiece spindle (standard version)
- Recording cone: diameter 6 inches
- Pitch ¾ inch/foot
- Spindle bore: diameter 130 mm
- Sieve 440 mm
Connection mass tool spindle
- Eccentric constant 220m
- Mounting cone for cutter heads 58.23 / 1:24 mm
- 126.96 / 1:24mm
- Diameter of cutter heads:
- With the single-item method, max. 15 inches
- For the continuous part process 350 mm
- Tool spindle speed range (axis A2) 50-600 min-1
- Swivel drum speed range (Al axis) 0.01-20 min-1
- Workpiece spindle speed range (axis B) 0.1-750 min-1
- Speed range cone angle setting (axis C) 0.01-2 min-1
- Depth feed range (X axis) 0.1-10000 mm/min
- Cross feed range (Y axis) 0.1-10000 mm/min
Machine
- Dimensions (with work area cover)
- Length 4400mm
- Width 2400mm
- Height 2200mm
- Mass 13000 kg
