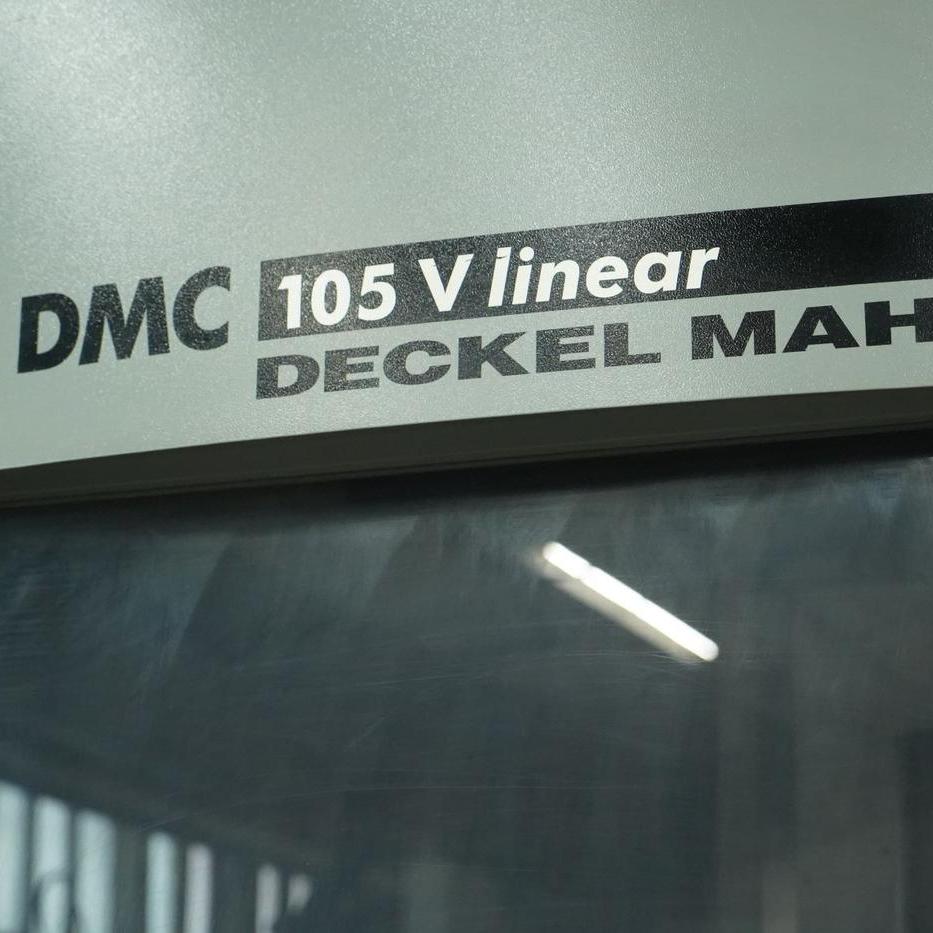

Machine Name:5 Axis Milling machine
Manufacturer:DMG DECKEL MAHO
Model:105V linear
Year of Manufacture:2006
Location:Germany
Machine Id:385
Disclaimer:

The presented specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! Buyers are invited to inspect the offered Machinery & Equipment at current location prior to purchase.

5 Axis Milling machine
SOLD
5 Axis Milling machine
5 Axis Milling machine
5 Axis Milling machine
5 Axis Milling machine

Description:

Travels:
X= 1050 mm
Y= 800 mm
Z= 560 mm
A= -10°/+110°
C= 360°

Kinematics fork head / rotary table
Tool holding: HSK63A
Spindle revolutions: 18000 rpm
Spindlepower:
25 / 35 kW at 100 / 40% ED
87 / 130 Nm at 100 / 40 %ED

Table size: diameter 950mm
Table load: 600 kgs
Rapid movement: 90 m/min
Tool magazine: 30
Weight: 13,700 kgs

Accessories:
Tool measurement and tool breakage monitoring by laser
Measuring probe: M&H 25.00-HDR
IKZ-Inner coolant supply through centre of the spindle (23l/min. at 40bar) with paper filtration plant
Roto-Clear
External blast air via 2 pipes
Cooling device air from the outside
Oil mist separator
Heidenhain HR410
Application Tuning Cycle ATC
Operating mode 4
