Description:

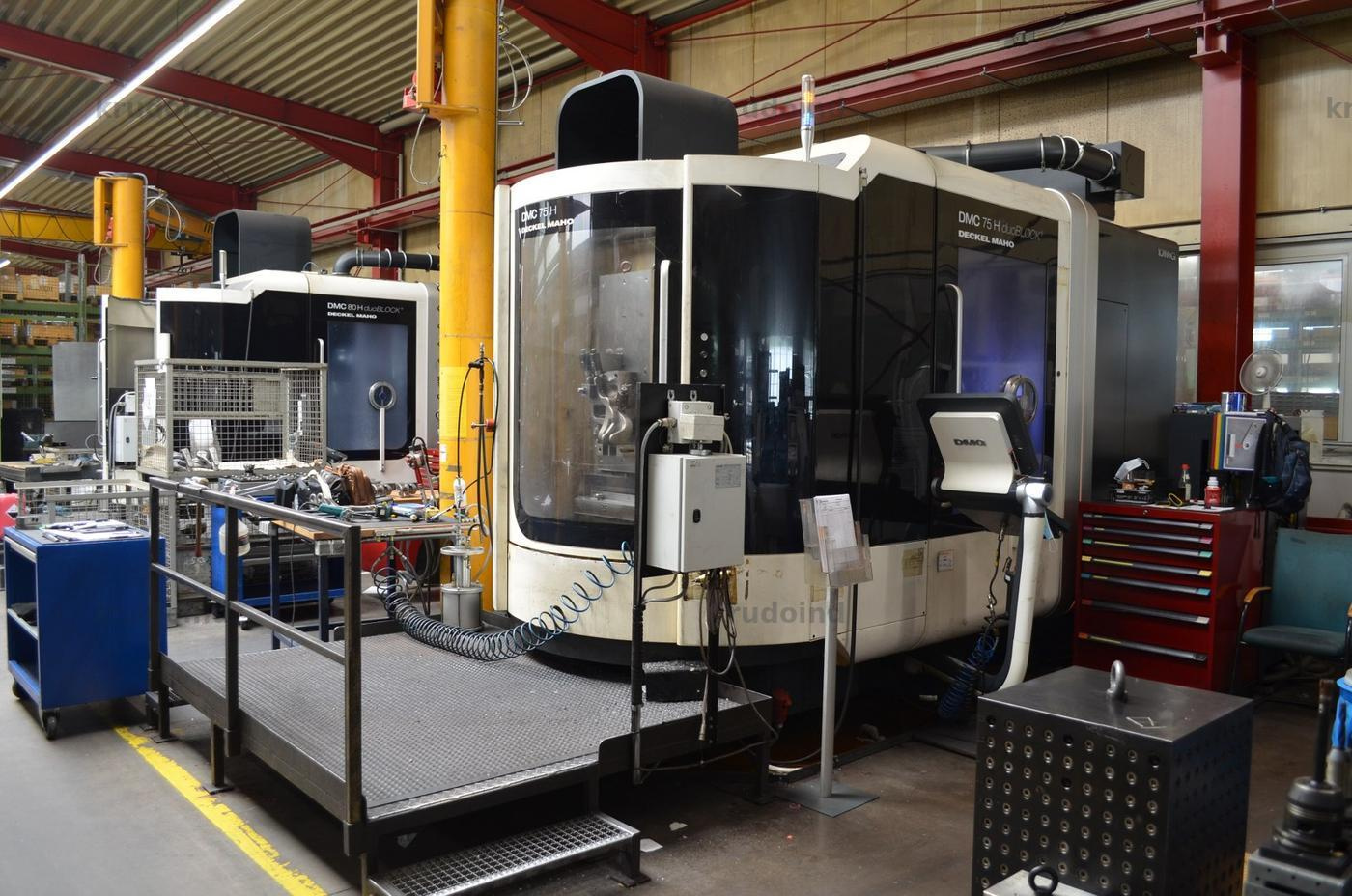

CNC Horizontal Machining Center
Design: Motor spindle without gear
Travels: X/Y/Z/B: 750/800/800/360 °
Control: SIEMENS 840D solutionline
Data: spindle speed, continuously programmable 1 / min.
- In operating mode 1 0 – 12000
- In operating mode 2 0 – 800
- In operating mode 3 0 – 5000
- In operating mode 4 (option) 0 – 5000
- Tool clamping system: with internal cooling lubricant supply
Taper: SK 50 DIN 69871 form AD
Pull studs: SK 50 DIN 69872 form A
Pull studs: SK 50 ISO 7388/2 type B
Tool clamping: Mechanical clamping with spring force
Tool relax: hydraulically
Feed drive:
- Design: AC motor, digitally controlled, directly coupled with rotating ball screw for axes X, Y, Z
- Ball screw: X-axis liquid-cooled
- Circulating roller guides in the axes X, Y, Z
- Data feed speed: X-, Y-, Z-axis 0 – 60000mm / min.
- Rapid traverse: X, Y, Z axes 60m / min.
- Feed force: X-axis max. 12kN
- Y-axis max: 8kN
- Z-axis max: 12kN
- Maximum horiz. Thrust: approx. 15kN
Position measuring system:
- Design: direct, absolute, photoelectric
- Resolution: X-, Y-, Z-axis 0.001mm
- Input resolution: X-, Y-, Z-axis 0.001mm
- Position tolerance: X-, Y-, Z-axis 0.007mm
- Position tolerance: B-axis 7ws
- Max. workpiece height: 1330mm
NC rotary table:
- Data Max. torque at 40% ED 5000Nm
Holding torque of the table top at:
- 100% ED (duty cycle) 3660Nm
- 40% ED (duty cycle) 5000Nm
Max allowable:
- Mass moment of inertia: 205kg m2
- Max. rotation of the table top: 35 1/min
- Max. feed: 12600 ° / min
- Resolution of measuring system: 0.001 °
- Maximum table load: 1200kg
- Maximum tilting moment: 10kNm
Palette:
- Clamping surface pallet: 630 x 500 mm
- Weight of the pallet approx.: 235kg
- Max. workpiece weight: 1000kg per Pallet
Chip conveyor:
- Length: 2500mm
- Width (with coolant reservoir): 1070mm
- Height: 1540mm
- Drop height: 950mm
- Belt speed 2: +/- 15% m / min.
- Chip length : max. 80mm
- Chip passage height: 87mm
- Weight chip conveyor: 375kg approx.
Cooling unit machine:
- Useful cooling capacity: 8kW
- Power consumption: 5,3kW
- Nominal voltage: 3 x 400V
- Control voltage: 24VDC
- Nominal current: 10.5A
- Air throughput condenser filter: 8.5m3 / h
- Heat output of the system: max. 12 kW
- Weight (without filling): 200kg
- WidthxHeightxDepth: 650 x 1170 x 450
- Permissible operating pressure water: min. 3 / max. 10bar
- Pipe connection: 6 x 1 / 2bar
- Conveyor pump: 35l / min at 5bar
- Tank volume: 45l
- Refrigerant: R 134 a
- Fill weight refrigerant: 2kg
Cooling unit, electrical control cabinet:
- Useful cooling capacity: 1.0kW
- Refrigerant: R 134 a
- Fill weight of refrigerant: 0.33kg
- Temperature setting range: +20 – +55 ° C
- Weight of the unit: 39kg
Oil/Emulsion mist separator:
- Length: 1300mm
- Width: 500mm
- Height: 750mm
- Throughput volume: 1600m3 / h
