Description:

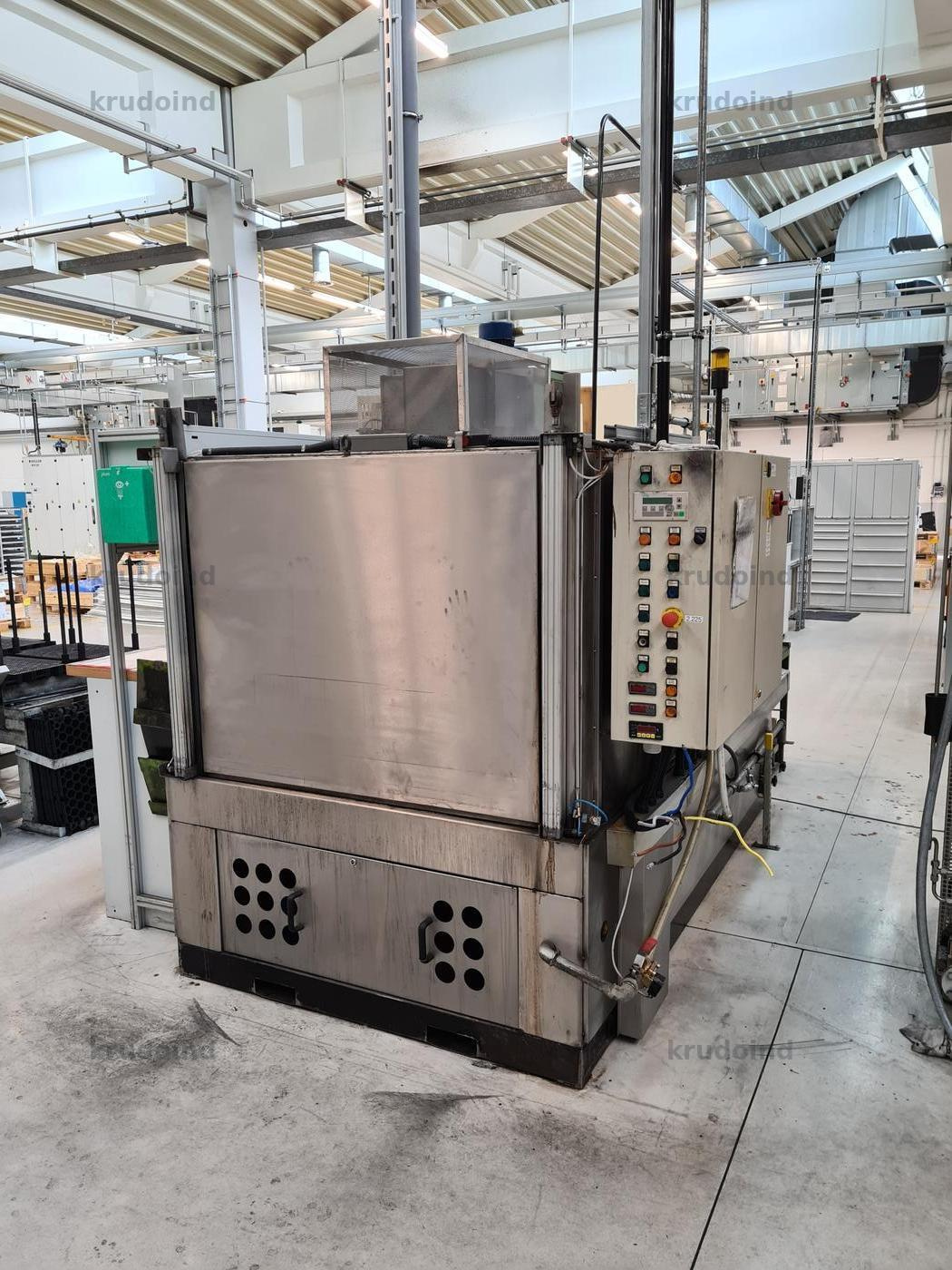

Industrial Chamber Washing Machine - MEA-Maschinenl 1102 Doppelbad

• Installed power:  52  kW
• Power consumption:  80  A
• Cable cross-section:  5 x 16  mm
• Voltage: 400 V AC
• Phases:  3 + N + E  ph
• Frequency: 50 Hz
• Noise level:  < 75  db(A)
• Washing temperature:  20-70°  C
• Washing time adjustable:  0-60  min.
• Tank capacity washing: 600 l
• Tank capacity rinsing: 400 l

Basket:

• Load:  700  kg
• Dimensions:  1100 x 1100  mm
• Useful height: 900 mm
• Basket revolutions: 16  rpm

Washing pump:

• Power:  5,5  kW
• Pressure: 4.5 bar
• Capacity: 16  rpm

Flushing pump:

• Power: 4 kW
• Pressure: 4 bar
• Flow rate: 400 l/min
• Emptying pump 1 and 2
• Power: 0,55 kW
• Flow rate: 110 l/min

Extractors fan:

• Power:  0,75  kW
• Flow volume:  650  mc/h

Motor:

• Power:  0,375  kW

Heating:

• Power: 30 kW

Drying:

• Heating: 10 kW
• Suction power:  0.75  kW

Dimensions:

• Length:  2.280  mm
• Width:  1.950  mm
• Height:  2.560  mm
• Weight:  1.000  kg
• Dimensions over all:  2400x2000x2600  mm
