Machine Name:CNC Milling and Boring Machine
Manufacturer:KEKEISEN
Model:UBF-R 2000/13
Year of Manufacture:2016
Location:Germany
Machine Id:276
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of this particular machine.

CNC Milling and Boring Machine
CNC Milling and Boring Machine
CNC Milling and Boring Machine
CNC Milling and Boring Machine
CNC Milling and Boring Machine

Description:

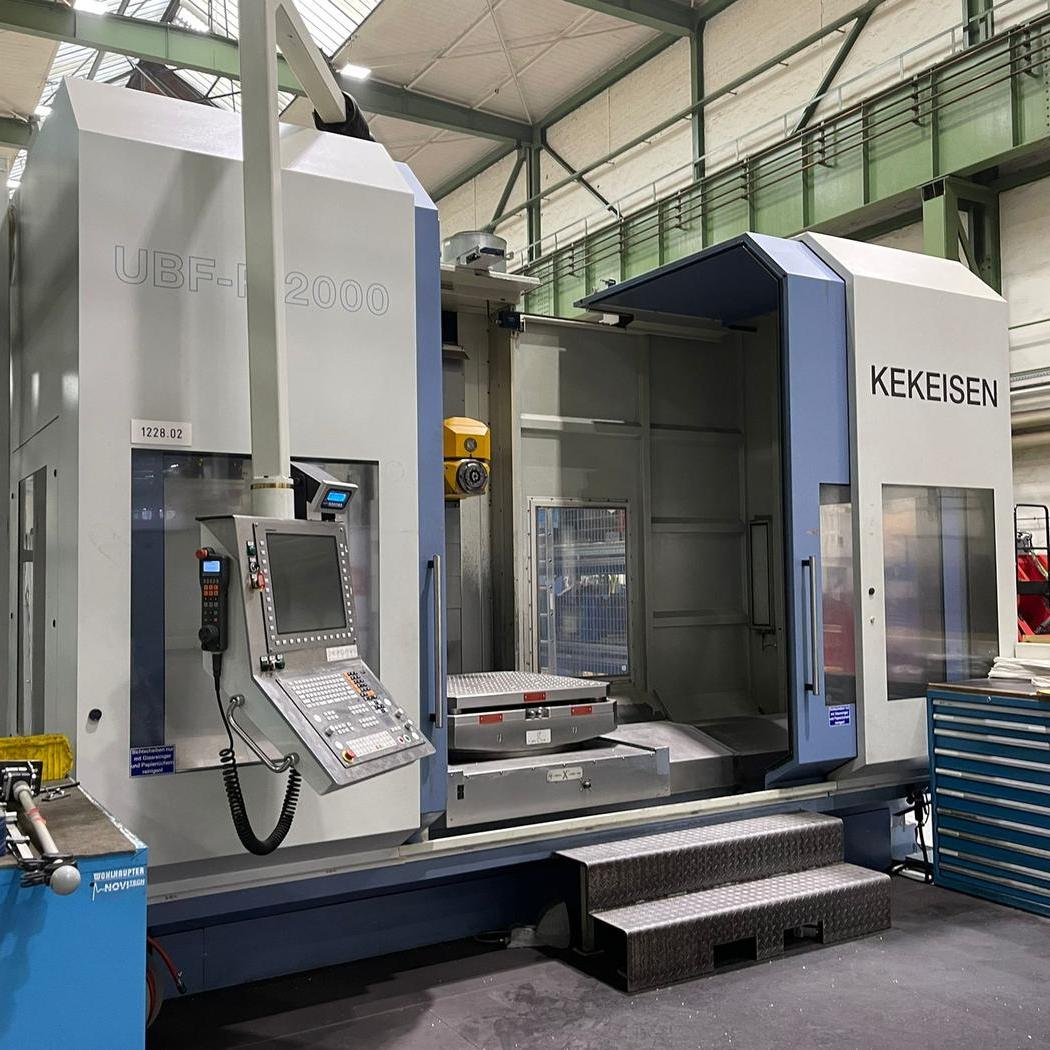

CNC Milling and Boring Machine - KEKEISEN UBF-R 2000/13

  • Travels (X/Y/Z): 2000/1200/1300mm
  • C-Axis (RT): 360°
  • Control: Heidenhain iTNC 530 HSCI
  • Table size of the rotary table: 1040x1040mm
  • Main drive: 30kW, max 1100Nm
  • Speed: Level 1 = 20-1250 rpm
  • Level 2 = 1250-4000 rpm
  • Feed: X,Y,Z = 0-8m/min; C: 0-1 min-1
  • Rapid traverse: X,Y,Z = 0-18m/min; C: 0-6 min-1
  • Drives: Siemens Simodrive
  • Tool changer: KWHE 60
  • Required space (LxWxH): 8600x6200x4800mm
  • Weight: 27000kg
  • Power requirement: 70 kVA
  • Voltage: 400 V
  • Type of current: three-phase current 50 Hz
  • Compressed air connection: 6bar

NOTE: Universal milling head with 5-fold spindle positioning included
