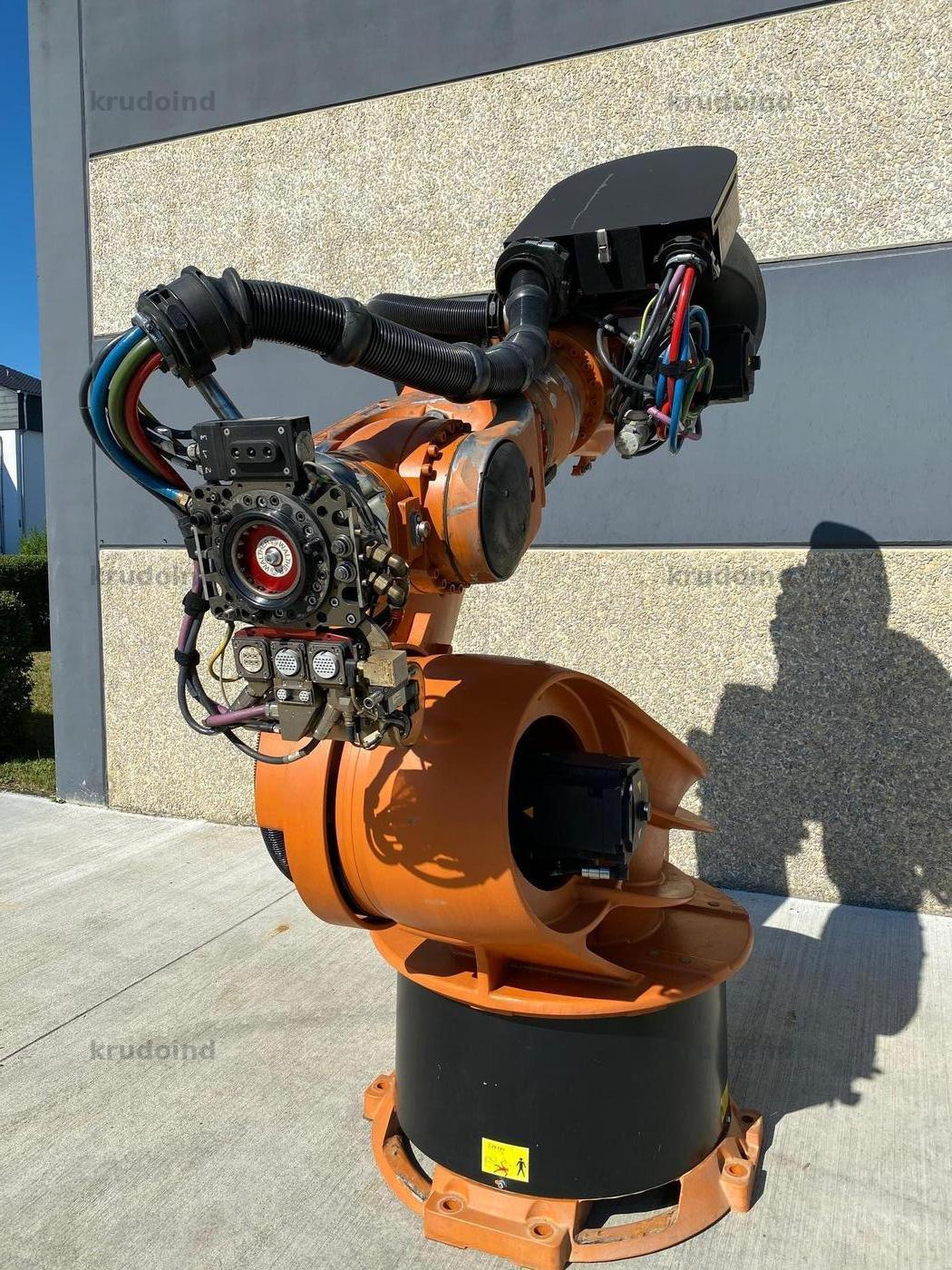

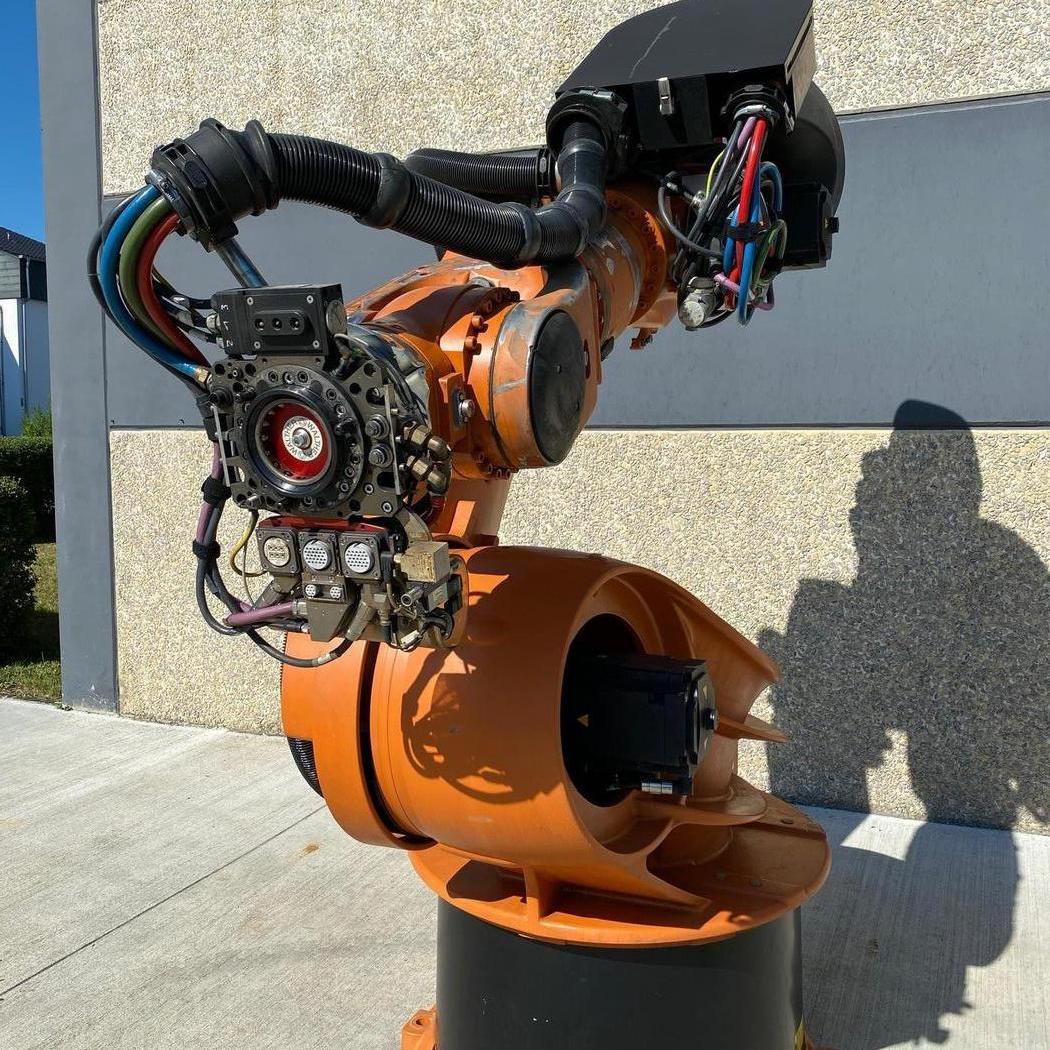

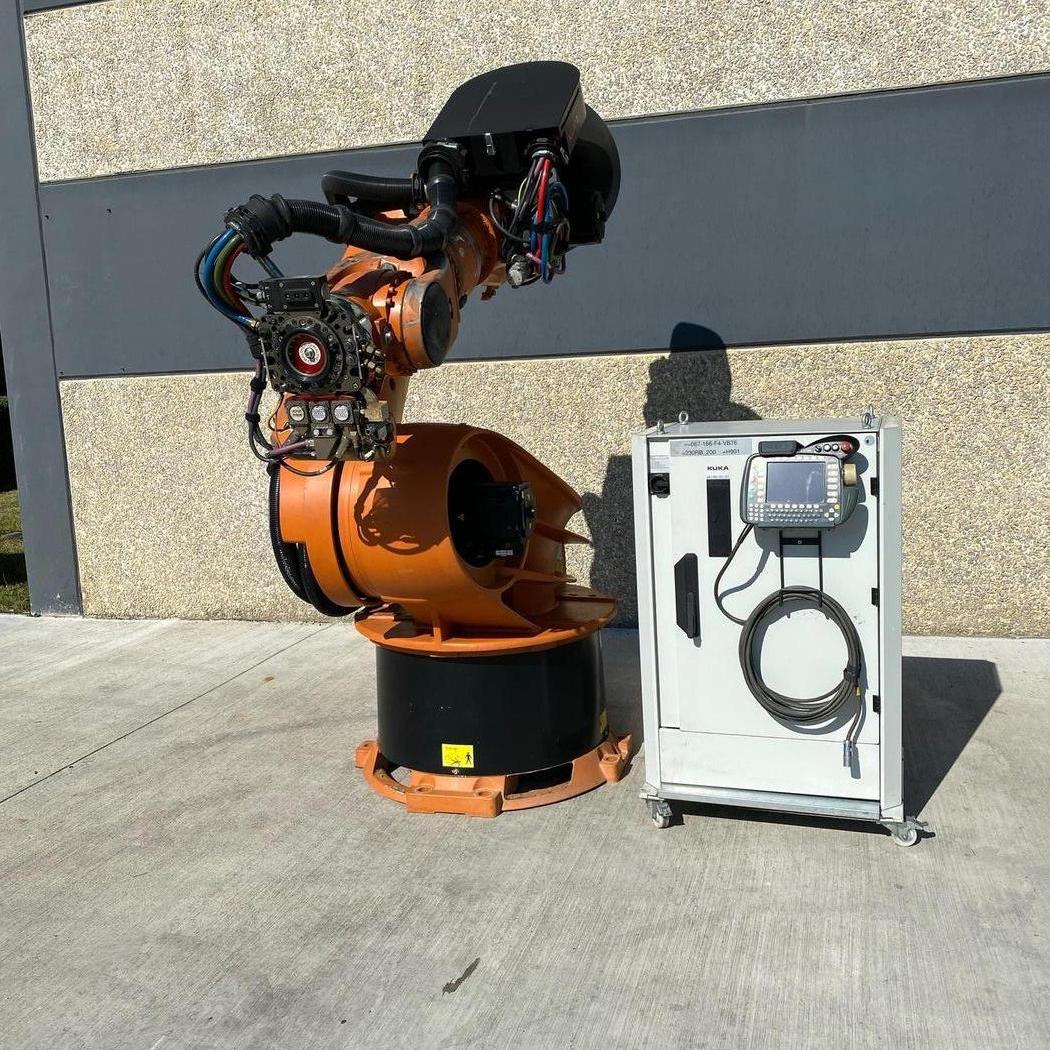

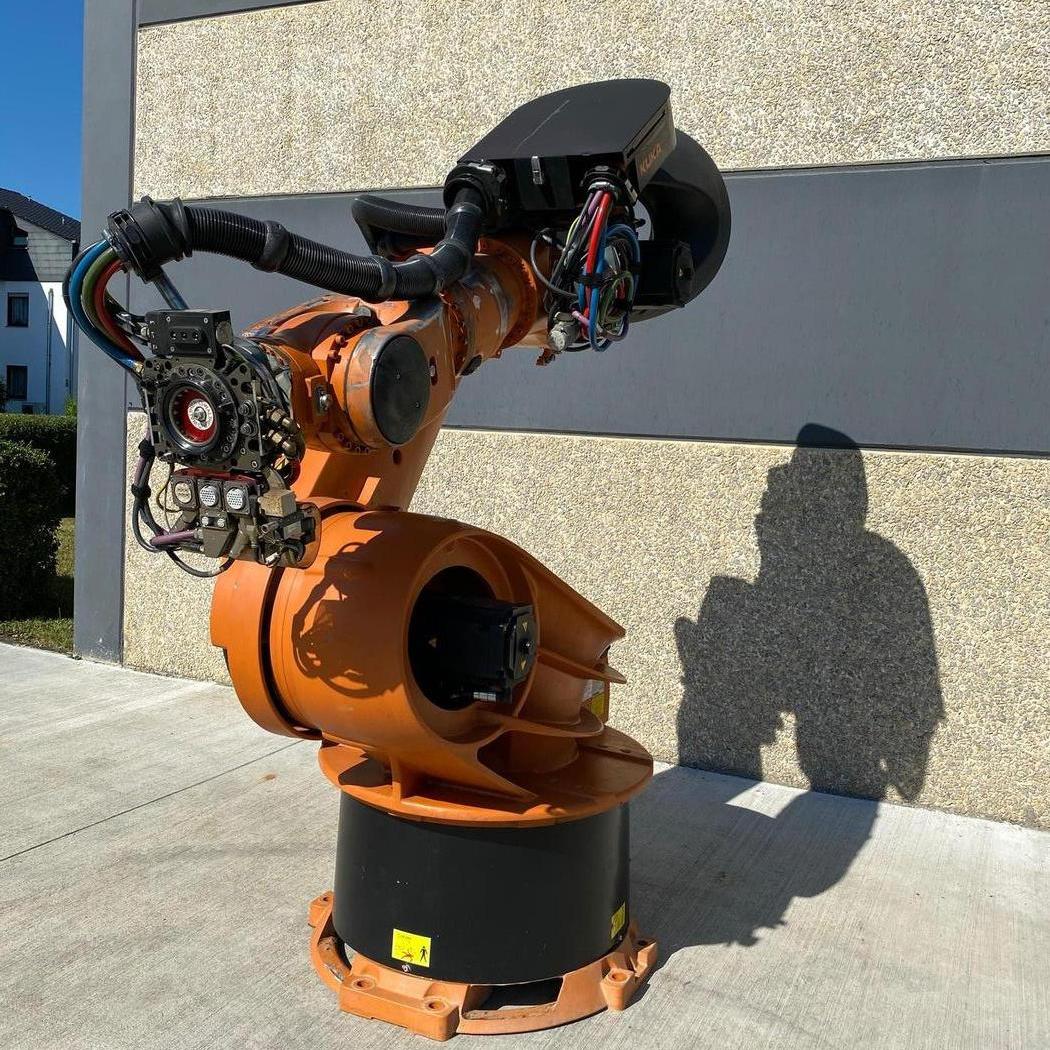

Machine Name:Handling Robot
Manufacturer:KUKA
Model:KR 360 L240-2
Year of Manufacture:2010
Machine Id:176
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of this particular machine.

Note: These specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! - You are invited to inspect the machines at any time by prior appointment.

Handling Robot
SOLD
Handling Robot
Handling Robot
Handling Robot

Description:

Maximum reach: 3326 mm

Number of axes: 6

Payload: 240kg

Supplementary load on arm / link arm / rotating column: 50/100/400 kg

Max. supplementary load on arm and link arm: 100 kg (Floor); 50 kg (Ceiling)

Total distributed load: 740kg

Variant: Foundry

Mounting position: Floor, ceiling

Positioning repeatability (ISO 9283): ±0.08 mm

Controller: KR C2

Temperature during operation: +10 °C to +55 °C

Connection: 13,5 kVA

Noise level < 75 dB

Robot footprint: 1240 mm x 1240 mm

Axis Range (Software):

  • Axis 1 (A 1): ± 185°
  • Axis 2 (A 2): + 110°/–40° (Floor); +50°/–40° (Ceiling)
  • Axis 3 (A 3): + 60°/–184°
  • Axis 4 (A 4): ± 350°
  • Axis 5 (A 5): ± 118°
  • Axis 6 (A 6): ± 350°

Weight (excl. controller) approx.: 2385kg

No. of available robots: 2
