Machine Name:Handling Robot
Manufacturer:KUKA
Model:KR 200 L170-3 comp
Year of Manufacture:2010
Machine Id:171
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of this particular machine.

Note: These specifications have been prepared by the best of our knowledge and therefore, we cannot be held liable for any errors or omissions! - You are invited to inspect the machines at any time by prior appointment.

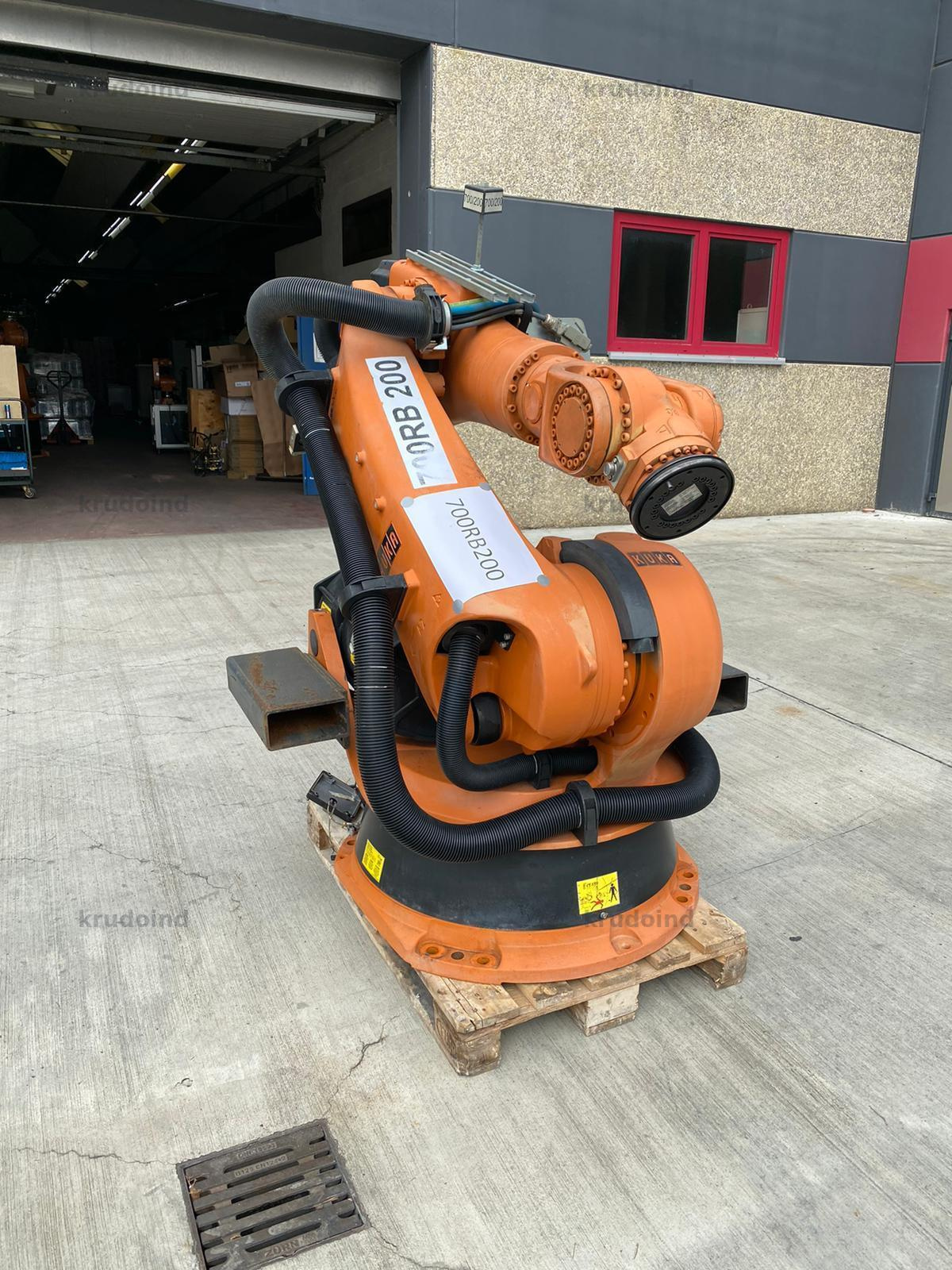

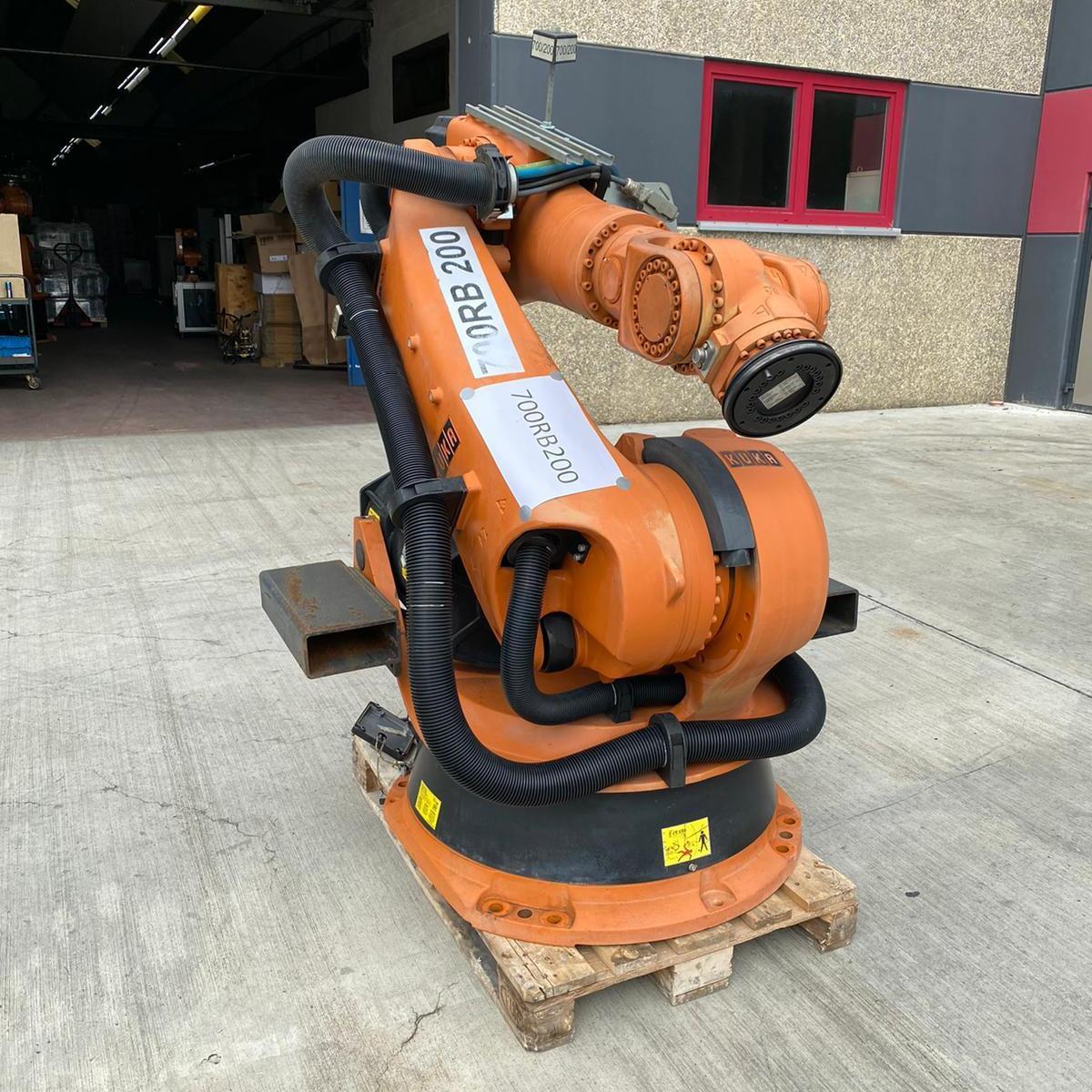

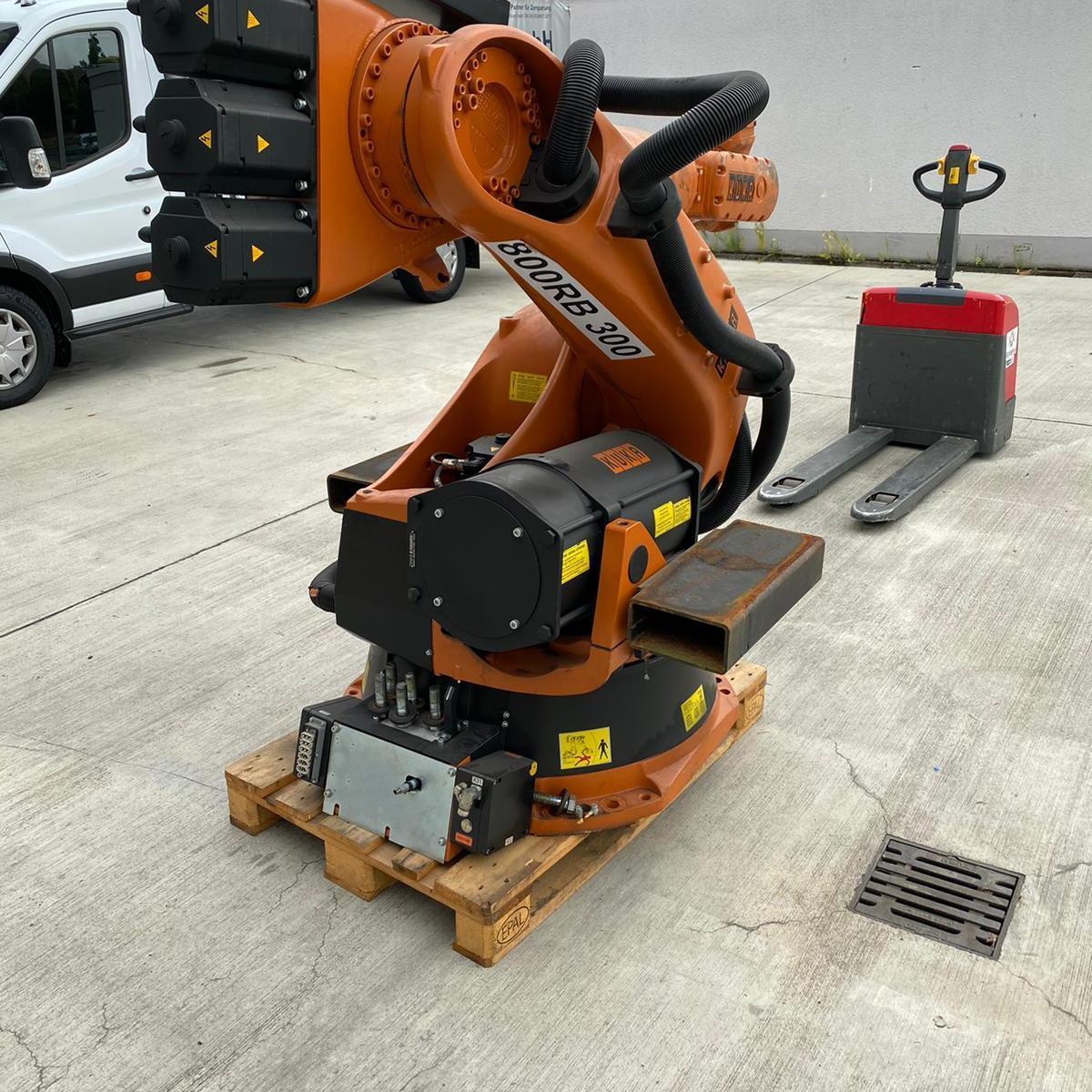

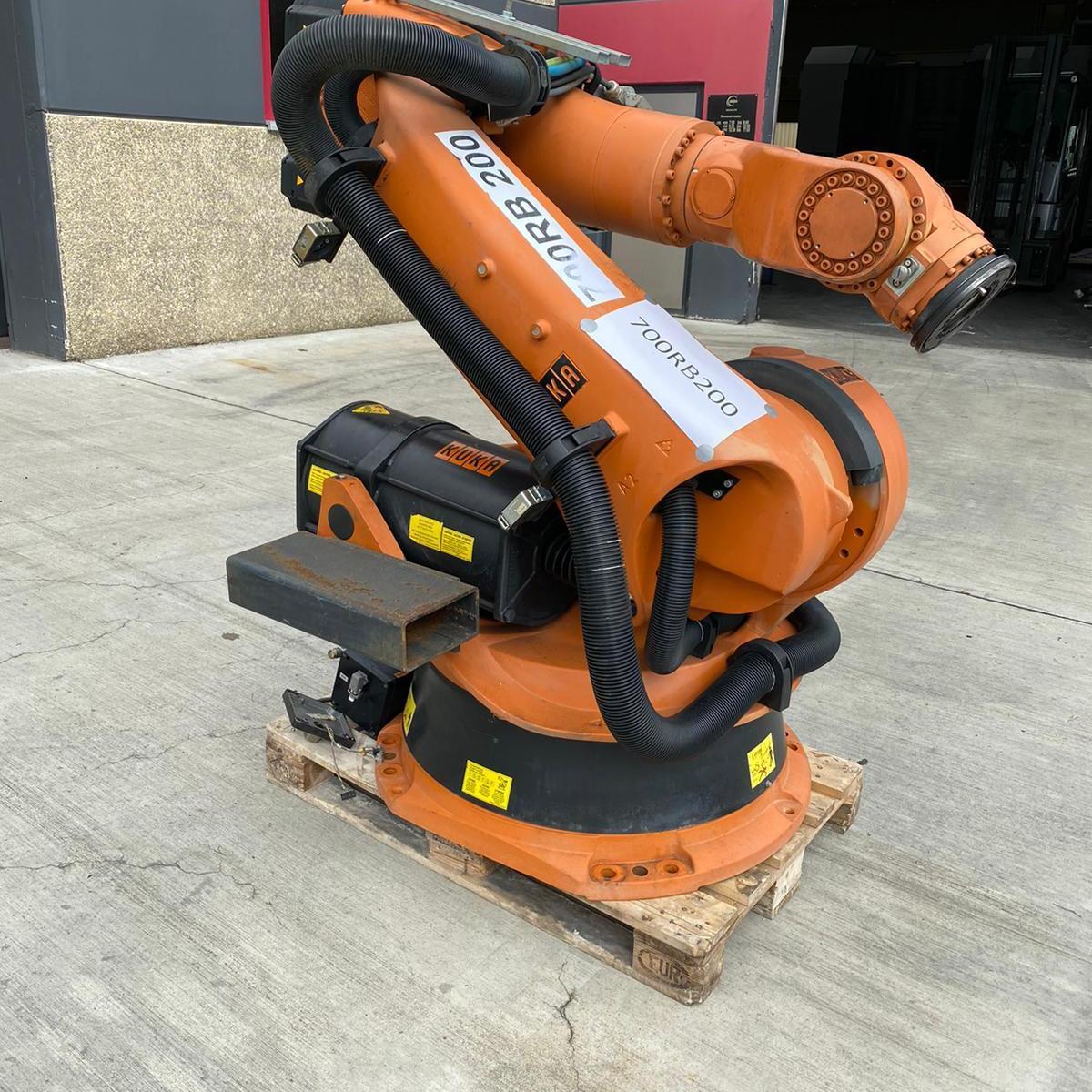

Handling Robot
SOLD
Handling Robot
Handling Robot
Handling Robot

Description:

Number of axes: 6

Payload: 170 kg

Supplementary load on arm / link arm / rotating column: 50/100/300 kg

Max. supplementary load on arm and link arm: 100 kg

Total distributed load: 570kg

Wrist variant: In-line wrist 200 kg

Mounting flange A 6: DIN ISO 9409--1--A160

Mounting position: Floor

Repeatability (ISO 9283): ± 0,15 mm

Controller: KR C2

Weight (excl. controller) approx.: 1165kg

Axis Range (Software):

  • Axis 1 (A 1): ± 185°
  • Axis 2 (A 2): + 0° / ---142°
  • Axis 3 (A 3): + 148° / ---120°
  • Axis 4 (A 4): ± 350°
  • Axis 5 (A 5): ± 120°
  • Axis 6 (A 6): ± 350°

No. of available robots: 4
