Sale Description

Product Types

Tempered Glass, Laminated Glass, Double Glazing Glass, and Triple Glazing Glass

Capacity

• Cutting: 650,000 m²/year
• Double Glazing: 200,000 m²/year
• Edging: 500,000 m²/year
• Tempering: 350,000 m²/year
• Laminating: 150,000 m²/year

Process

• Tempering: GLASTON FC Series 500 (2019)
• Cutting, Edge & Drilling: Intermac VERTMAX 2.6 (2019)
• Laminating: Hornos Industries Pujol LAM/PRO-TETRA KAM 50 428 (2019)
• Insulating Glass: BESTMAKINA (2019)
• Roller Coater: SORBINI SMARTCOATER MF Italy (2003)
• Horizontal Double Edger line + Neptun Washer: Bussetti Model F12 LINEA (2008)

DESCRIPTION:

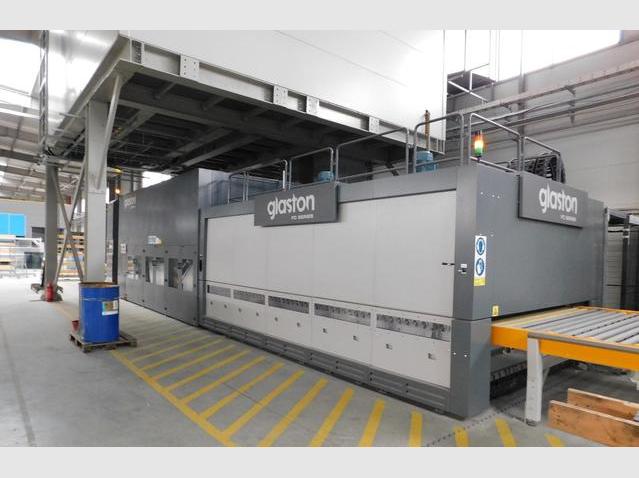

Tempering

• Machine brand: GLASTON
• Type: FC Series 500
• YOM: 2019
• Thickness: 3mm – 19mm
• Max. dimensions: 2400mm x 4800mm
• Features: Tempering, Heat Strengthening, iLook Technology

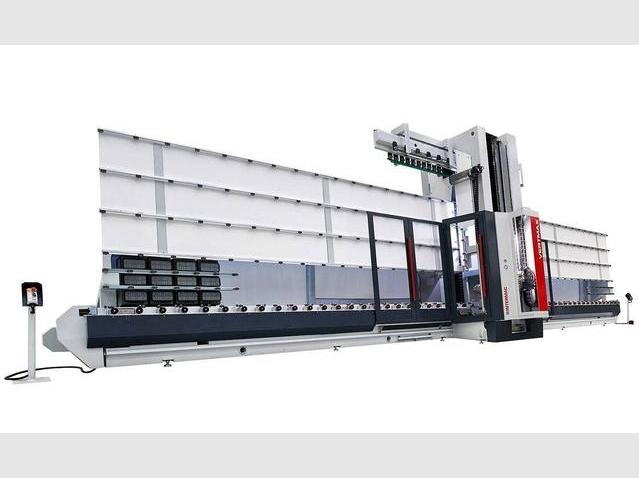

Cutting

• Machine brand: Intermac
• Type: VERTMAX 2.6 Vertical CNC Machining Center
• YOM: 2019
• Glass Type: Clear, Body Tinted, Hard and Soft Coated Float Glass, Laminated Glass
• Thickness: 3-19 mm
• Edge Deletion: Automatic Edge Deletion
• Max. Dimension: 3210mm x 6000mm
• Min. Dimension: 100mm x 100mm

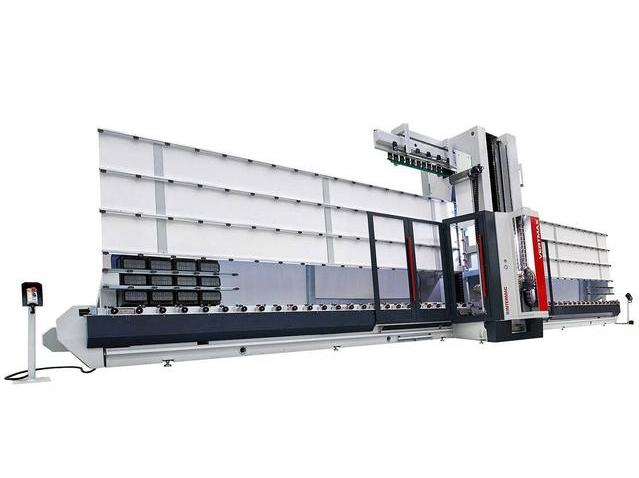

Edge & Drilling

• Machine brand: Intermac
• YOM: 2019
• Maximum machinable sheet size: 2500mm x 5000mm
• Minimum machinable sheet size: 500mm x 320mm
• Machinable glass thicknesses: min 4mm – max 15mm
• Features: Milling and grinding of both notches and openings in the inner part of the glass, Glossy and rough grinding, Boring

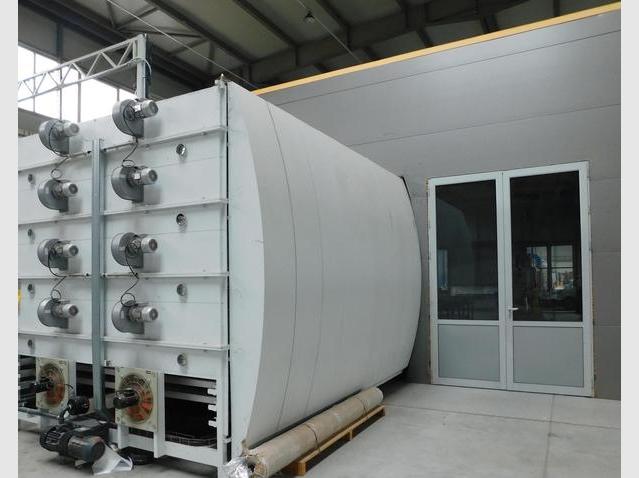

Laminating

• Machine brand: Hornos Industries Pujol
• Type: LAM/PRO-TETRA KAM 50 428
• YOM: 2019
• Thickness: 3mm – 19mm
• Max. dimensions: 2500mm x 5000mm
• Features: Laminating

Insulating Glass

• Machine brand: BestMakina
• YOM: 2019
• Max. dimensions: 2500mm x 5000mm
• Features: Double & Triple Glazing

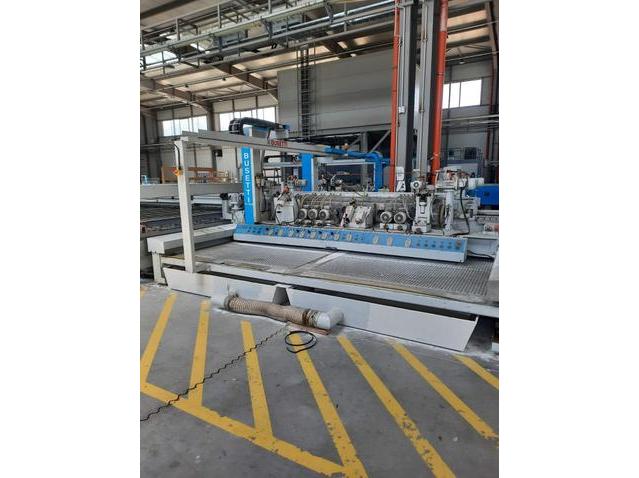

Horizontal Double Edger line + Neptun Washer

• Brand: Bussetti
• Model: F12 LINEA
• YOM: 2008

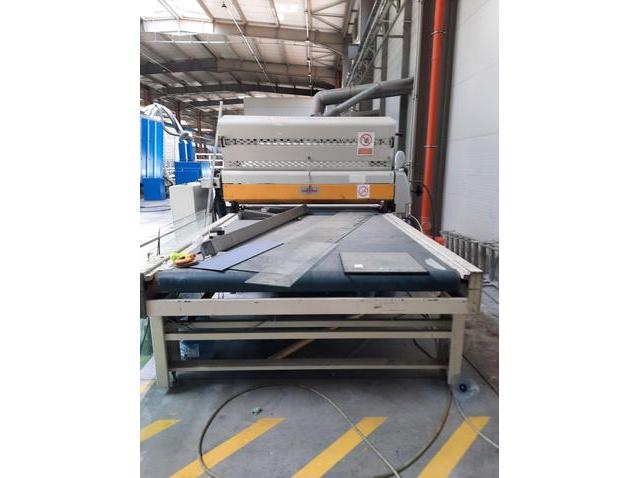

ROLLER COATER

• Brand: Sorbini
• Type: SMARTCOATER MF
• YOM: 2003
