Machine Name:Universal Cylindrical Grinding Machine
Manufacturer:STUDER
Model:S33cnc
Year of Manufacture:2017
Machine Id:57
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of this particular machine.

Universal Cylindrical Grinding Machine
SOLD
Universal Cylindrical Grinding Machine
Universal Cylindrical Grinding Machine
Universal Cylindrical Grinding Machine
Universal Cylindrical Grinding Machine

Description:

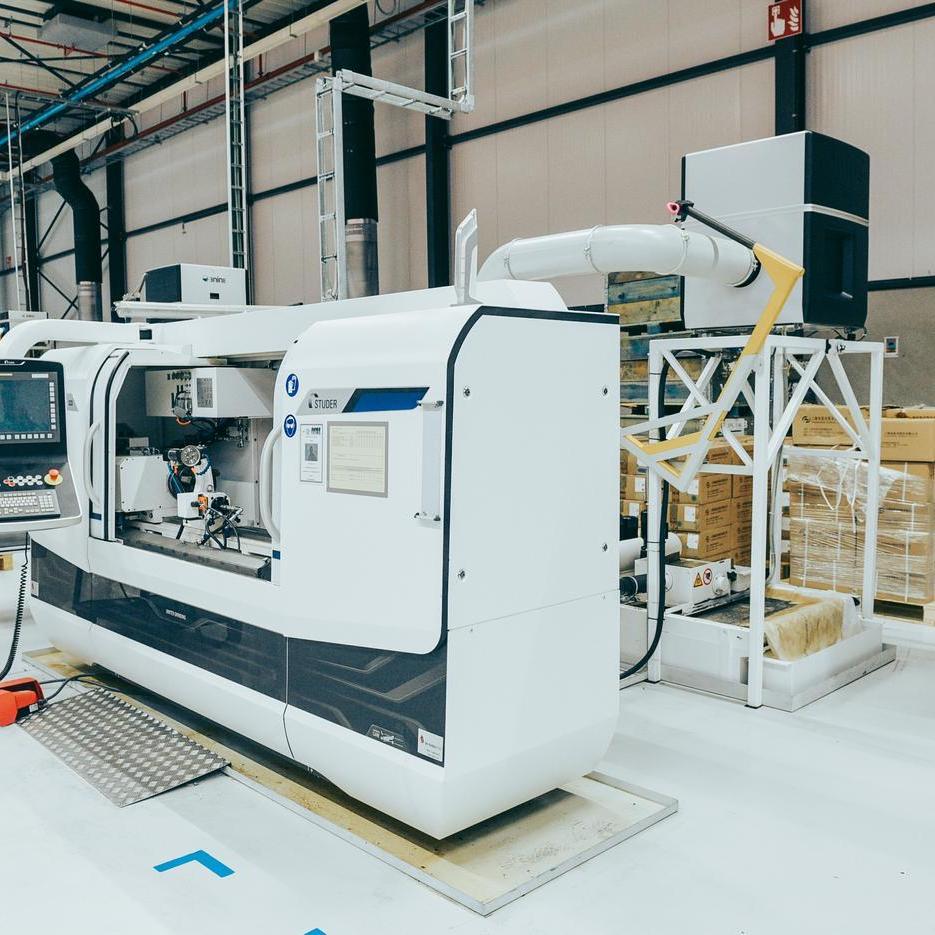

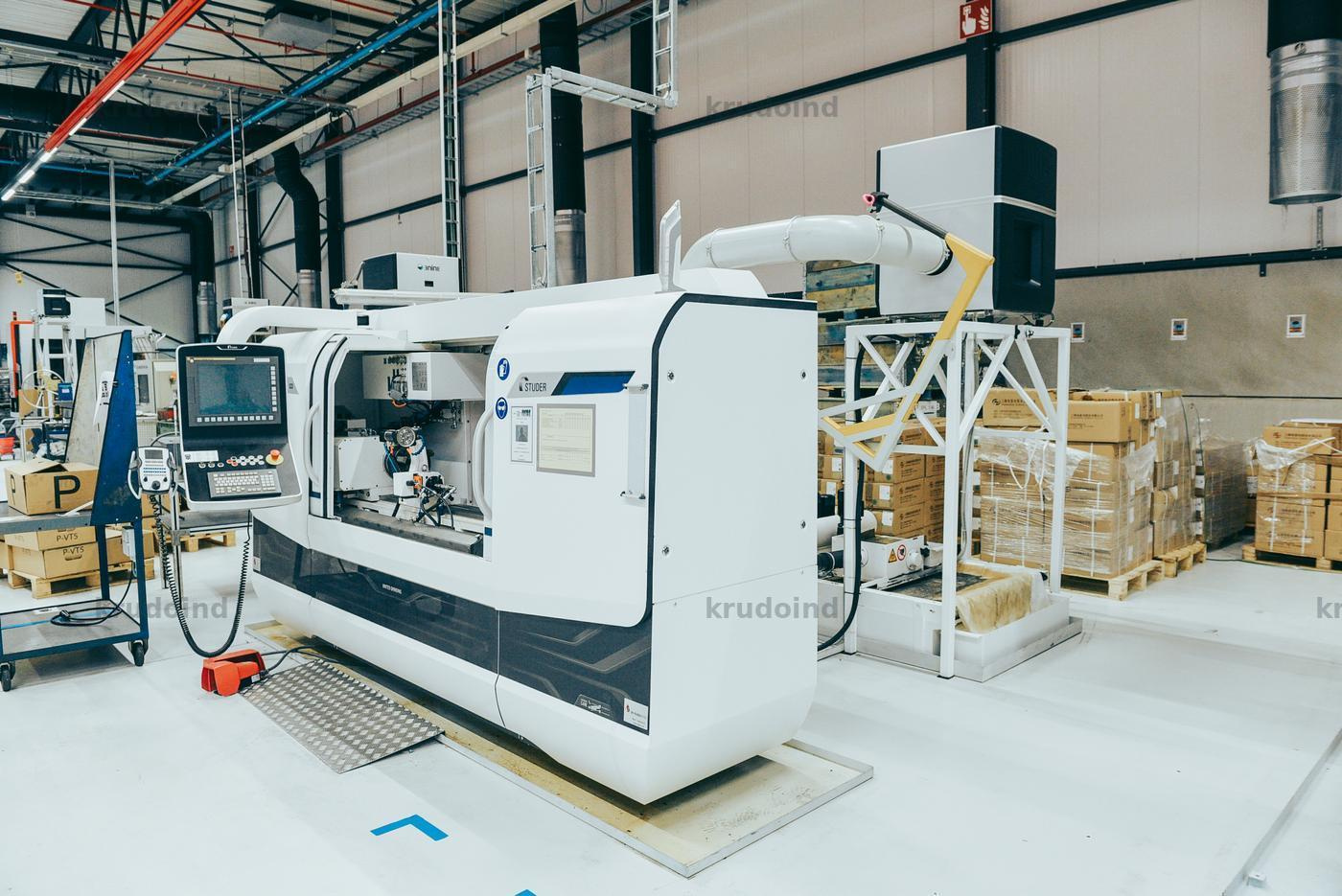

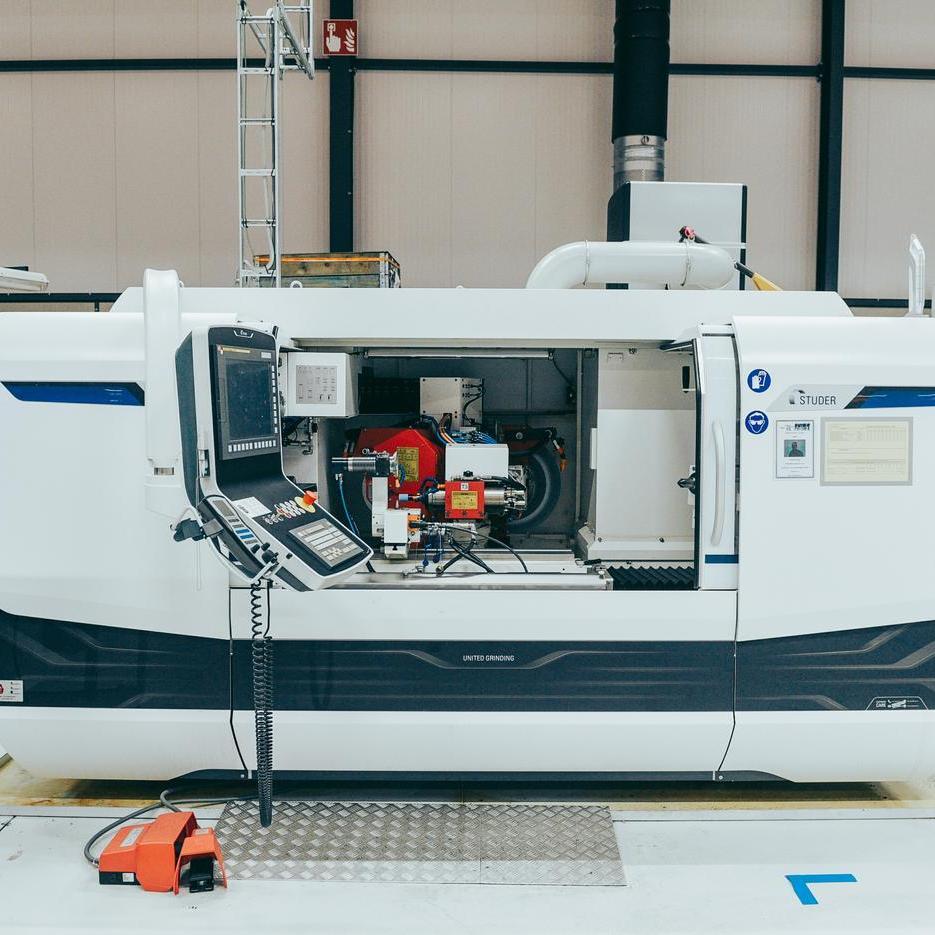

Universal Cylindrical Grinding Machine - STUDER S33cnc

  • Cross axis X (NC axis) 0 °:
  • Drive via AC servo motor and Ball screw. Travel: 285mm.
  • Programmable feed rate: 0.001-10'000 mm / min
  • Direct measuring system of the X-axis: Resolution 0.0001mm
  • Longitudinal axis Z (NC axis).
  • Drive via AC servo motor and Ball screw. Travel distance: 1150mm.
  • Direct measuring system of the Z-axis: Resolution 0.0001 mm
  • Programmable feed rate: 0.001-20'000mm / min
  • Automatic grinding headstock swivel axis (B-axis) with Hirth serration 1 °
  • Swivel range of the B-axis: -15 ° to + 225 °

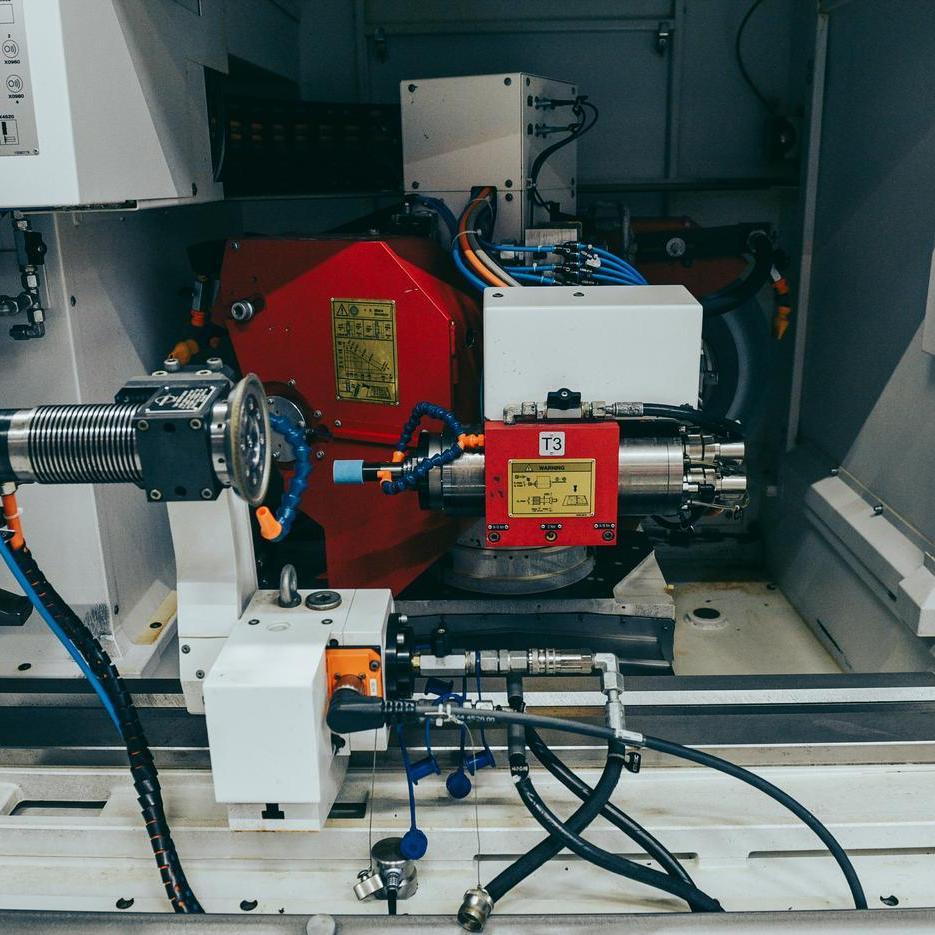

  • Internal grinding device for high-frequency spindles Ø 120mm
  • in tool position T3 (-65 ° inclined) Including connecting parts for connecting internal grinding spindles Ø120mm
  • Universal workpiece headstock ISO50 / Ø110mm
  • roller bearings, Spindle nose with internal mount ISO50 and external holder Ø110mm cylindrical, Spindle passage 50mm.
  • Workpiece drive: 4kW with AC servo motor

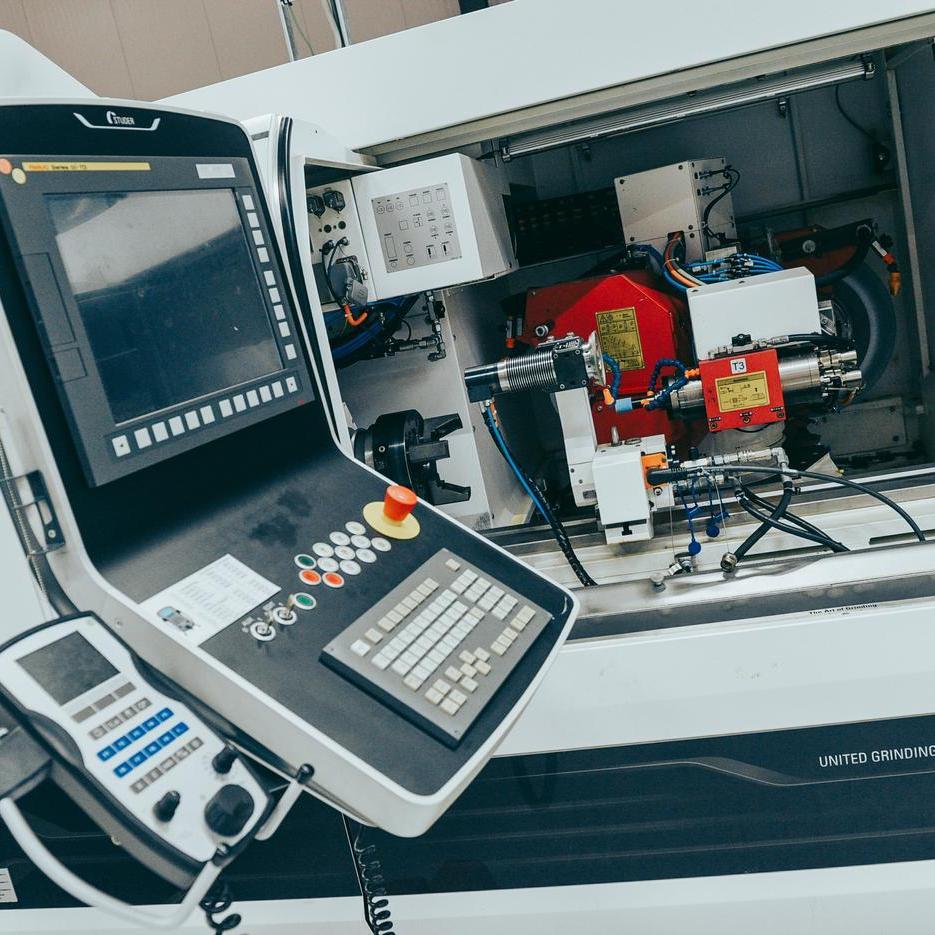

  • Control: Fanuc 0i –TF
  • Total connected load: 20 kVA
  • Space: 5500mm x 4000mm
  • Machine Weight: 9500 kg
