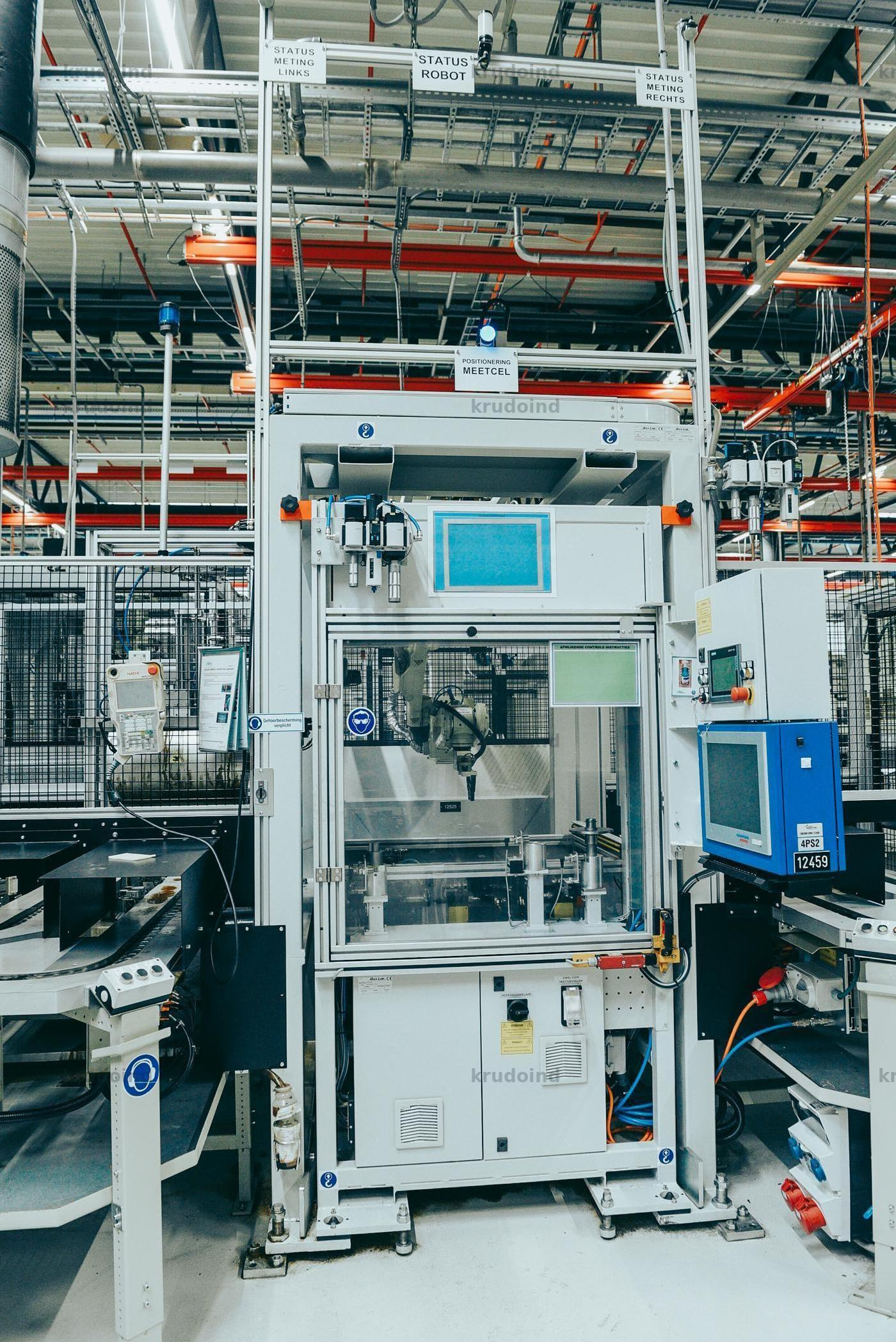

Machine Name:Inline Measuring Cell with Manipulator
Manufacturer:NACHI
Model:MC12S
Year of Manufacture:2017
Location:Sint-Truiden, Belgien
Machine Id:158
Disclaimer:

This offering is courtesy of the seller. It is offered as a convenience by KRUDO Industrial to its clients and is not intended to convey ownership of this particular machine.

Inline Measuring Cell with Manipulator
SOLD
Inline Measuring Cell with Manipulator
Inline Measuring Cell with Manipulator
Inline Measuring Cell with Manipulator

Description:

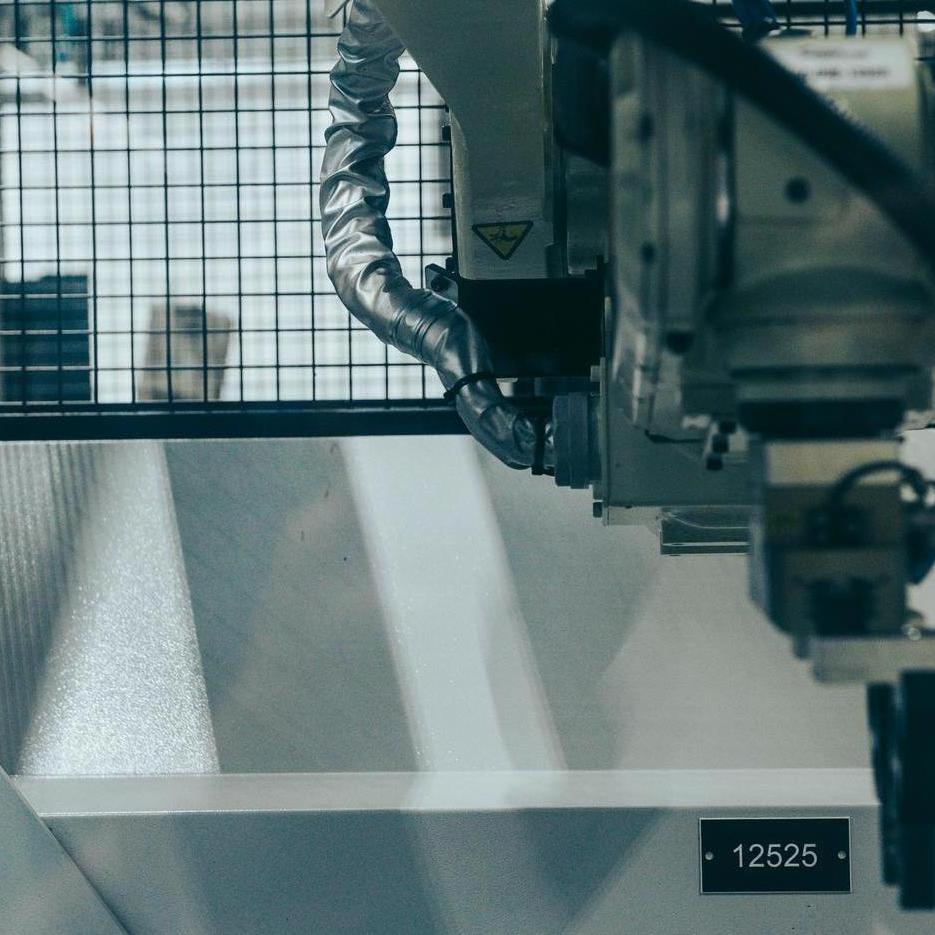

Fully automated Q inspection station which is used for 100% inline measurements of critical characteristics. Operator can monitor trends and Q-statistics with NACHI manipulators:



Number of axis: 6
Drive system: AC Servo System
Max. working envelope:
Axis: 1 ± 3.14 rad (± 180 °)
Axis 2 + 1.05 ~ - 2.53 rad (+ 60 ~ - 145 °)
Axis 3: +4.22~-2.69 rad(+242~-154 °)
Axis 4: ± 3.14 rad (± 180 °)
Axis 5: ± 2.42 rad (± 139 °)
Axis 6: ± 6.28 rad (± 360 °)
Max. pay load: 12 kg
Weight: 210 kg



#12525
